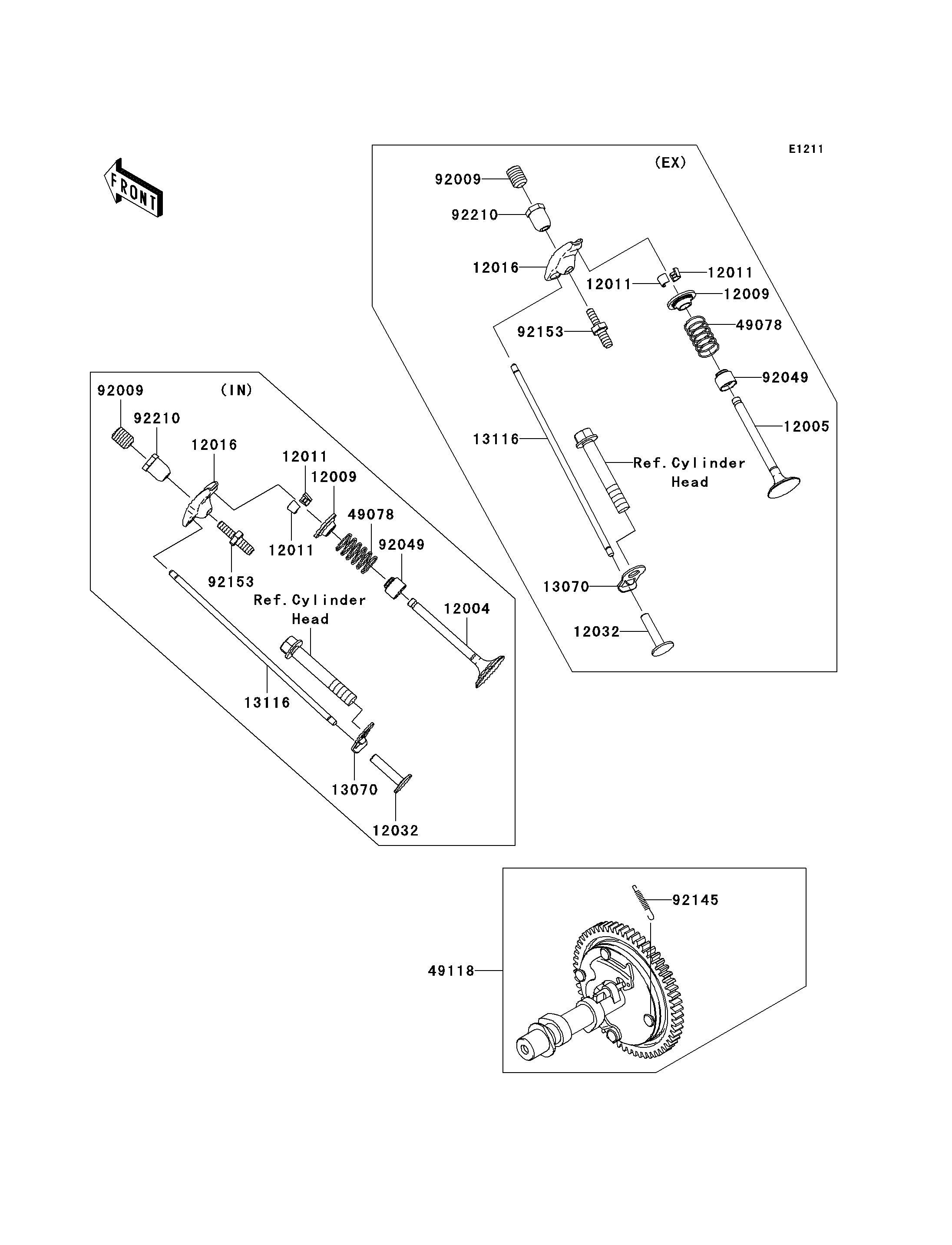

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12032
12032
13070
13070
13116
13116
49078
49078
49118
92009
92009
92049
92049
92145
92153
92153
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
VALVE-INTAKE | 12004 | 12004-7004 | 1 | ||
VALVE-EXHAUST | 12005 | 12005-7005 | 1 | ||
RETAINER-VALVE SPRING | 12009 | 12009-7002 | 2 | ||
COLLET | 12011 | 12011-2052 | 4 | ||
ARM-ROCKER | 12016 | 12016-7007 | 2 | ||
TAPPET | 12032 | 12032-7001 | 2 | ||
GUIDE,ROD-PUSH | 13070 | 13070-7012 | 2 | ||
ROD-PUSH | 13116 | 13116-7004 | 2 | ||
SPRING-ENGINE VALVE | 49078 | 49078-7003 | 2 | ||
CAMSHAFT-COMP | 49118 | 49118-7011 | 1 | ||
SCREW | 92009 | 92009-2341 | 2 | ||
SEAL-OIL | 92049 | 92049-7020 | 2 | ||
SPRING | 92145 | 92145-7001 | 1 | ||
BOLT | 92153 | 92153-7019 | 2 | ||
NUT,M6 | 92210 | 92210-7032 | 2 |
VALVE-INTAKE | |
REF # | 12004 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE-EXHAUST | |
REF # | 12005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RETAINER-VALVE SPRING | |
REF # | 12009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLET | |
REF # | 12011 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
ARM-ROCKER | |
REF # | 12016 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TAPPET | |
REF # | 12032 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE,ROD-PUSH | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
ROD-PUSH | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING-ENGINE VALVE | |
REF # | 49078 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAMSHAFT-COMP | |
REF # | 49118 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,M6 | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
