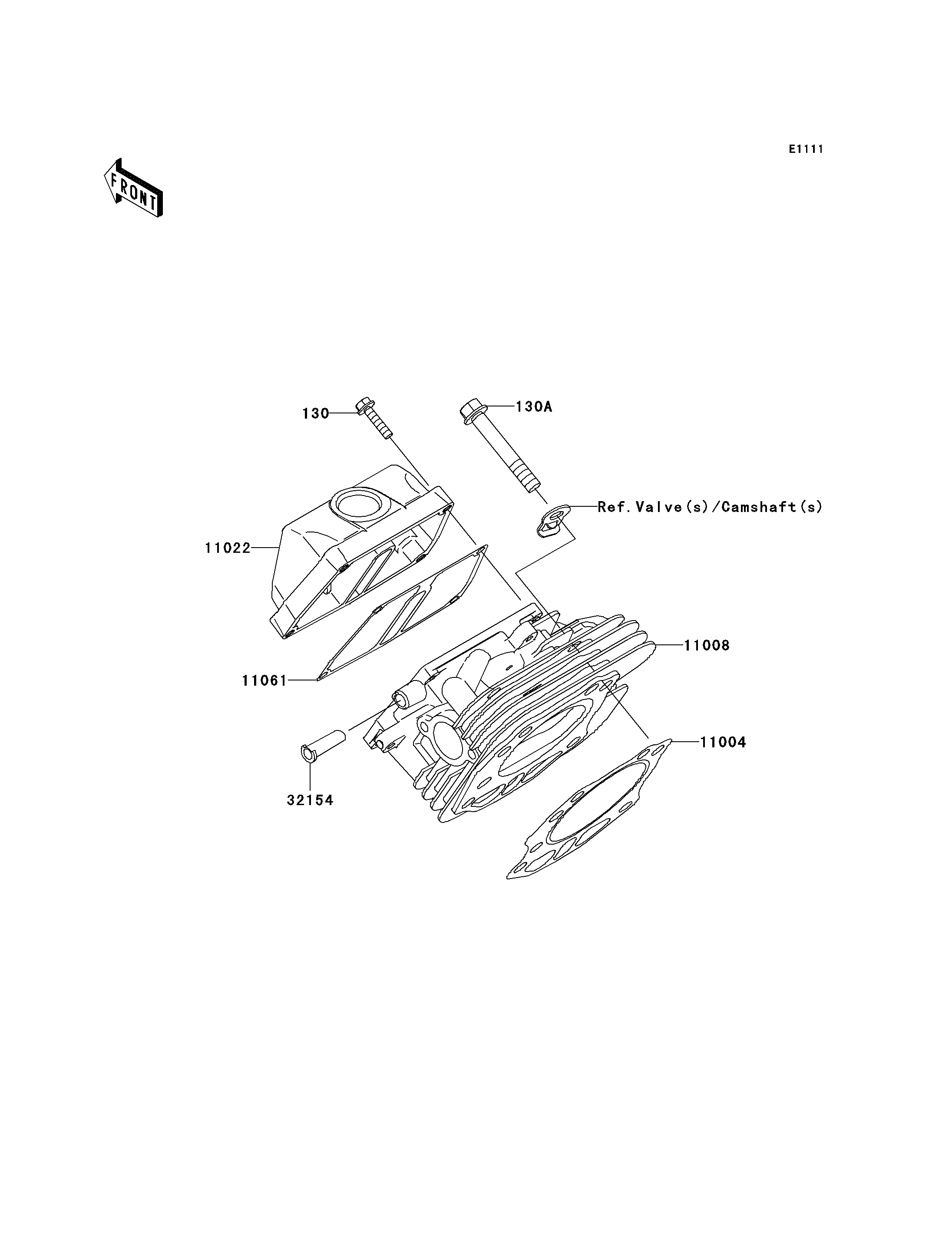

130
130A
11004
11008
11022
11061
32154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130AA0625 4
BOLT-FLANGED,10X65 130A 130CA1065 4
GASKET-HEAD 11004 11004-7017 1
HEAD-COMP-CYLINDER 11008 11008-7033 1
CASE-ROCKER 11022 11022-7014 1
GASKET,CASE-ROCKER 11061 11061-7041 1
PIPE 32154 32154-7008 1
