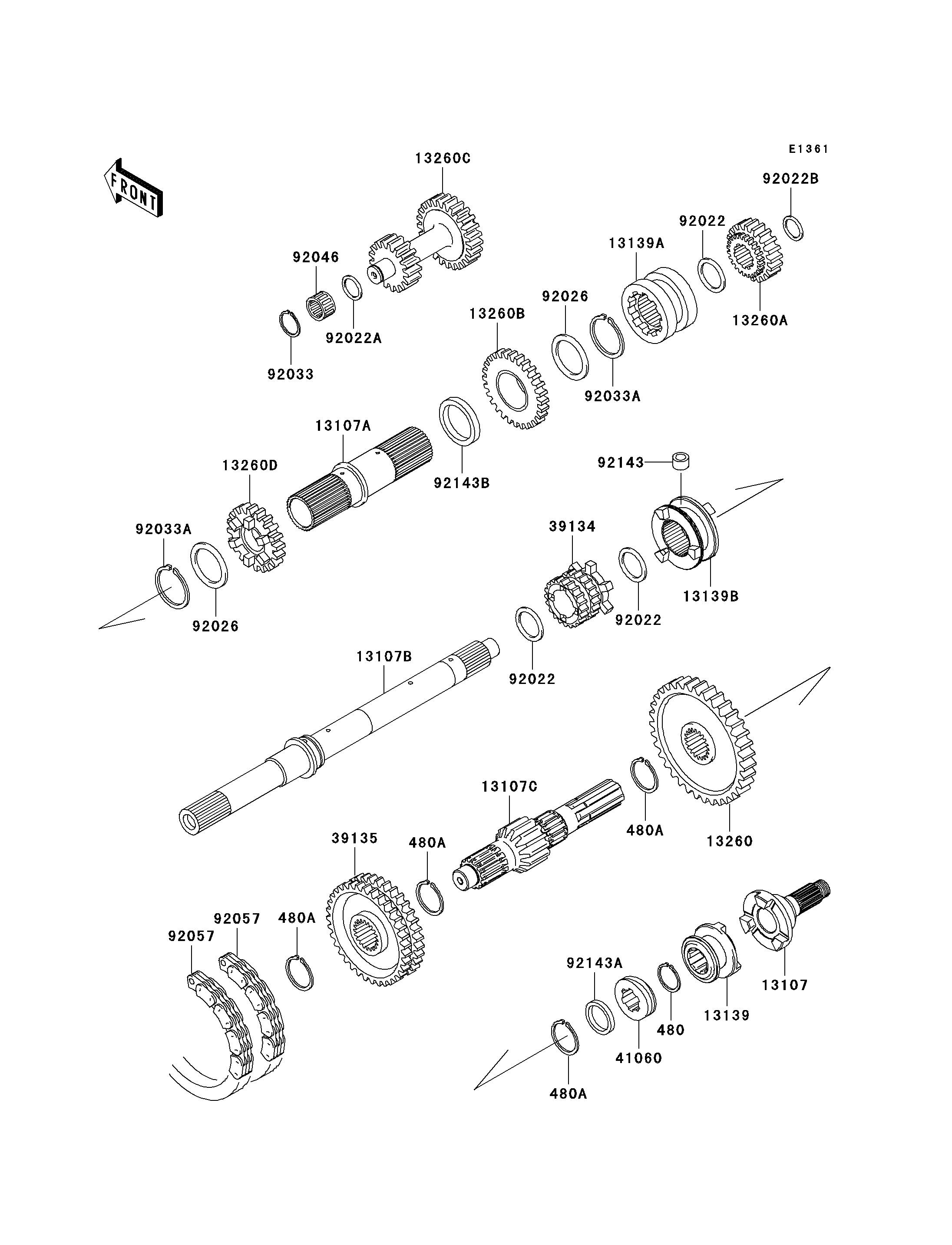

Mule 3010 Diesel 4X4 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
480
480A
480A
480A
480A
13107
13107A
13107B
13107C
13139
13139A
13139B
13260
13260A
13260B
13260C
13260D
39134
39135
41060
92022
92022
92022
92022A
92022B
92026
92026
92033
92033A
92033A
92046
92057
92057
92143
92143A
92143B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,25MM 480 480J2500 1
CIRCLIP-TYPE-C,30MM 480A 480J3000 4
SHAFT,2WD/4WD 13107 13107-0106 1
SHAFT,INPUT OUTER 13107A 13107-1309 1
SHAFT,INPUT 13107B 13107-1512 1
SHAFT,OUTPUT,14T 13107C 13107-1517 1
SHIFTER,2WD/4WD 13139 13139-0010 1
SHIFTER,SPEED,HI/LOW 13139A 13139-1069 1
SHIFTER,FR/RR 13139B 13139-1072 1
GEAR,OUTPUT REVERSE,51T 13260 13260-1288 1
GEAR,INPUT REDUCTION,20T 13260A 13260-1289 1
GEAR,INPUT REDUCTION,28T 13260B 13260-1290 1
GEAR,REDUCTION,17T&25T 13260C 13260-1291 1
GEAR,INPUT 28T 13260D 13260-1462 1
SPROCKET-DRIVE,20T 39134 39134-1055 1
SPROCKET-DRIVEN,41T 39135 39135-1055 1
GEAR-METER SCREW 41060 41060-1147 1
WASHER,25.3X33X1 92022 92022-1109 3
WASHER,17.3X28X1 92022A 92022-255 1
WASHER,17.3X30X1.4 92022B 92022-270 1
SPACER,35.3X44X0.5 92026 92026-1375 2
RING-SNAP 92033 92033-032 1
RING-SNAP 92033A 92033-1269 2
BEARING-NEEDLE,K17X23X13.8 92046 92046-1184 1
CHAIN,REVERSE,81RH2520,54L 92057 92057-1364 2
COLLAR,8X14X10.5 92143 92143-1497 1
COLLAR,25X32X4.5 92143A 92143-1597 1
COLLAR 92143B 92143-1599 1
