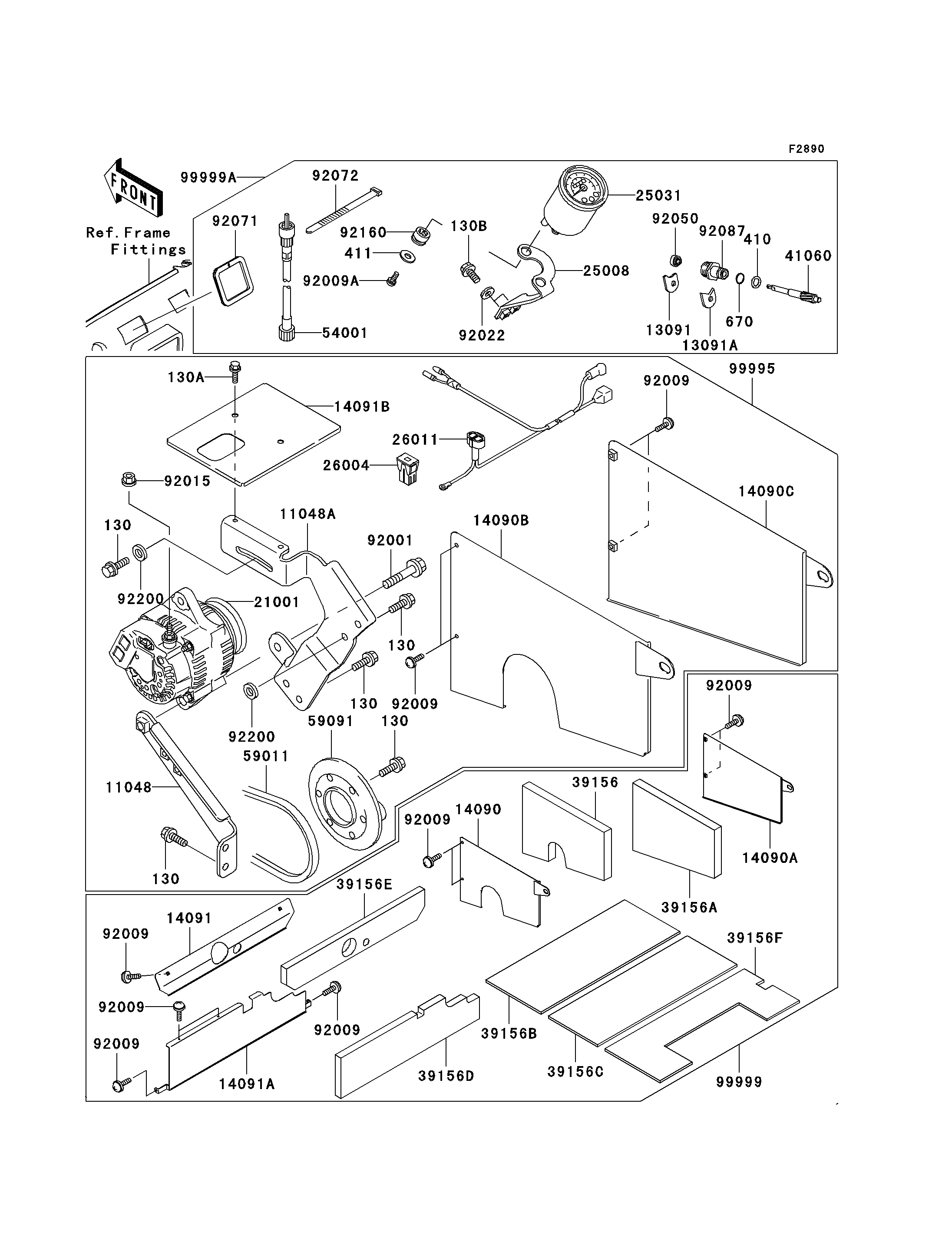

Parts Diagrams |
11048
11048
11048A
11048A
13091
13091
13091A
13091A
14090
14090
14090A
14090A
14090B
14090B
14090C
14090C
14091
14091
14091A
14091A
14091B
14091B
21001
21001
25008
25008
25031
25031
26004
26004
26011
26011
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
41060
41060
54001
54001
59011
59011
59091
59091
92001
92001
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92022
92022
92050
92050
92071
92071
92072
92072
92087
92087
92160
92160
92200
92200
92200
92200
99995
99995
99999
99999
130
130
130
130
130
130
130
130
130
130
130A
130A
130B
130B
410
410
411
411
670
670
99999A
99999A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ENGINE,LWR | 11048 | 11048-1243 | 1 | ||
| BRACKET,GENERATOR | 11048A | 11048-1244 | 1 | ||
| HOLDER,T=2.3 | 13091 | 13091-1008 | 1 | ||
| HOLDER,T=3.2 | 13091A | 13091-1009 | 1 | ||
| COVER,ENCLOSURE,LH | 14090 | 14090-1260 | 1 | ||
| COVER,ENCLOSURE,RH | 14090A | 14090-1261 | 1 | ||
| COVER,ENCLOSURE,LH | 14090B | 14090-1354 | 1 | ||
| COVER,ENCLOSURE,RH | 14090C | 14090-1355 | 1 | ||
| COVER,SEAT BACK | 14091 | 14091-1237 | 1 | ||
| COVER,SEAT UNDER | 14091A | 14091-1359 | 1 | ||
| COVER,GENERATOR | 14091B | 14091-1377 | 1 | ||
| GENERATOR | 21001 | 21001-1129 | 1 | ||
| BRACKET-METER | 25008 | 25008-1228 | 1 | ||
| METER-ASSY,MPH | 25031 | 25031-1190 | 1 | ||
| FUSE-ASSY,50A | 26004 | 26004-1096 | 1 | ||
| WIRE-LEAD,GENERATOR | 26011 | 26011-1758 | 1 | ||
| PAD,ENCLOSURE COVER,LH | 39156 | 39156-1301 | 1 | ||
| PAD,ENCLOSURE COVER,RH | 39156A | 39156-1302 | 1 | ||
| PAD,CARRIER,FR | 39156B | 39156-1304 | 1 | ||
| PAD,CARRIER,CNT | 39156C | 39156-1305 | 1 | ||
| PAD,SEAT UNDER | 39156D | 39156-1678 | 1 | ||
| PAD,SEAT BACK | 39156E | 39156-1679 | 1 | ||
| PAD,CARRIER,RR | 39156F | 39156-1680 | 1 | ||
| GEAR-METER SCREW | 41060 | 41060-1148 | 1 | ||
| CABLE-SPEEDOMETER | 54001 | 54001-1135 | 1 | ||
| BELT | 59011 | 59011-2056 | 1 | ||
| PULLEY | 59091 | 59091-2053 | 1 | ||
| BOLT,BLACK,10X47 | 92001 | 92001-1522 | 1 | ||
| SCREW,6X16 | 92009 | 92009-1621 | 14 | ||
| SCREW,5X12 | 92009A | 92009-3740 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| WASHER,6.5X16X1.0 | 92022 | 92022-1093 | 2 | ||
| SEAL-OIL | 92050 | 92050-075 | 1 | ||
| GROMMET | 92071 | 92071-7504 | 1 | ||
| BAND,L=140 | 92072 | 92072-1293 | 4 | ||
| BUSHING-METER GEAR | 92087 | 92087-010 | 1 | ||
| DAMPER | 92160 | 92160-1461 | 2 | ||
| WASHER,8.5X20X2.3 | 92200 | 92200-1055 | 3 | ||
| KIT.,ALTERNATOR | 99995 | 99995-1481 | 1 | ||
| KIT.,ENCLOSURE | 99999 | 99999-1071 | 1 | ||
| BOLT-FLANGED,8X20 | 130 | 130BA0820 | 10 | ||
| BOLT-FLANGED,6X8 | 130A | 130BB0608 | 2 | ||
| BOLT-FLANGED,6X14 | 130B | 130BB0614 | 2 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| WASHER-PLAIN,8MM | 411 | 411B0800 | 2 | ||
| O RING,10MM | 670 | 670D1510 | 1 | ||
| KIT.,SPEEDOMETER | 99999A | 99999-7503 | 1 |
