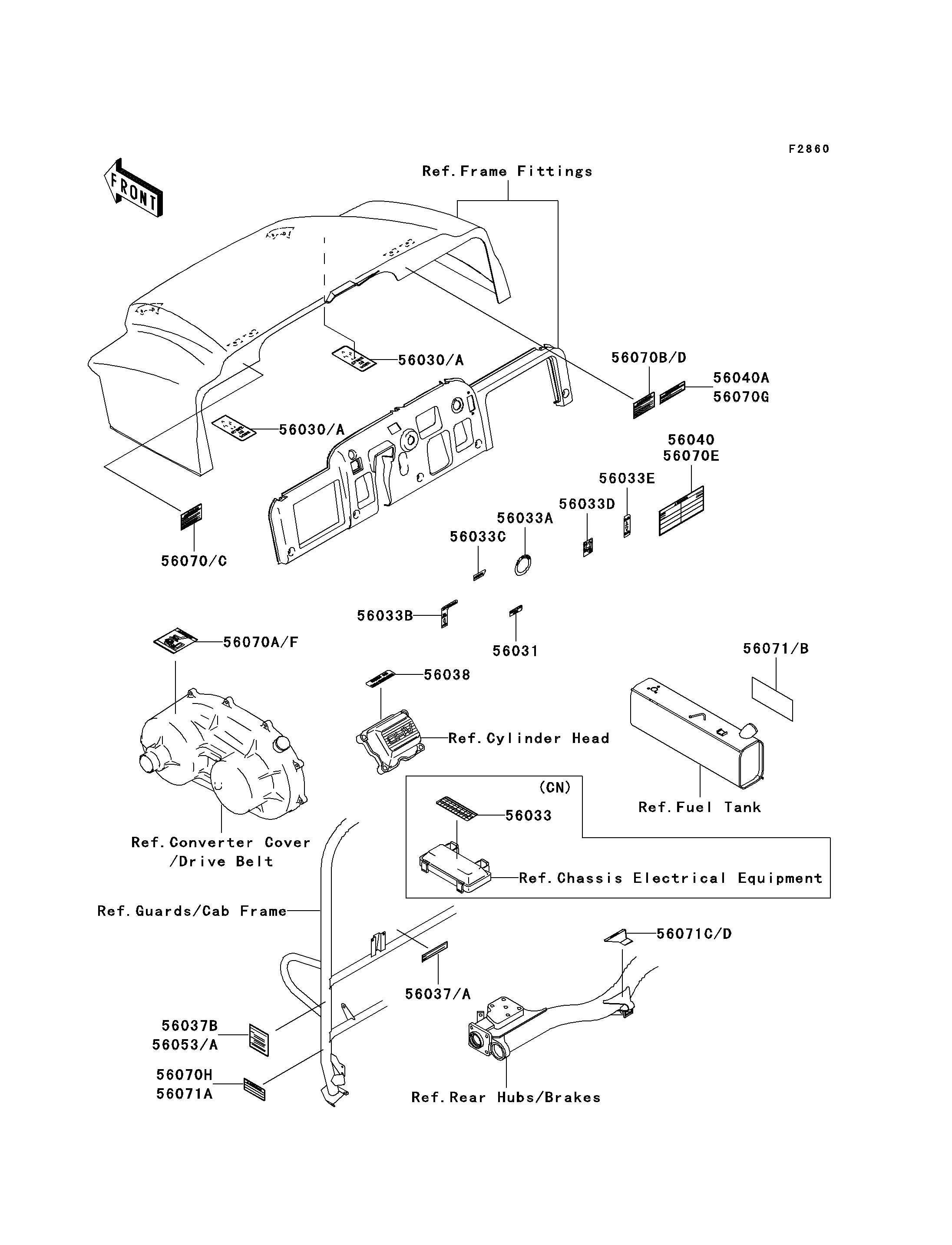

2008 Mule™ 3010 4X4 - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56031
56033A
56033B
56033C
56033D
56033E
56037
56038
56040
56040A
56053A
56070
56070A
56070B
56070H
56071
56071C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,BONNET OPERATION 56030 56030-1240 2
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION,ON/OFF 56033A 56033-0162 1
LABEL-MANUAL,DIFF MODE 56033B 56033-1183 1
LABEL-MANUAL,IGNITION 56033C 56033-1184 1
LABEL-MANUAL,SHIFT 56033D 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033E 56033-1187 1
LABEL-SPECIFICATION,CARGO BED 56037 56037-1576 1
LABEL-BRAND 56038 56038-2782 1
LABEL-WARNING,GENERAL 56040 56040-1339 1
LABEL-WARNING,SHIFT CAUTION 56040A 56040-1342 1
LABEL-SPECIFICATION,TIRE 56053A 56053-7518 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL-WARNING,BED RAISED 56070H 56070-7515 1
LABEL-WARNING,GASOLINE 56071 56071-7501 1
LABEL-WARNING,TRAILER HITCH 56071C 56071-7511 1
LABEL,BONNET OPERATION 56030A 56030-1246 2 CN
LABEL-MANUAL,FUSE 56033 56033-0020 1 CN
LABEL-SPECIFICATION,CARGO BED 56037A 56037-1903 1 CN
LABEL-SPECIFICATION,TIRE 56037B 56037-1904 1 CN
LABEL,OFF-HIGHWAY(FRENCH) 56070C 56070-0055 1 CN
LABEL-WARNING,BONNET OPERATION 56070D 56070-0058 1 CN
LABEL,GENERAL(FRENCH) 56070E 56070-1206 1 CN
LABEL-WARNING,HOT SURFACES 56070F 56070-1207 1 CN
LABEL-WARNING,SHIFT CAUTION 56070G 56070-1219 1 CN
LABEL,BED RAISED(FRENCH) 56071A 56071-7504 1 CN
LABEL,GASOLINE(FRENCH) 56071B 56071-7505 1 CN
LABEL-WARNING,TRAILER HITCH 56071D 56071-7512 1 CN
