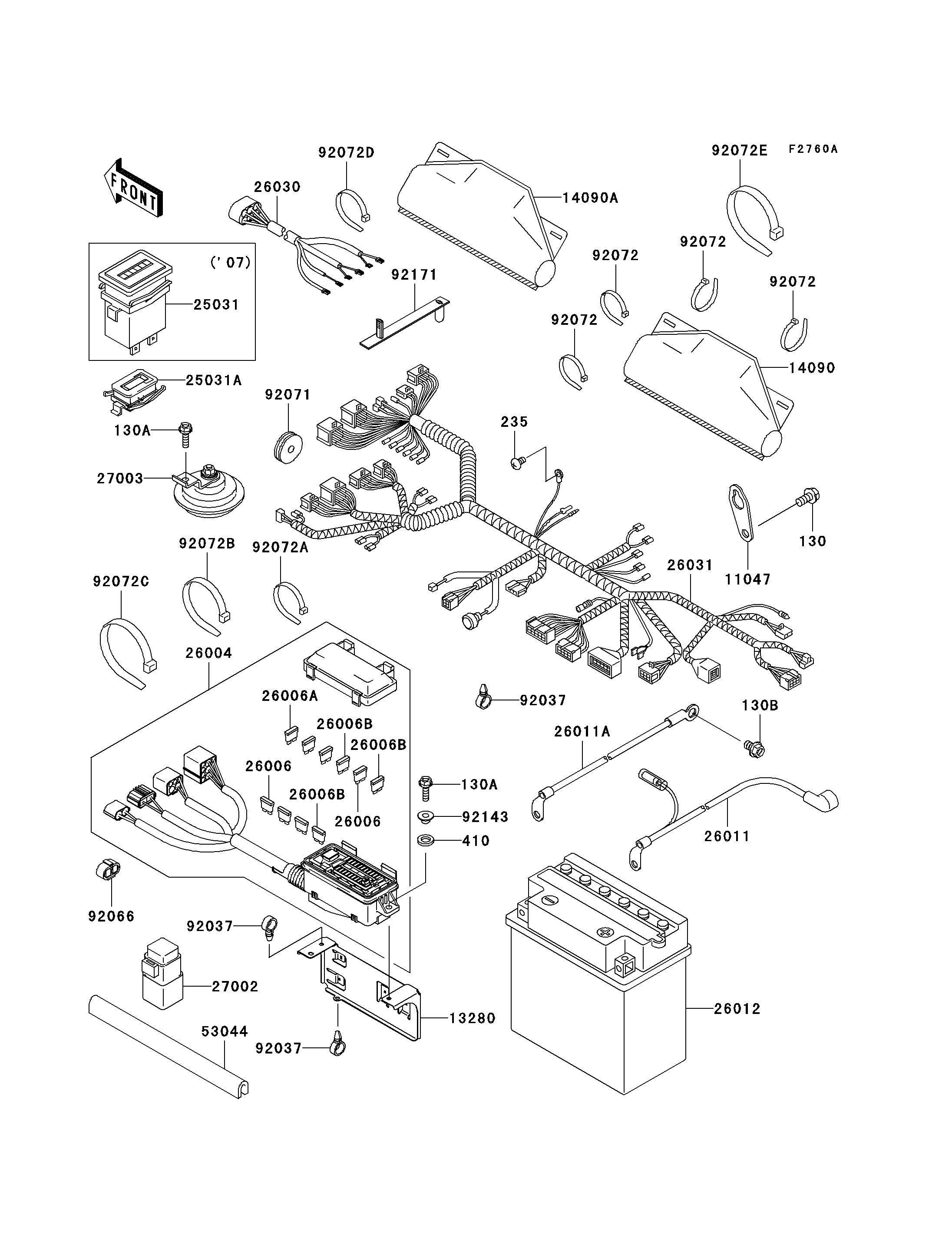

2008 Mule™ 3010 4X4 - Chassis Electrical Equipment(E7F/E8F)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130B
235
410
11047
13280
14090
14090A
25031A
26004
26006
26006
26006A
26006B
26006B
26006B
26011
26011A
26012
26030
26031
27002
27003
53044
92037
92037
92037
92066
92071
92072
92072
92072
92072
92072A
92072B
92072C
92072D
92072E
92143
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130BA0816 1
BOLT-FLANGED,6X20 130A 130BB0620 3
BOLT-FLANGED,8X12 130B 130BB0812 1
SCREW-PAN-WP-CROS,6X10 235 235AA0610 1
WASHER-PLAIN-SMALL,10MM,BLACK 410 410F1000 2
BRACKET,F.BLACK 11047 11047-2056-9H 1
HOLDER 13280 13280-1220 1
COVER,COUPLER 14090 14090-1331 1
COVER,COUPLER 14090A 14090-1611 1
METER-ASSY,HOUR 25031A 25031-7506 1
FUSE-ASSY 26004 26004-0004 1
FUSE,5A 26006 26006-1077 2
FUSE,20A 26006A 26006-1079 5
FUSE,30A 26006B 26006-1080 3
WIRE-LEAD,BATTERY(+) 26011 26011-0106 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1787 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3728 1
HARNESS 26030 26030-2322 1
HARNESS,MAIN 26031 26031-0435 1
RELAY-ASSY 27002 27002-1068 1
HORN 27003 27003-1276 1
TRIM 53044 53044-1137 1
CLAMP,HOSE 92037 92037-1827 3
PLUG 92066 92066-1539 1
GROMMET 92071 92071-1136 1
BAND,L=123 92072 92072-030 5
BAND,L=149 92072A 92072-031 2
BAND,L=202 92072B 92072-1195 1
BAND,L=250 92072C 92072-1237 2
BAND,L=188 92072D 92072-1239 14
BAND,L=368.3 92072E 92072-3872 8
COLLAR 92143 92143-1057 2
CLAMP 92171 92171-1365 1
