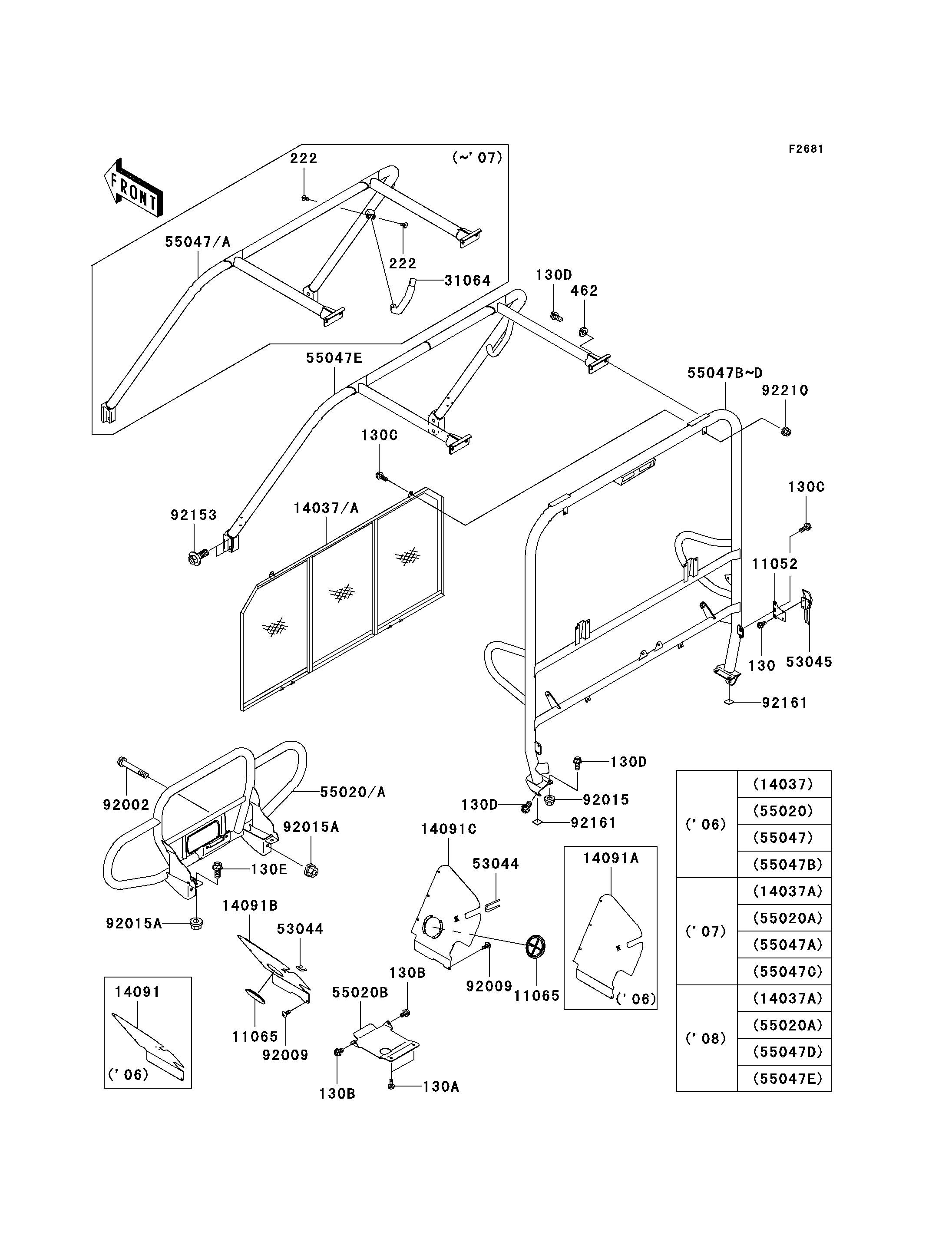

2008 Mule™ 3010 4X4 - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130B
130C
130C
130D
130D
130D
130E
462
11052
11065
11065
14037A
14091B
14091C
53044
53044
53045
55020A
55020B
55047D
55047E
92002
92009
92009
92015
92015A
92015A
92153
92161
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 4
BOLT-FLANGED,6X16 130A 130BB0616 2
BOLT-FLANGED,8X12 130B 130BB0812 2
BOLT-FLANGED,8X20 130C 130BB0820 10
BOLT-FLANGED,10X20 130D 130BB1020 10
BOLT-FLANGED,12X25 130E 130CA1225 2
WASHER-SPRING,10MM 462 462K1000 4
BRACKET,CARRIER CLAMP JOINT 11052 11052-7559 2
CAP,F.BLACK 11065 11065-1053-6Z 2
SCREEN,REAR GUARD,W.BLACK 14037A 14037-0016-388 1
COVER,FR,LH 14091B 14091-7553 1
COVER,FR,RH 14091C 14091-7554 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-1063 2
GUARD,FR,W.BLACK 55020A 55020-7505-388 1
GUARD,GEAR CASE 55020B 55020-7506 1
BAR-COMP,RR,W.BLACK 55047D 55047-7513-388 1
BAR-COMP,FR,W.BLACK 55047E 55047-7514-388 1
BOLT,FLANGED,12X75 92002 92002-1661 2
SCREW,TAPPING,6X16 92009 92009-1166 8
NUT,FLANGED,10MM 92015 92015-1428 4
NUT,LOCK,FLANGED,12MM 92015A 92015-1433 4
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92161 92161-0020 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 6
