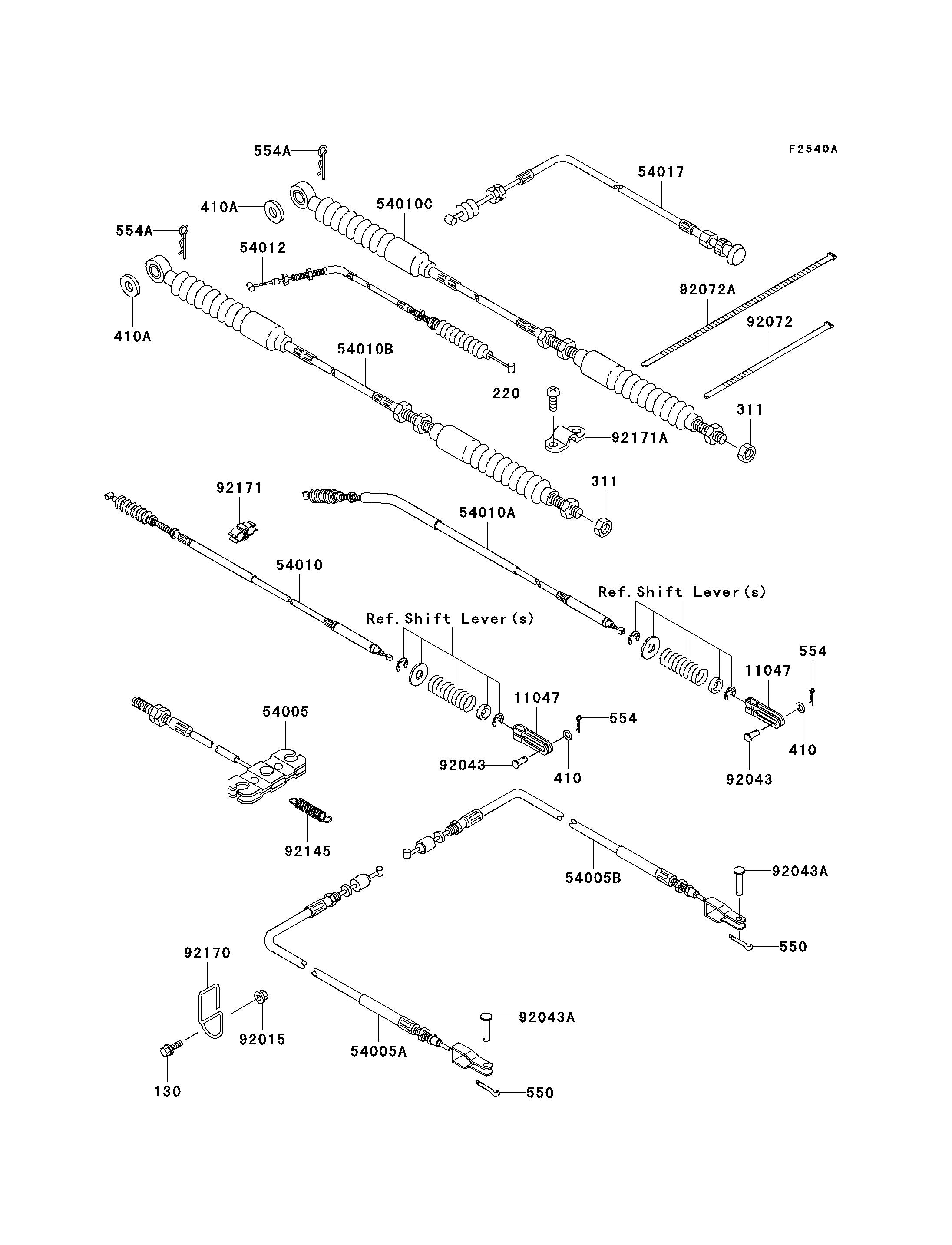

2008 Mule™ 3010 4X4 - Cables(JK1AFCE1 6B543664-)

DOWNLOAD PDF
SELECT A NEW PART
130
220
311
311
410
410
410A
410A
550
550
554
554
554A
554A
11047
11047
54005
54005A
54005B
54010
54010A
54010B
54010C
54012
54017
92015
92043
92043
92043A
92043A
92072
92072A
92145
92170
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130AA0620 1
SCREW-PAN-CROS,5X14 220 220AA0514 4
NUT-HEX,6MM 311 311B0600 2
WASHER-PLAIN-SMALL,6MM 410 410B0600 2
W-PLAIN-S,8MM 410A 410E0800 2
PIN-COTTER,2.0X22 550 550D2022 2
PIN-SNAP 554 554A0600 2
PIN-SNAP,8MM 554A 554A0800 2
BRACKET,DIFF LOCK 11047 11047-1043 2
CABLE-BRAKE,PARKING,FR 54005 54005-1198 1
CABLE-BRAKE,PARKING,RR,LH 54005A 54005-1209 1
CABLE-BRAKE,PARKING,RR,RH 54005B 54005-1210 1
CABLE,2-4WD 54010 54010-0044 1
CABLE,DIFF LOCK 54010A 54010-1120 1
CABLE,SHIFT CONTROL 54010B 54010-1121 1
CABLE,HI-LOW 54010C 54010-1124 1
CABLE-THROTTLE 54012 54012-1637 1
CABLE-STARTER 54017 54017-1208 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
PIN,6X11 92043 92043-092 2
PIN 92043A 92043-1039 2
BAND,L=188 92072 92072-1239 7
BAND,L=368.3 92072A 92072-3872 2
SPRING 92145 92145-7506 1
CLAMP,CABLE 92170 92170-1372 1
CLAMP 92171 92171-0129 1
CLAMP 92171A 92171-1203 2
