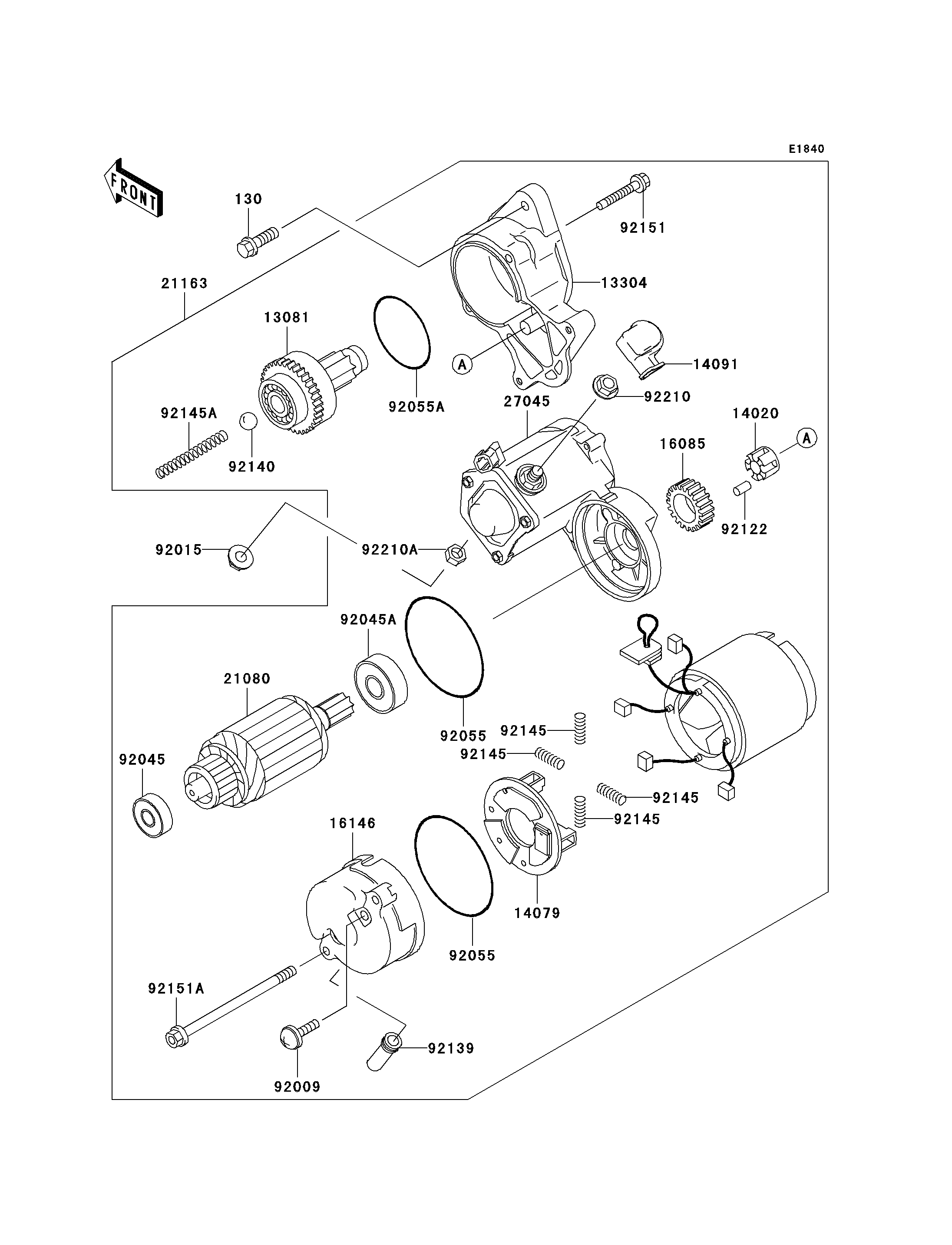

2008 Mule™ 3010 4X4 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
130
13081
13304
14020
14079
14091
16085
16146
21080
21163
27045
92009
92015
92045
92045A
92055
92055
92055A
92122
92139
92140
92145
92145
92145
92145
92145A
92151
92151A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130P0830 2
CLUTCH-ASSY 13081 13081-2231 1
HOUSING-ASSY 13304 13304-2201 1
RETAINER 14020 14020-2112 1
HOLDER-ASSY 14079 14079-2064 1
COVER 14091 14091-2080 1
GEAR 16085 16085-2055 1
COVER-ASSY 16146 16146-2228 1
ARMATURE 21080 21080-2070 1
STARTER-ELECTRIC 21163 21163-2124 1
SWITCH-ASSY 27045 27045-2018 1
SCREW 92009 92009-2455 2
NUT,8MM 92015 92015-1143 1
BEARING-BALL 92045 92045-2257 1
BEARING-BALL 92045A 92045-2258 1
RING-O 92055 92055-2199 2
RING-O 92055A 92055-2200 1
ROLLER 92122 92122-2057 5
BUSHING 92139 92139-2051 1
BALL 92140 92140-2061 1
SPRING 92145 92145-2096 4
SPRING 92145A 92145-2097 1
BOLT 92151 92151-2167 2
BOLT 92151A 92151-2168 2
NUT 92210 92210-2084 1
NUT 92210A 92210-2085 1
