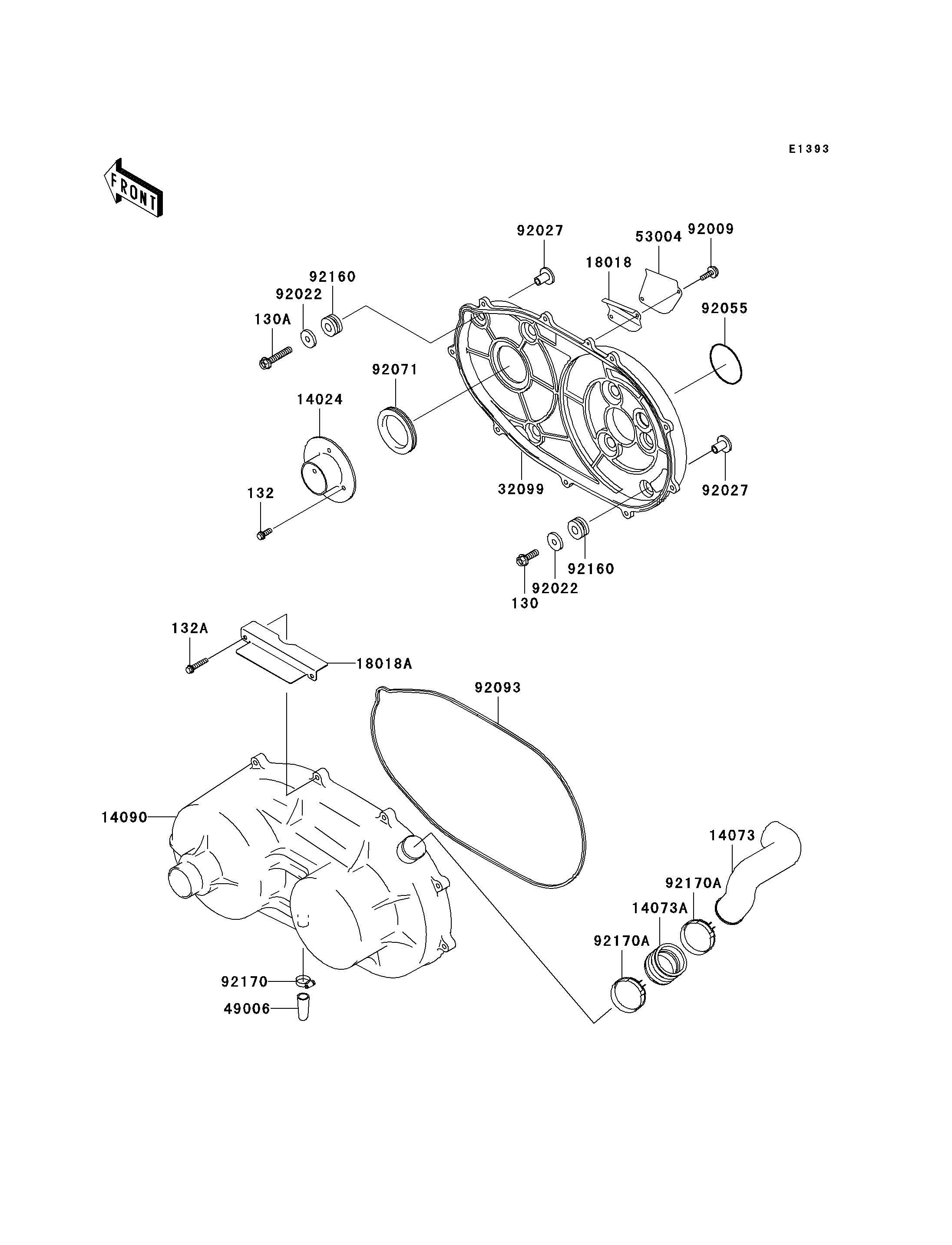

2008 Mule™ 3010 4X4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
132A
14024
14073
14073A
14090
18018
18018A
32099
49006
53004
92009
92022
92022
92027
92027
92055
92071
92093
92160
92160
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X25 130 130BB0825 6
BOLT-FLANGED,8X45 130A 130BB0845 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 3
BOLT-FLANGED-SMALL,6X30 132A 132BB0630 9
COVER,FAN 14024 14024-1554 1
DUCT 14073 14073-0079 1
DUCT 14073A 14073-1324 1
COVER,BELT CONVERTER 14090 14090-1239 1
PLATE-HEAT GUARD 18018 18018-1092 1
PLATE-HEAT GUARD 18018A 18018-1118 1
CASE,BELT CONVERTER 32099 32099-1140 1
BOOT 49006 49006-1351 1
MAT,GUARD PLATE 53004 53004-1079 1
SCREW,TAPPING,5X10 92009 92009-1332 2
WASHER,8.5X26X0.8 92022 92022-101 7
COLLAR 92027 92027-4015 7
RING-O,CRANKCASE SIDE 92055 92055-1395 1
GROMMET,CONVERTER CASE 92071 92071-1212 1
SEAL 92093 92093-1526 1
DAMPER 92160 92160-1012 7
CLAMP 92170 92170-1283 1
CLAMP 92170A 92170-1448 2
