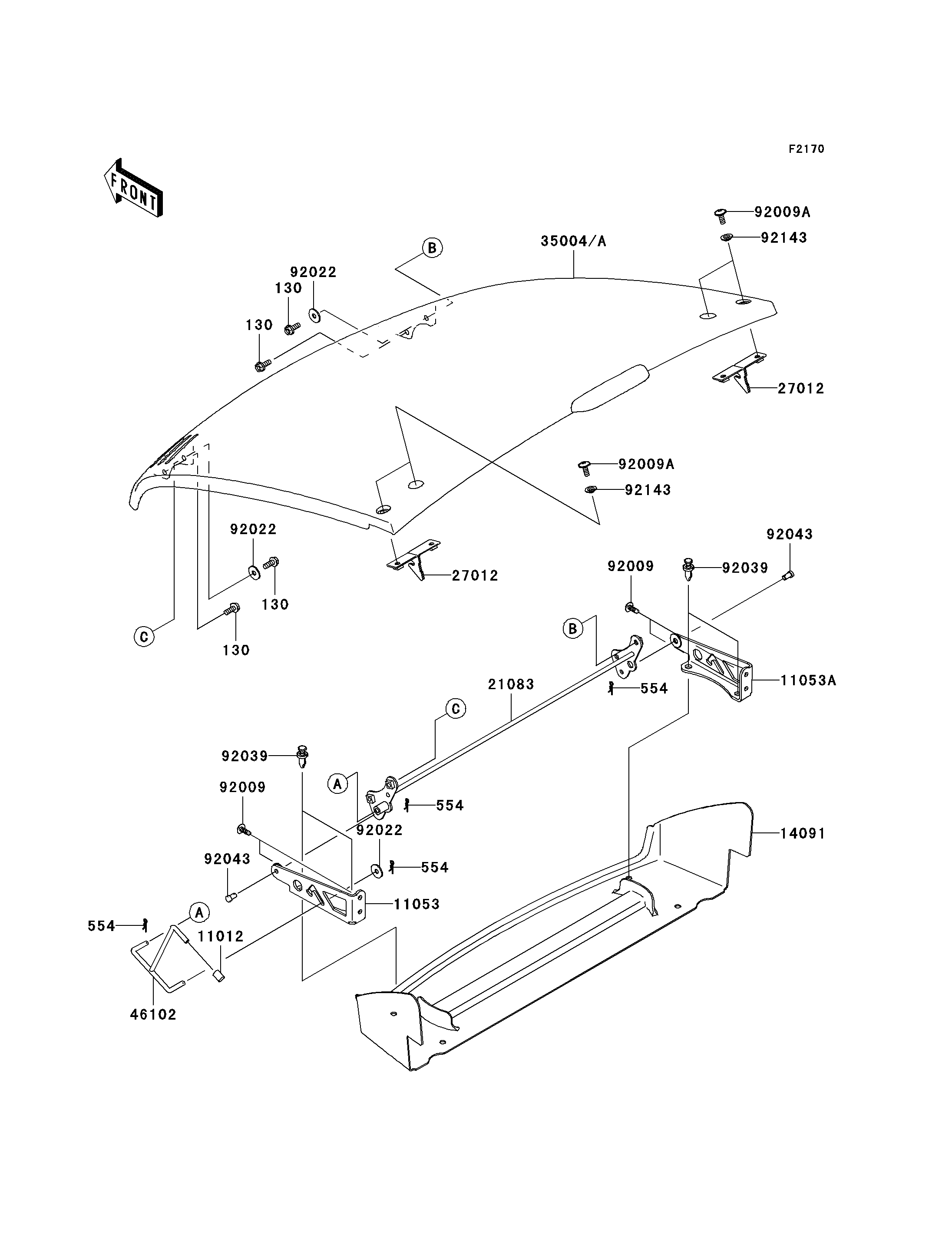

Parts Diagrams |
130
130
130
130
554
554
554
554
11012
11053
11053A
14091
21083
27012
27012
35004
46102
92009
92009
92009A
92009A
92022
92022
92022
92039
92039
92043
92043
92143
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130J0616 | 4 | ||
| PIN-SNAP | 554 | 554A0600 | 4 | ||
| CAP | 11012 | 11012-1899 | 1 | ||
| BRACKET | 11053 | 11053-1451 | 1 | ||
| BRACKET | 11053A | 11053-1452 | 1 | ||
| COVER | 14091 | 14091-0368 | 1 | ||
| ARM | 21083 | 21083-0021 | 1 | ||
| HOOK | 27012 | 27012-0065 | 2 | ||
| FENDER-FRONT,HOOD,A.RED | 35004 | 35004-0029-260 | 1 | ||
| ROD | 46102 | 46102-0048 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 4 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 4 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 3 | ||
| RIVET | 92039 | 92039-1229 | 4 | ||
| PIN,6X9 | 92043 | 92043-1626 | 2 | ||
| COLLAR | 92143 | 92143-1087 | 4 | ||
| FENDER-FRONT,HOOD,H.GREEN | 35004A | 35004-0029-6A | 1 | US |
