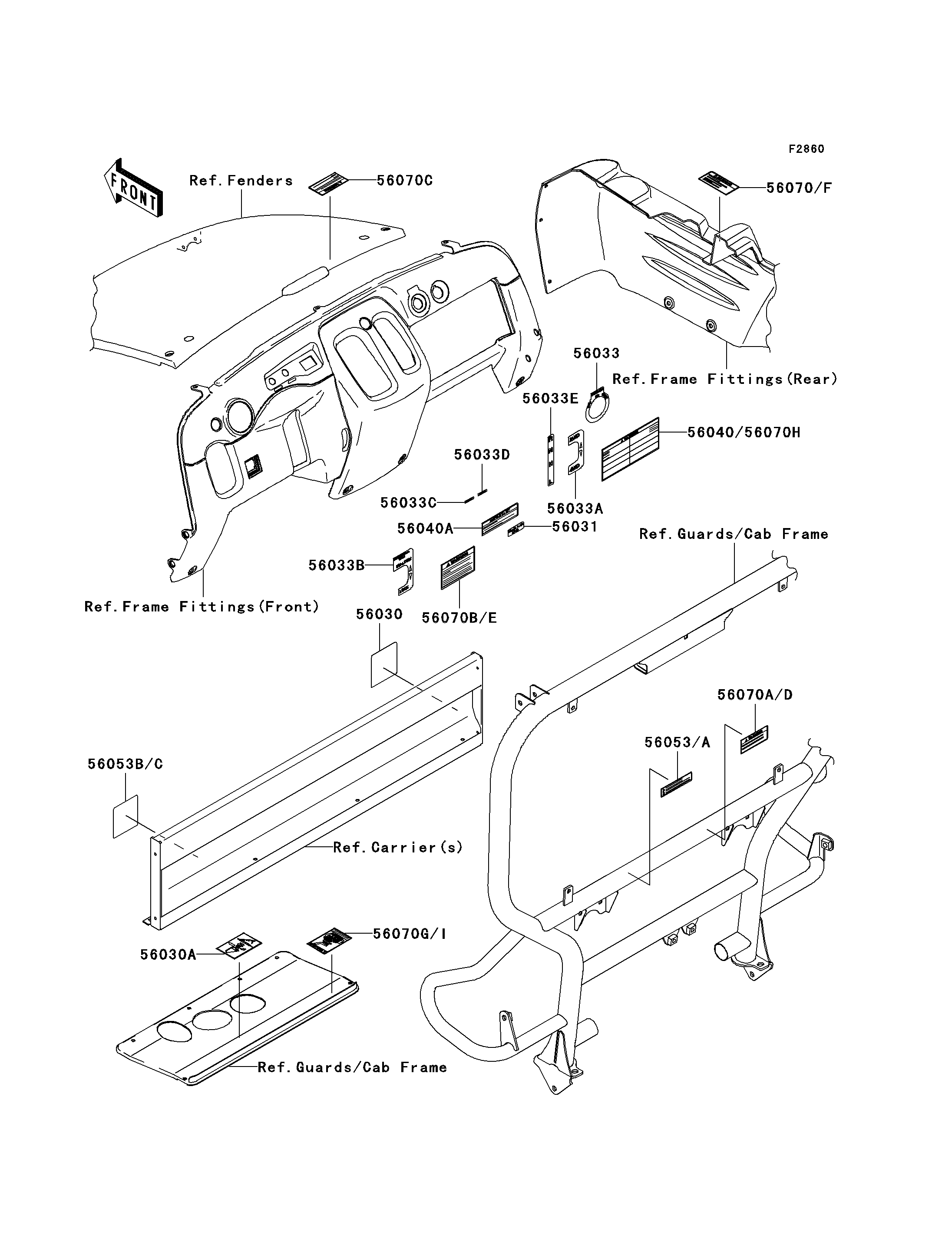

Mule 610 4x4 - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030A
56031
56033
56033A
56033B
56033C
56033D
56033E
56040
56040A
56053
56053B
56070
56070A
56070B
56070C
56070G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,CARRIER HOOK OPERATION 56030 56030-0081 1
LABEL,OIL GAUGE 56030A 56030-0096 1
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION 56033 56033-0051 1
LABEL-MANUAL,2/4WD 56033A 56033-0052 1
LABEL-MANUAL,DIFF LOCK 56033B 56033-0053 1
LABEL-MANUAL,OIL TEMP 56033C 56033-0054 1
LABEL-MANUAL,PARKING 56033D 56033-0055 1
LABEL-MANUAL,SHIFT 56033E 56033-0056 1
LABEL-WARNING,GENERAL 56040 56040-1339 1
LABEL-WARNING,SHIFT CAUTION 56040A 56040-1342 1
LABEL-SPECIFICATION,CARGO BED 56053 56053-0060 1
LABEL-SPECIFICATION,TIRE ROAD 56053B 56053-0121 1
LABEL-WARNING,FUEL TANK 56070 56070-0048 1
LABEL-WARNING,BED RAISED 56070A 56070-0049 1
LABEL-WARNING,OFF-HIGHWAY 56070B 56070-0050 1
LABEL-WARNING,BONNET OPERATION 56070C 56070-0053 1
LABEL-WARNING,HOT SURFACES 56070G 56070-1125 1
LABEL-SPECIFICATION,CARGO BED 56053A 56053-0066 1 CN
LABEL-SPECIFICATION,TIRE ROAD 56053C 56053-0122 1 CN
LABEL,BED RAISED(FRENCH) 56070D 56070-0054 1 CN
LABEL,OFF-HIGHWAY(FRENCH) 56070E 56070-0055 1 CN
LABEL,GASOLINE(FRENCH) 56070F 56070-0057 1 CN
LABEL,GENERAL(FRENCH) 56070H 56070-1206 1 CN
LABEL,HOT SURFACES(FRENCH) 56070I 56070-1234 1 CN
