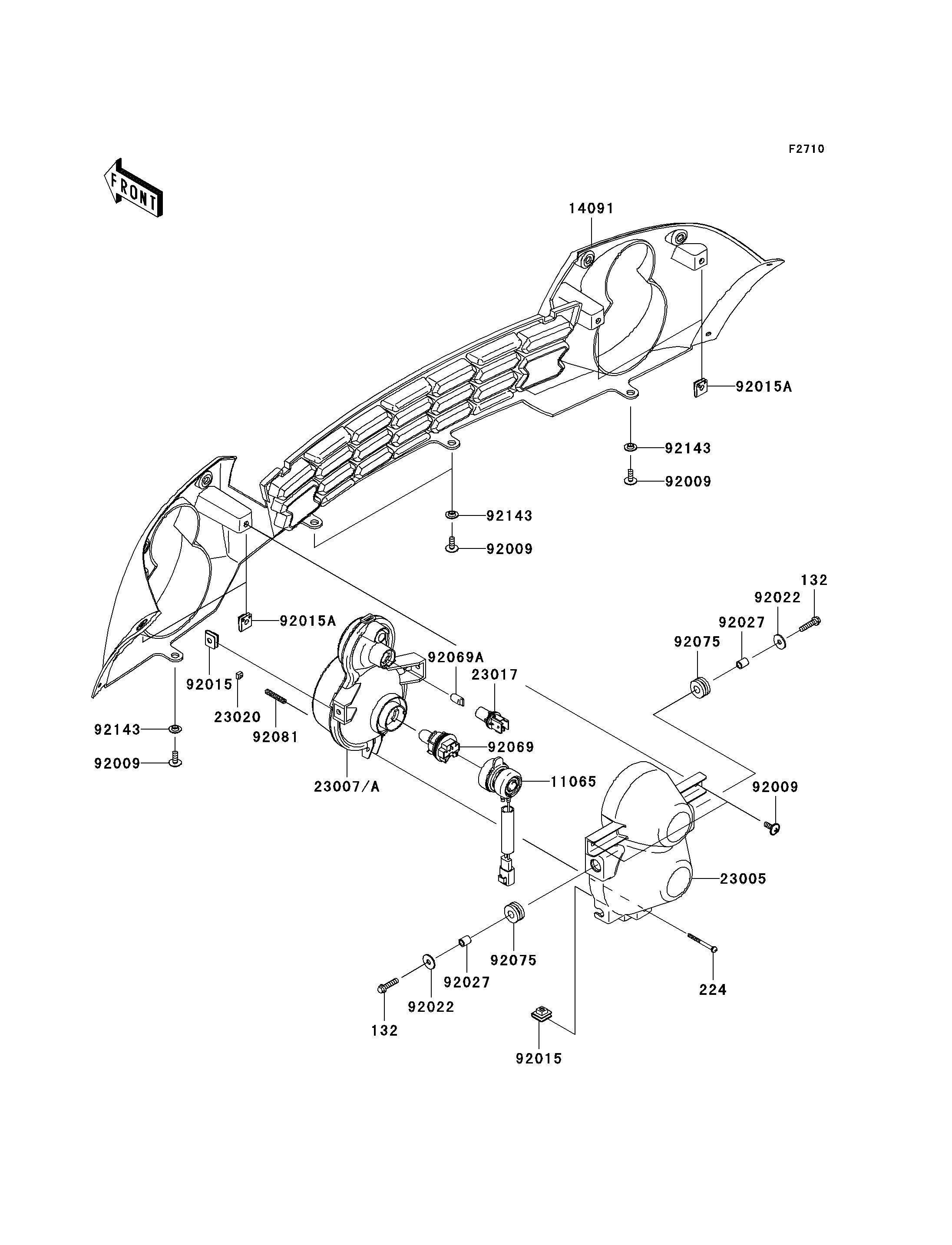

Mule 610 4x4 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
224
11065
14091
23005
23007
23007A
23017
23020
92009
92009
92009
92009
92015
92015
92015A
92015A
92022
92022
92027
92027
92069
92069A
92075
92075
92081
92143
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132H0625 4
SCREW-PAN-WP-CROS,4X45 224 224D0445 2
CAP,HEAD LAMP 11065 11065-0104 2
COVER,FRONT GRILLE,BLACK 14091 14091-0342-283 1
BODY-COMP-HEAD LAMP 23005 23005-0005 2
LENS-COMP,HEAD LAMP,LH 23007 23007-0047 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-0048 1
SOCKET,HEAD LAMP 23017 23017-0002 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
SCREW,6X16 92009 92009-1621 8
NUT,6MM 92015 92015-1094 6
NUT,CLAMP,6MM 92015A 92015-1678 4
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 30/30W 92069 92069-0012 2
BULB,12V 5W 92069A 92069-0013 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR 92143 92143-1087 4
