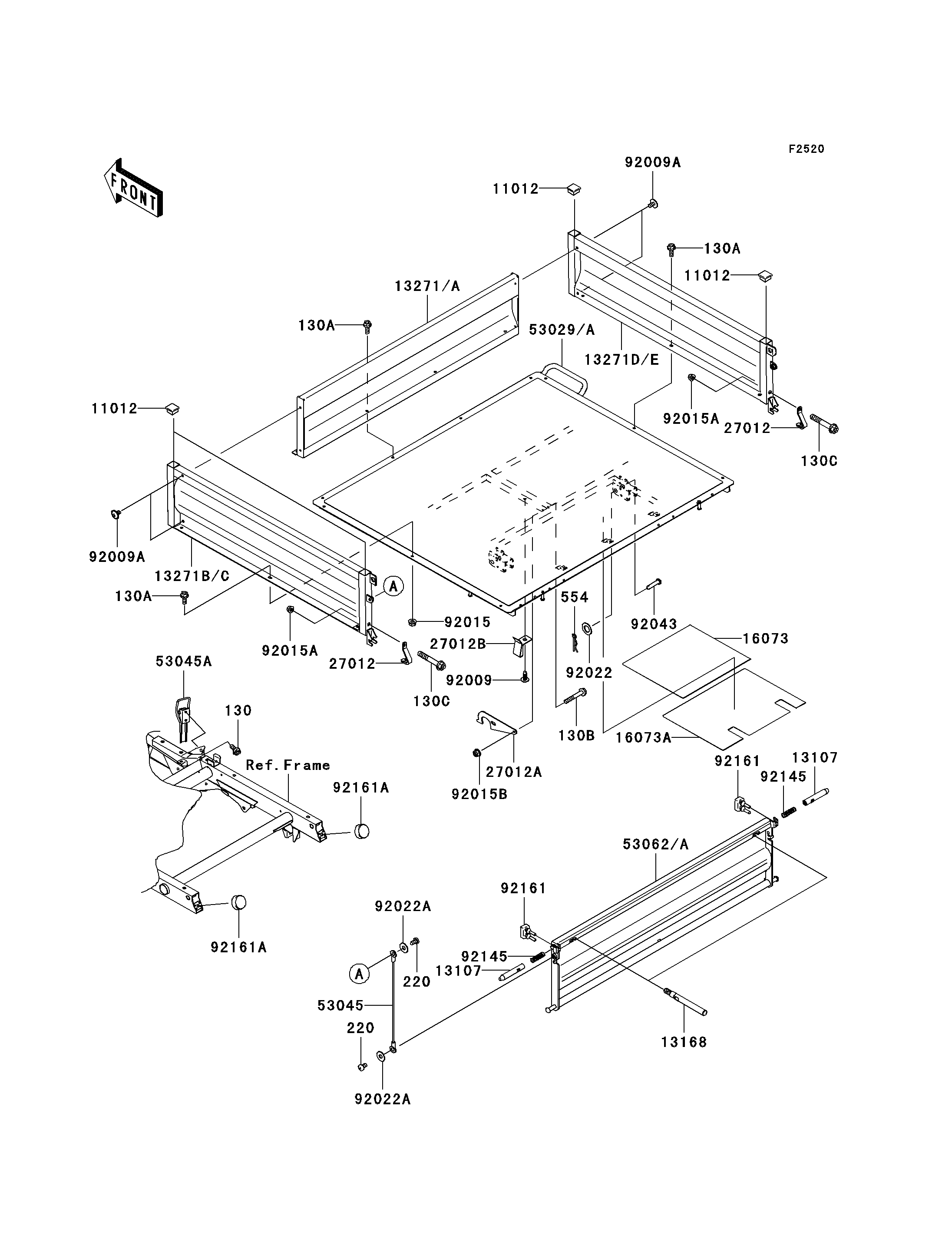

Mule 610 4x4 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
130B
130C
130C
220
220
554
11012
11012
11012
13107
13107
13168
13271
13271A
13271B
13271C
13271D
13271E
16073
16073A
27012
27012
27012A
27012B
53029
53029A
53045
53045A
53062
53062A
92009
92009A
92009A
92015
92015A
92015A
92015B
92022
92022A
92022A
92043
92145
92145
92161
92161
92161A
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130J0614 2
BOLT-FLANGED,6X16 130A 130J0616 10
BOLT-FLANGED,6X40 130B 130J0640 1
BOLT-FLANGED,8X50 130C 130J0850 2
SCREW-PAN-CROSS,6X10 220 220F0610 4
PIN-SNAP,12MM 554 554A1200 2
CAP 11012 11012-1784 4
SHAFT 13107 13107-0082 2
LEVER 13168 13168-0090 2
PLATE,CARRIER,SIDE,FR,H.GREEN 13271 13271-0394-B9 1
PLATE,CARRIER,SIDE,FR,A.RED 13271A 13271-0394-467 1
PLATE,CARRIER,SIDE,LH,H.GREEN 13271B 13271-0525-B9 1
PLATE,CARRIER,SIDE,LH,A.RED 13271C 13271-0525-467 1
PLATE,CARRIER,SIDE,RH,H.GREEN 13271D 13271-0526-B9 1
PLATE,CARRIER,SIDE,RH,A.RED 13271E 13271-0526-467 1
INSULATOR,CARRIER 16073 16073-0020 1
INSULATOR,CARRIER 16073A 16073-0021 1
HOOK,TAIL GATE 27012 27012-0022 2
HOOK 27012A 27012-0044 1
HOOK,CARRIER 27012B 27012-1445 1
CARRIER,H.GREEN 53029 53029-0018-B9 1
CARRIER,A.RED 53029A 53029-0018-467 1
HOOK-ASSY,TAIL GATE 53045 53045-0006 2
HOOK-ASSY 53045A 53045-1063 1
GATE-TAIL,H.GREEN 53062 53062-0005-B9 1
GATE-TAIL,A.RED 53062A 53062-0005-467 1
SCREW,TAPPING,6X16 92009 92009-1166 1
SCREW,6X10 92009A 92009-1661 4
NUT,6MM 92015 92015-1386 10
NUT,FLANGED,8MM 92015A 92015-1408 2
NUT,LOCK,FLANGED,6MM 92015B 92015-1675 1
WASHER,12.5X21X1.2 92022 92022-072 2
WASHER,7X18X1.2 92022A 92022-1545 4
PIN,12X54 92043 92043-1451 2
SPRING,TENSIONER 92145 92145-1215 2
DAMPER 92161 92161-0258 2
DAMPER,SEAT 92161A 92161-1065 2
