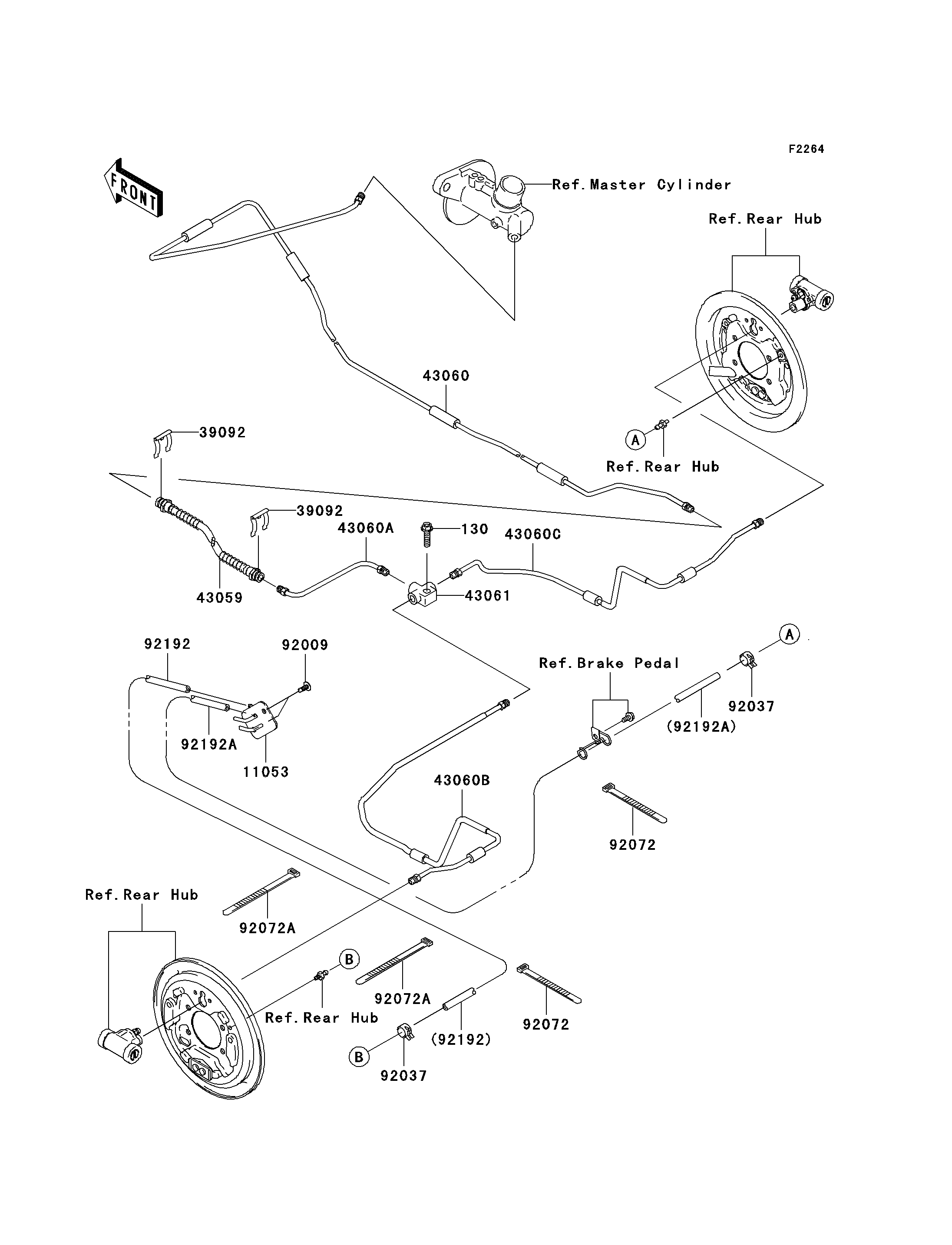

Mule 610 4x4 - Rear Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
130
11053
39092
39092
43059
43060
43060A
43060B
43060C
43061
92009
92037
92037
92072
92072
92072A
92072A
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X30 130 130D0830 1
BRACKET 11053 11053-0781 1
PIN-HAIR 39092 39092-1052 2
HOSE-BRAKE,CNT 43059 43059-1665 1
PIPE-BRAKE,M/CYLINDER 43060 43060-0003 1
PIPE-BRAKE,RR,CNT 43060A 43060-0006 1
PIPE-BRAKE,RR,LH 43060B 43060-0007 1
PIPE-BRAKE,RR,RH 43060C 43060-0008 1
JOINT-BRAKE 43061 43061-1063 1
SCREW,TAPPING,6X16 92009 92009-1166 2
CLAMP 92037 92037-1601 2
BAND,L=123 92072 92072-030 2
BAND,L=149 92072A 92072-031 2
TUBE,4.7X9.5X1320 92192 92192-0103 1
TUBE,4.7X9.5X1760 92192A 92192-0176 1
