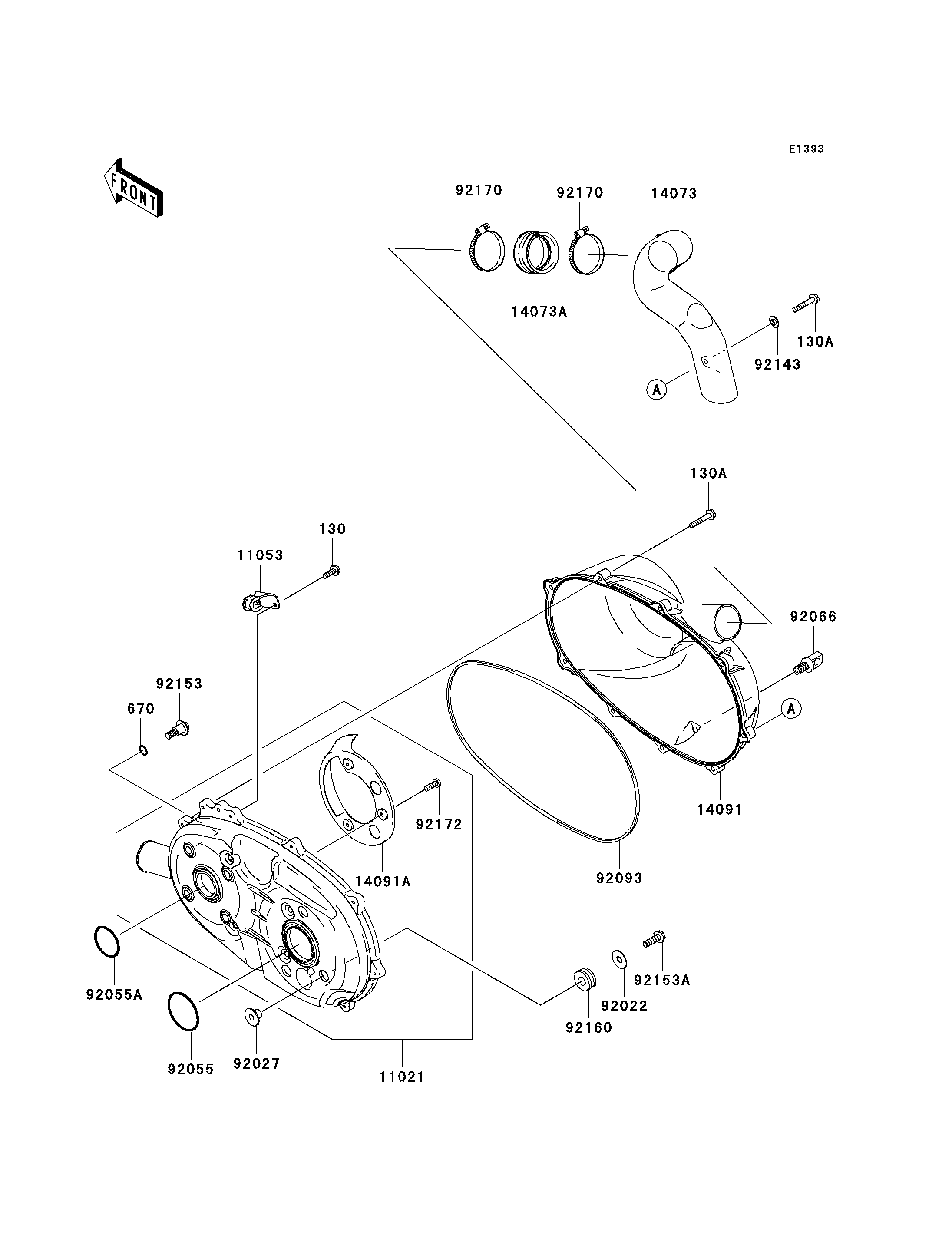

Mule 610 4x4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
670
11021
11053
14073
14073A
14091
14091A
92022
92027
92055
92055A
92066
92093
92143
92153
92153A
92160
92170
92170
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X18 130 130J0618 2
BOLT-FLANGED,6X35 130A 130J0635 9
O RING,12MM 670 670D2012 4
CASE-ASSY,BELT CONVERTER 11021 11021-0003 1
BRACKET 11053 11053-1483 1
DUCT,EXHAUST 14073 14073-0071 1
DUCT,JOINT 14073A 14073-1775 1
COVER,BELT CONVERTER 14091 14091-0192 1
COVER 14091A 14091-0391 1
WASHER,8.5X26X0.8 92022 92022-101 3
COLLAR 92027 92027-4015 3
RING-O,64X4 92055 92055-0048 1
RING-O,50X4 92055A 92055-1501 1
PLUG,DRAIN,11X19 92066 92066-1580 1
SEAL 92093 92093-0018 1
COLLAR 92143 92143-1087 1
BOLT,8X26.5 92153 92153-0594 4
BOLT,FLANGED,8X25 92153A 92153-0953 3
DAMPER 92160 92160-1012 3
CLAMP 92170 92170-1764 2
SCREW,5X14 92172 92172-0166 3
