Parts Diagrams |
130
130
130
130A
11052
92001
92001
92001A
92002
92002A
92002A
92015
92015
92015
92015
92015
92015
92022
92022A
92022B
92027

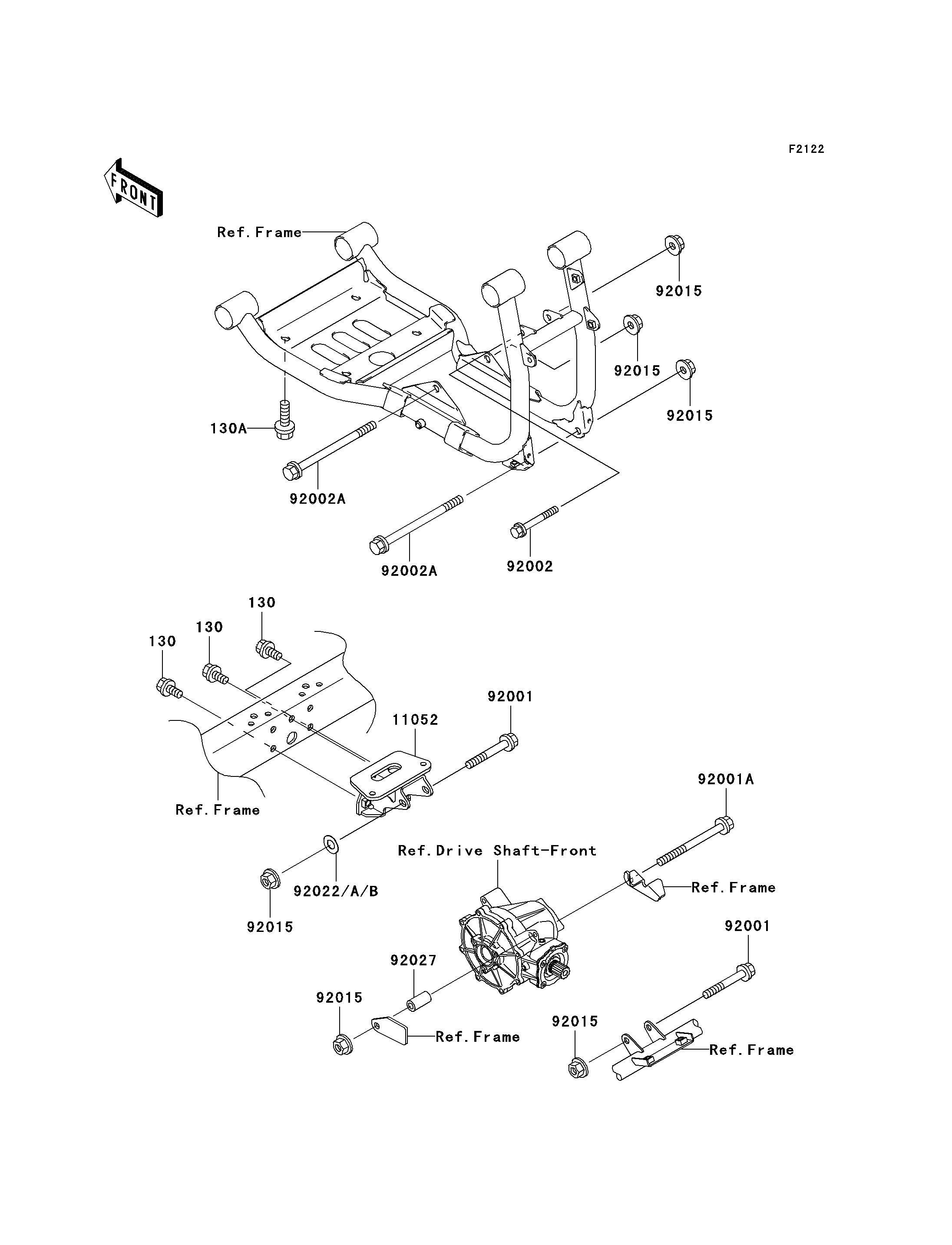

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,10X20 | 130 | 130G1020 | 3 | ||
| BOLT-FLANGED,10X20 | 130A | 130J1020 | 4 | ||
| BRACKET,FRONT GEAR CASE | 11052 | 11052-1575 | 1 | ||
| BOLT,FLANGED,10X70 | 92001 | 92001-1600 | 2 | ||
| BOLT,FLANGED,10X115 | 92001A | 92001-1603 | 1 | ||
| BOLT,FLANGED,10X80 | 92002 | 92002-1764 | 1 | ||
| BOLT,FLANGED,10X145 | 92002A | 92002-1765 | 2 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 6 | ||
| WASHER,10.5X26X2.3,BLACK | 92022 | 92022-1396 | 4 | ||
| WASHER,10.2X20X0.5 | 92022A | 92022-1649 | AR | ||
| WASHER,10.5X20X1 | 92022B | 92022-239 | AR | ||
| COLLAR,11X20X39 | 92027 | 92027-1518 | 1 |
| BOLT-FLANGED,10X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FRONT GEAR CASE | |
| REF # | 11052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X70 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X115 | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X80 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X145 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X26X2.3,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.2X20X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X20X1 | |
| REF # | 92022B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| COLLAR,11X20X39 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
