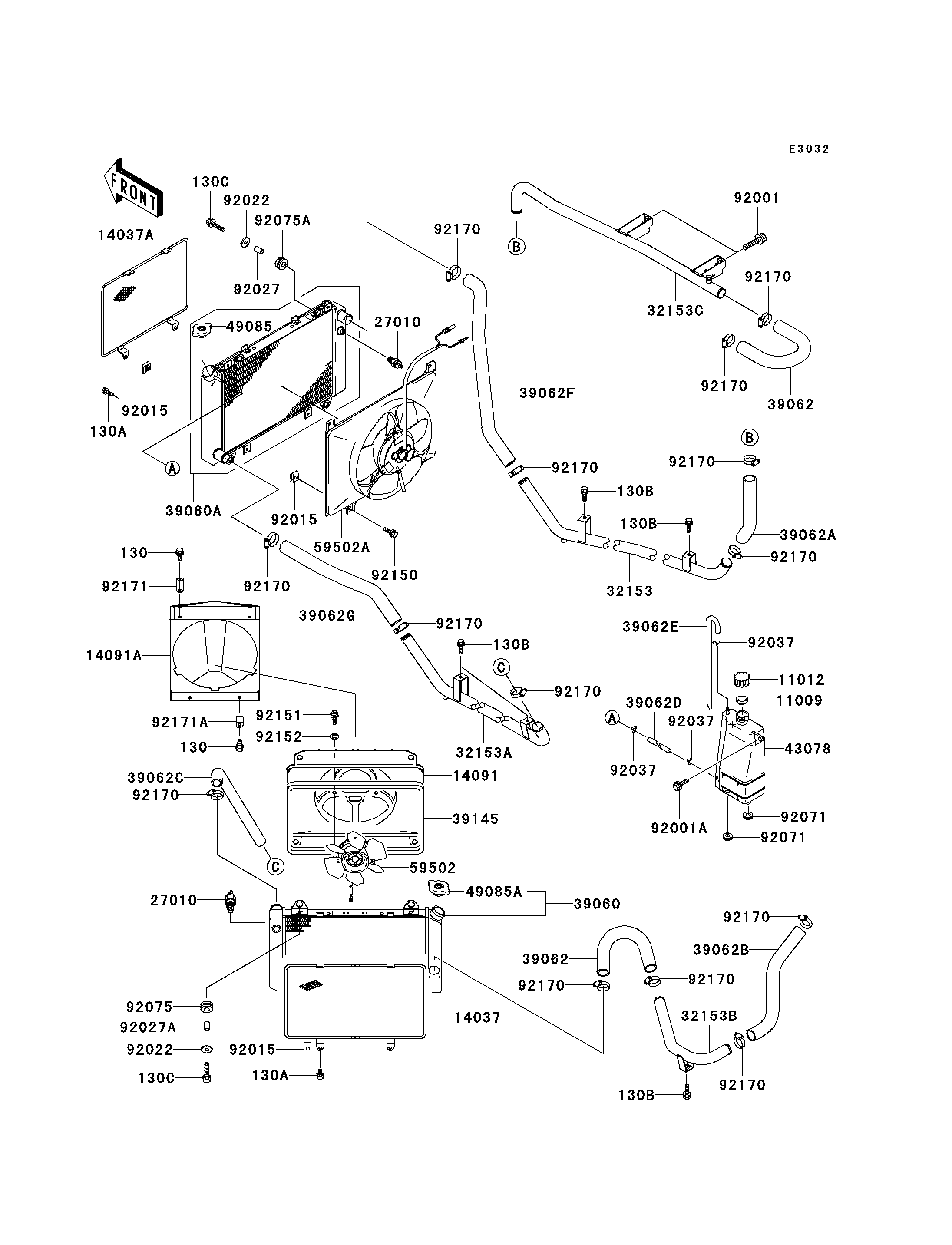

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| SCREEN | 14037 | 14037-1258 | 1 | ||
| SCREEN | 14037A | 14037-1284 | 1 | ||
| COVER,SHROUD | 14091 | 14091-1135 | 1 | ||
| COVER | 14091A | 14091-1216 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1317 | 2 | ||
| PIPE,RH | 32153 | 32153-1056 | 1 | ||
| PIPE,LH,FRONT | 32153A | 32153-1255 | 1 | ||
| PIPE,LH,REAR | 32153B | 32153-1256 | 1 | ||
| PIPE | 32153C | 32153-1933 | 1 | ||
| RADIATOR | 39060 | 39060-1184 | 1 | ||
| RADIATOR | 39060A | 39060-1187 | 1 | ||
| HOSE-COOLING | 39062 | 39062-1797 | 2 | ||
| HOSE-COOLING | 39062A | 39062-1799 | 1 | ||
| HOSE-COOLING | 39062B | 39062-1800 | 1 | ||
| HOSE-COOLING | 39062C | 39062-1826 | 1 | ||
| HOSE-COOLING | 39062D | 39062-1829 | 1 | ||
| HOSE-COOLING | 39062E | 39062-1830 | 1 | ||
| HOSE-COOLING | 39062F | 39062-1834 | 1 | ||
| HOSE-COOLING | 39062G | 39062-1835 | 1 | ||
| TRIM-SEAL | 39145 | 39145-1119 | 1 | ||
| RESERVOIR | 43078 | 43078-1185 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| CAP-ASSY-PRESSURE | 49085A | 49085-1068 | 1 | ||
| FAN-ASSY | 59502 | 59502-1134 | 1 | ||
| FAN-ASSY | 59502A | 59502-1137 | 1 | ||
| BOLT,FLANGED,8X45 | 92001 | 92001-1613 | 2 | ||
| BOLT,W/P,6X16 | 92001A | 92001-1860 | 1 | ||
| NUT | 92015 | 92015-1487 | 8 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 8 | ||
| COLLAR,8.8X12X10.7 | 92027 | 92027-102 | 4 | ||
| COLLAR,8.2X10.5X15.6 | 92027A | 92027-1763 | 4 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 4 | ||
| DAMPER | 92075A | 92075-294 | 4 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 4 | ||
| BOLT,5X12 | 92151 | 92151-1305 | 3 | ||
| COLLAR | 92152 | 92152-1241 | 3 | ||
| BOLT-FLANGED | 130 | 130J0610 | 6 | ||
| BOLT-FLANGED | 130A | 130J0612 | 4 | ||
| BOLT-FLANGED,6X14,BLACK | 130B | 130J0614 | 5 | ||
| BOLT-FLANGED,8X30 | 130C | 130J0830 | 8 | ||
| CLAMP,COOLING HOSE | 92170 | 92170-1284 | 14 | ||
| CLAMP,UPP | 92171 | 92171-1186 | 2 | ||
| CLAMP,LWR | 92171A | 92171-1187 | 2 |
