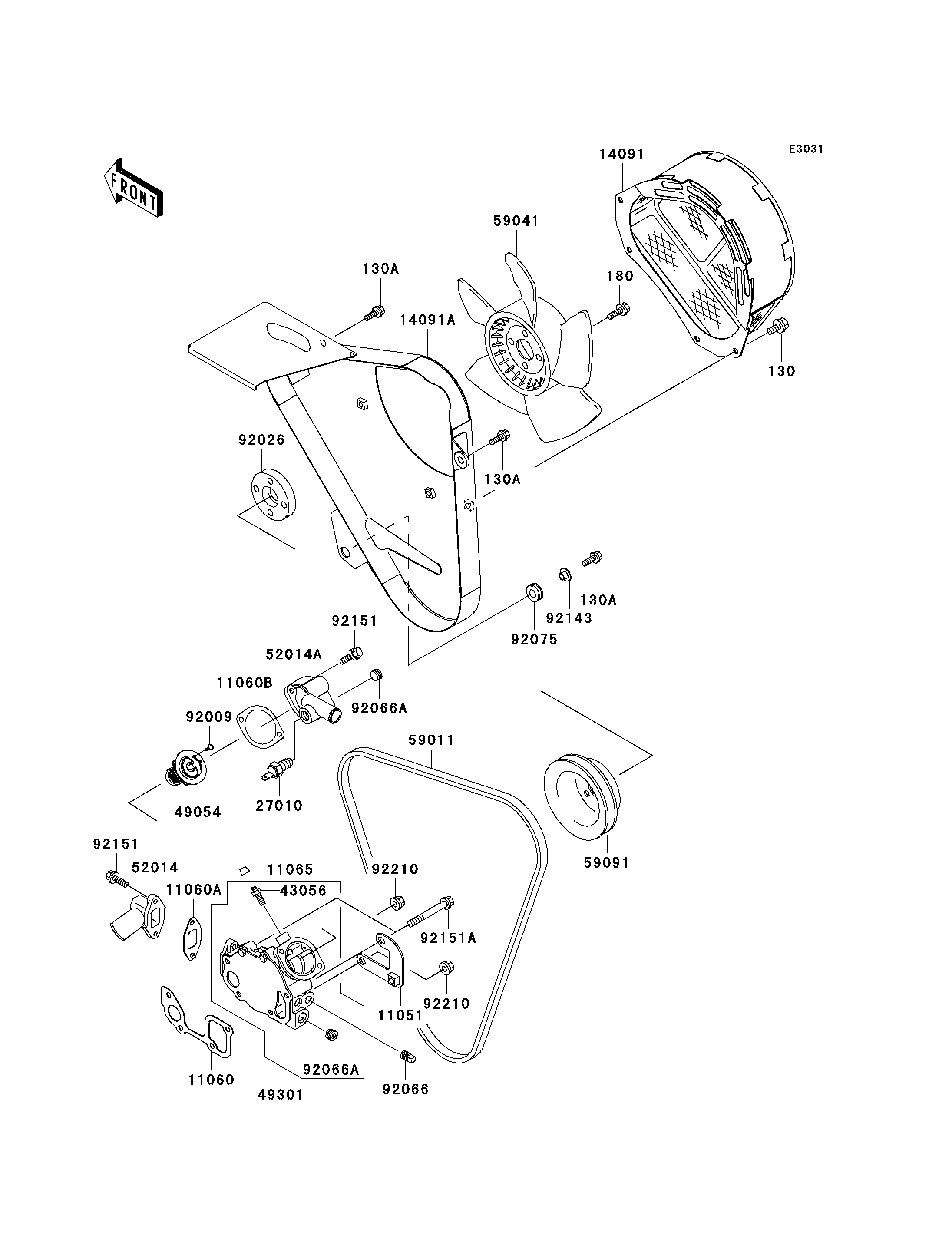

Mule 3010 Diesel 4X4 - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
180
11051
11060
11060A
11060B
11065
14091
14091A
27010
43056
49054
49301
52014
52014A
59011
59041
59091
92009
92026
92066
92066A
92066A
92075
92143
92151
92151
92151A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 4
BOLT-FLANGED,6X16,BLACK 130A 130J0616 3
BOLT-UPSET-WS 180 180J0622 4
BRACKET,BELT COVER 11051 11051-1567 1
GASKET,WATER PUMP 11060 11060-1957 1
GASKET,ELBOW,INLET 11060A 11060-1958 1
GASKET,ELBOW,OUTLET 11060B 11060-1959 1
CAP,BREATHER 11065 11065-1155 1
COVER,FAN 14091 14091-0010 1
COVER,BELT 14091A 14091-1136 1
SWITCH,THERMOSTAT 27010 27010-1414 1
BREATHER-PUMP 43056 43056-1057 1
THERMOSTAT 49054 49054-1068 1
PUMP-ASSY-WATER 49301 49301-1052 1
ELBOW,INLET 52014 52014-1095 1
ELBOW,OUTLET 52014A 52014-1096 1
BELT 59011 59011-1075 1
FAN 59041 59041-1060 1
PULLEY,WATER PUMP 59091 59091-1105 1
SCREW,TAPPING,2.6X8 92009 92009-1915 1
SPACER 92026 92026-1571 1
PLUG,WATER PUMP 92066 92066-1531 1
PLUG,ELBOW OUTLET 92066A 92066-1532 2
DAMPER,BATTERY 92075 92075-161 1
COLLAR 92143 92143-1057 1
BOLT,6X20 92151 92151-1667 4
BOLT,8X50 92151A 92151-1690 2
NUT,8MM 92210 92210-1216 2
