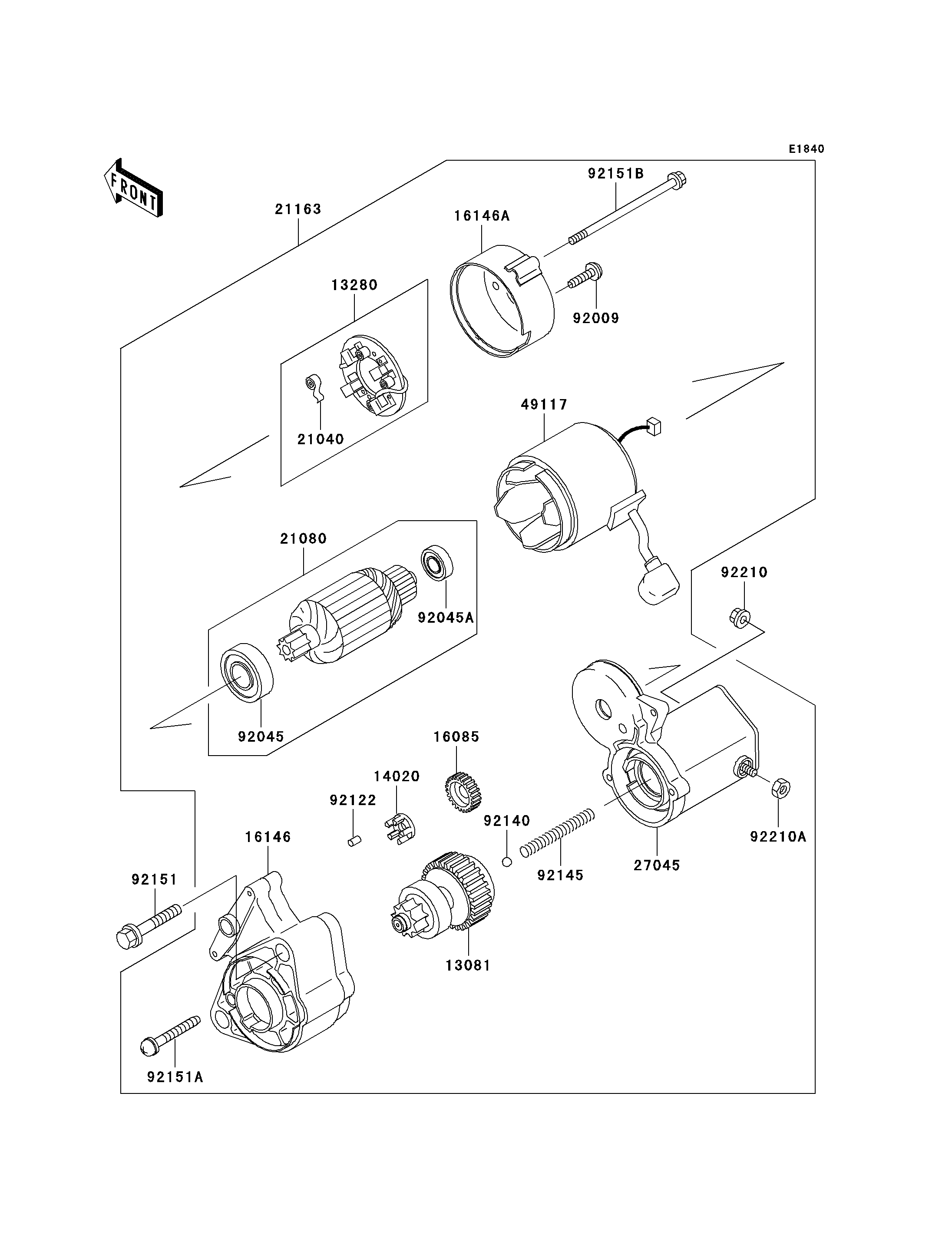

Mule 3010 Diesel 4X4 - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13081
13280
14020
16085
16146
16146A
21040
21080
21163
27045
49117
92009
92045
92045A
92122
92140
92145
92151
92151A
92151B
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY,STARTER 13081 13081-1584 1
HOLDER,STARTER BRUSH 13280 13280-1172 1
RETAINER 14020 14020-1108 1
GEAR,STARTER IDLE 16085 16085-1341 1
COVER-ASSY,STARTER DRIVE 16146 16146-1212 1
COVER-ASSY,STARTER END 16146A 16146-1213 1
SPRING-BRUSH 21040 21040-1058 4
ARMATURE,STARTER 21080 21080-1051 1
STARTER-ELECTRIC 21163 21163-1299 1
SWITCH-ASSY,MAGNETIC 27045 27045-1075 1
YOKE,STARTER 49117 49117-1094 1
SCREW 92009 92009-1920 2
BEARING-BALL,6002T1XZCE 92045 92045-1396 1
BEARING-BALL,608ZMC3E 92045A 92045-1397 1
ROLLER,IDLE GEAR 92122 92122-1210 5
BALL 92140 92140-1065 1
SPRING 92145 92145-1311 1
BOLT,10X28 92151 92151-1696 2
BOLT 92151A 92151-1713 2
BOLT 92151B 92151-1714 2
NUT,8MM 92210 92210-1219 1
NUT 92210A 92210-1231 1
