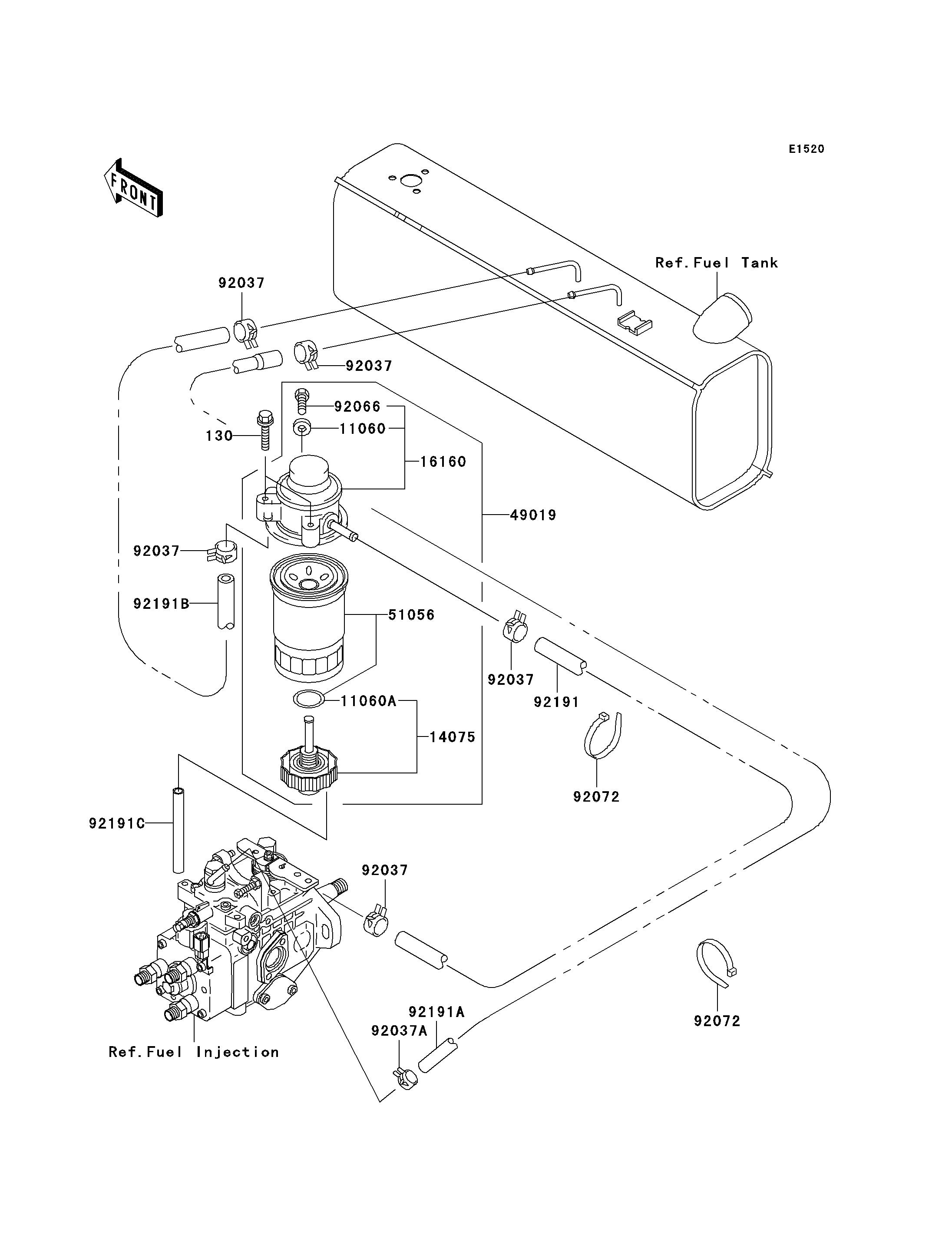

Parts Diagrams |
130
11060
11060A
14075
16160
49019
51056
92037
92037
92037
92037
92037
92037A
92066
92072
92072
92191
92191A
92191B
92191C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X25,BLACK | 130 | 130J0825 | 2 | ||
| GASKET,AIR VENT | 11060 | 11060-1978 | 1 | ||
| GASKET | 11060A | 11060-1979 | 1 | ||
| CAP-ASSY,DRAIN | 14075 | 14075-1109 | 1 | ||
| BODY,FUEL FILTER | 16160 | 16160-1328 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1094 | 1 | ||
| ELEMENT-FUEL FILTER | 51056 | 51056-1051 | 1 | ||
| CLAMP | 92037 | 92037-1181 | 5 | ||
| CLAMP,TUBE | 92037A | 92037-1505 | 1 | ||
| PLUG,AIR VENT | 92066 | 92066-1538 | 1 | ||
| BAND,L=365 | 92072 | 92072-1197 | 2 | ||
| TUBE,INJECTION INLET | 92191 | 92191-1437 | 1 | ||
| TUBE,INJECTION OUTLET | 92191A | 92191-1438 | 1 | ||
| TUBE,FUEL TANK OUTLET | 92191B | 92191-1439 | 1 | ||
| TUBE,8X11X100 | 92191C | 92191-1565 | 1 |
