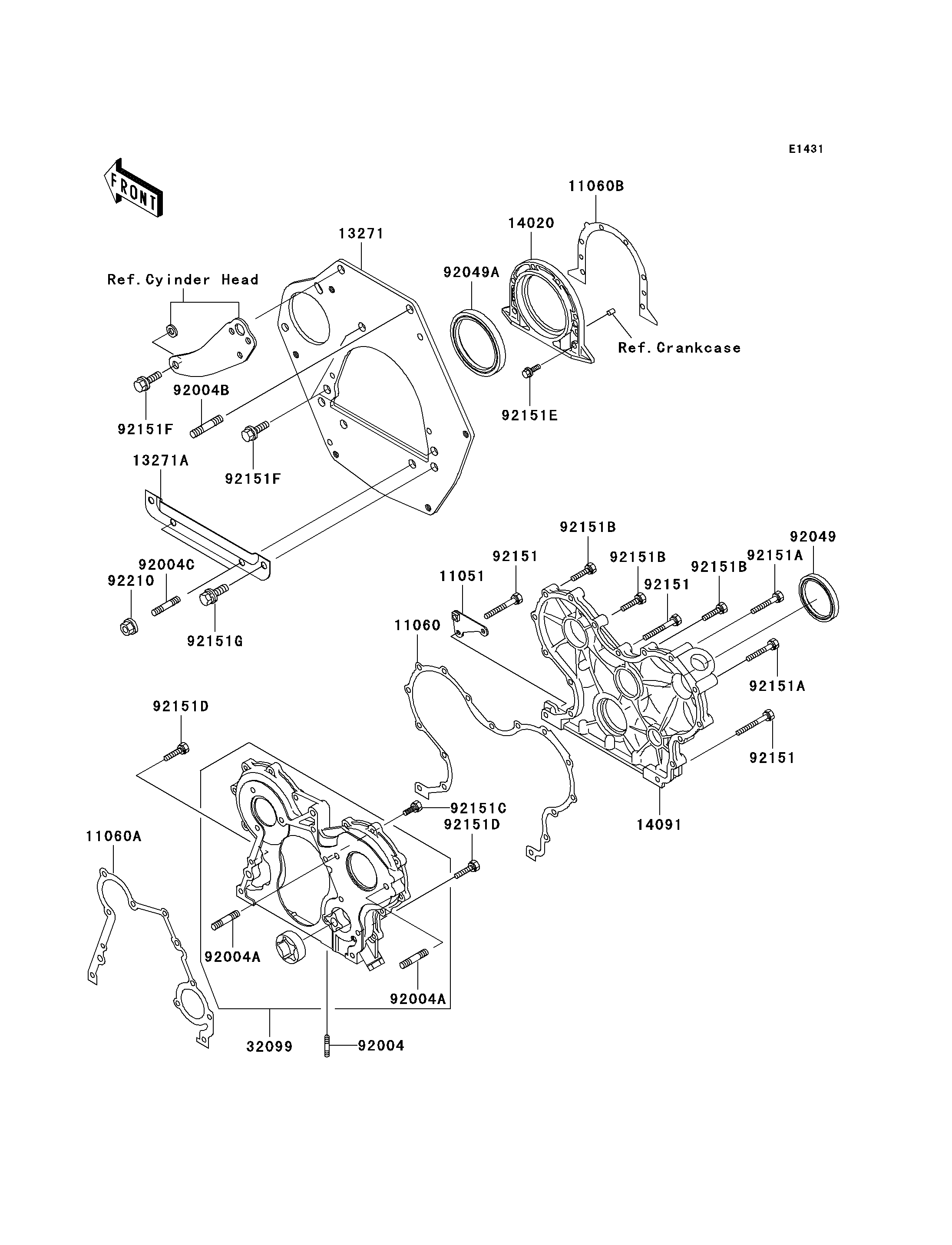

Mule 3010 Diesel 4X4 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11051
11060
11060A
11060B
13271
13271A
14020
14091
32099
92004
92004A
92004A
92004B
92004C
92049
92049A
92151
92151
92151
92151A
92151A
92151B
92151B
92151B
92151C
92151D
92151D
92151E
92151F
92151F
92151G
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11051 11051-1550 1
GASKET,TIMING COVER 11060 11060-1945 1
GASKET,TIMING GEAR CASE 11060A 11060-1946 1
GASKET,RETAINER 11060B 11060-1947 1
PLATE,LEFT END 13271 13271-1358 1
PLATE 13271A 13271-1359 1
RETAINER 14020 14020-1107 1
COVER,TIMING GEAR 14091 14091-1185 1
CASE,TIMING GEAR 32099 32099-1208 1
STUD,6X14 92004 92004-1262 1
STUD,8X28 92004A 92004-1269 2
STUD,10X40 92004B 92004-1270 1
STUD,6X13 92004C 92004-1271 2
SEAL-OIL,AH2847K 92049 92049-1525 1
SEAL-OIL,AH3513F 92049A 92049-1526 1
BOLT,6X55 92151 92151-1662 3
BOLT,6X45 92151A 92151-1663 2
BOLT,6X30 92151B 92151-1664 11
BOLT,6X16 92151C 92151-1665 1
BOLT,6X28 92151D 92151-1666 4
BOLT,6X20 92151E 92151-1667 6
BOLT,10X22 92151F 92151-1668 4
BOLT,6X12 92151G 92151-1669 2
NUT,6MM 92210 92210-1210 2
