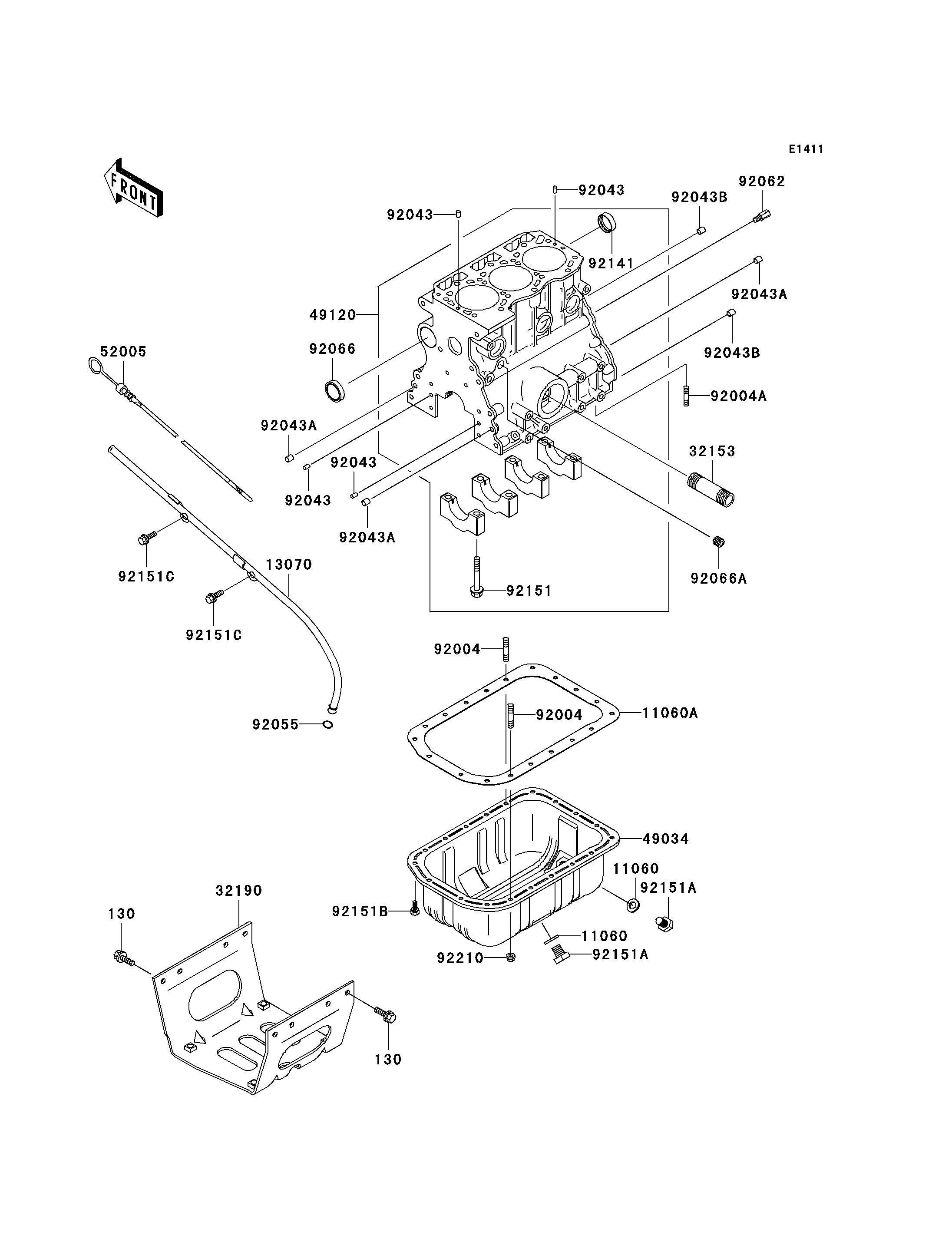

Mule 3010 Diesel 4X4 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
130
130
11060
11060
11060A
13070
32153
32190
49034
49120
52005
92004
92004
92004A
92043
92043
92043
92043
92043A
92043A
92043A
92043B
92043B
92055
92062
92066
92066A
92141
92151
92151A
92151A
92151B
92151C
92151C
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16,BLACK 130 130J0816 8
GASKET,OIL DRAIN BOLT 11060 11060-1942 2
GASKET,OIL PAN 11060A 11060-1943 1
GUIDE,GAUGE 13070 13070-1350 1
PIPE,OIL FILTER 32153 32153-1355 1
BRACKET-ENGINE 32190 32190-1187 1
PAN-OIL 49034 49034-1135 1
CRANKCASE-COMP 49120 49120-0008 1
GAUGE,OIL LEVEL 52005 52005-1139 1
STUD,6X10 92004 92004-1261 2
STUD,6X14 92004A 92004-1262 1
PIN,6MM 92043 92043-1609 4
PIN,8MM 92043A 92043-1610 3
PIN,8MM 92043B 92043-1611 2
RING-O 92055 92055-1625 1
NOZZLE 92062 92062-1088 1
PLUG 92066 92066-1526 1
PLUG,CRANKCASE 92066A 92066-1527 1
BUSHING,CRANKCASE 92141 92141-1053 1
BOLT,CRANKSHAFT 92151 92151-1655 8
BOLT,OIL DRAIN 92151A 92151-1656 2
BOLT,6X12 92151B 92151-1657 17
BOLT,8X14 92151C 92151-1658 2
NUT,6MM 92210 92210-1208 2
