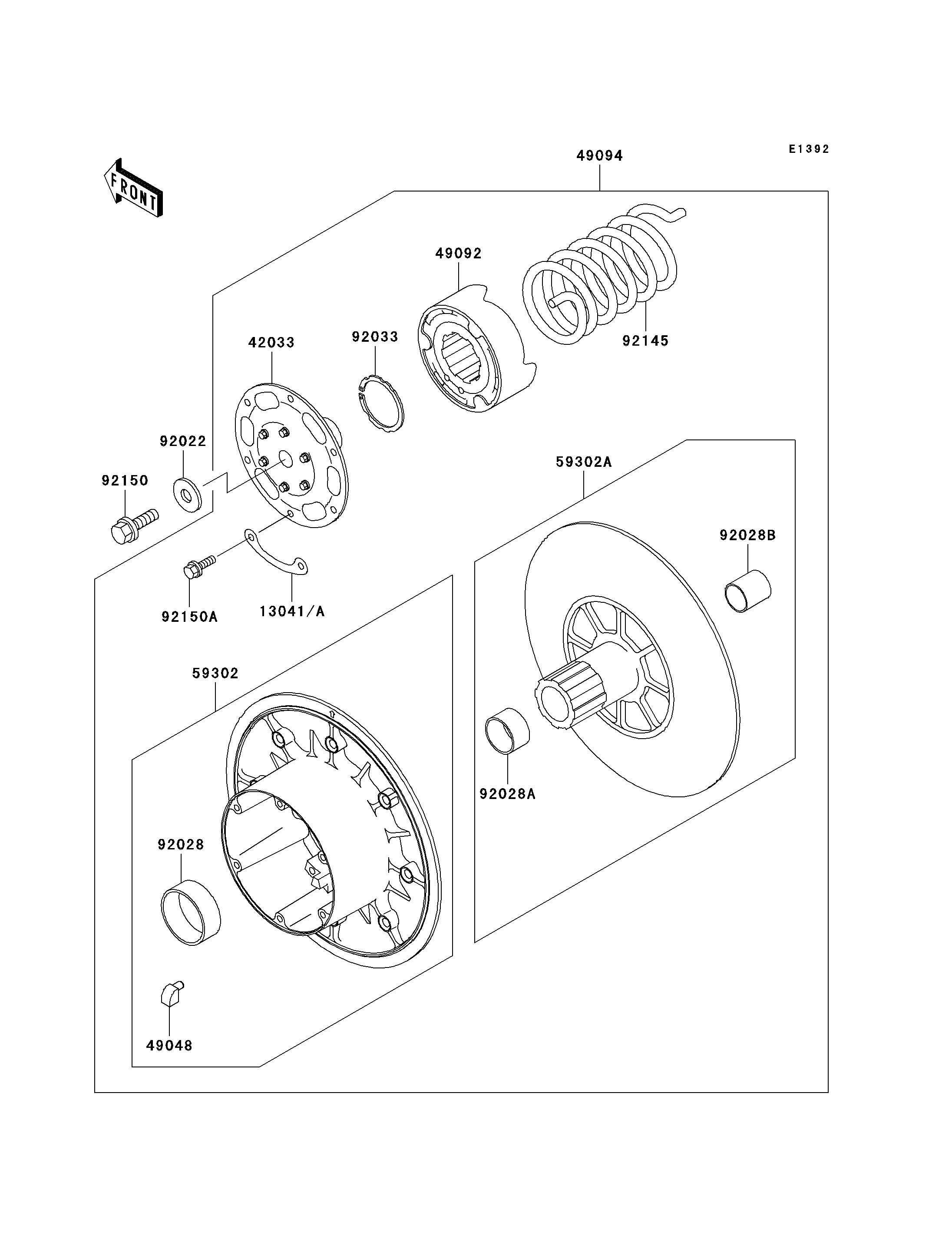

Mule 3010 Diesel 4X4 - Driven Converter
13041
13041A
42033
49048
49092
49094
59302
59302A
92022
92028
92028A
92028B
92033
92145
92150
92150A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BALANCER,T=0.8 | 13041 | 13041-1084 | AR | ||
| BALANCER,T=1.0 | 13041A | 13041-1085 | AR | ||
| COUPLING-ASSY | 42033 | 42033-1124 | 1 | ||
| SHOE | 49048 | 49048-1057 | 3 | ||
| RAMP | 49092 | 49092-1064 | 1 | ||
| CONVERTER-ASSY-DRIVEN | 49094 | 49094-1075 | 1 | ||
| SHEAVE-COMP | 59302 | 59302-1086 | 1 | ||
| SHEAVE-COMP,MOVABLE | 59302A | 59302-1087 | 1 | ||
| WASHER,12.5X32X3.2 | 92022 | 92022-1982 | 1 | ||
| BUSHING,50X55X20 | 92028 | 92028-1512 | 1 | ||
| BUSHING,32X36X20 | 92028A | 92028-1513 | 1 | ||
| BUSHING,25X28X30 | 92028B | 92028-1514 | 1 | ||
| RING-SNAP | 92033 | 92033-1241 | 1 | ||
| SPRING,DRIVEN CONVERTER | 92145 | 92145-1350 | 1 | ||
| BOLT,12X35 | 92150 | 92150-1009 | 1 | ||
| BOLT,6X20 | 92150A | 92150-1014 | 6 |
