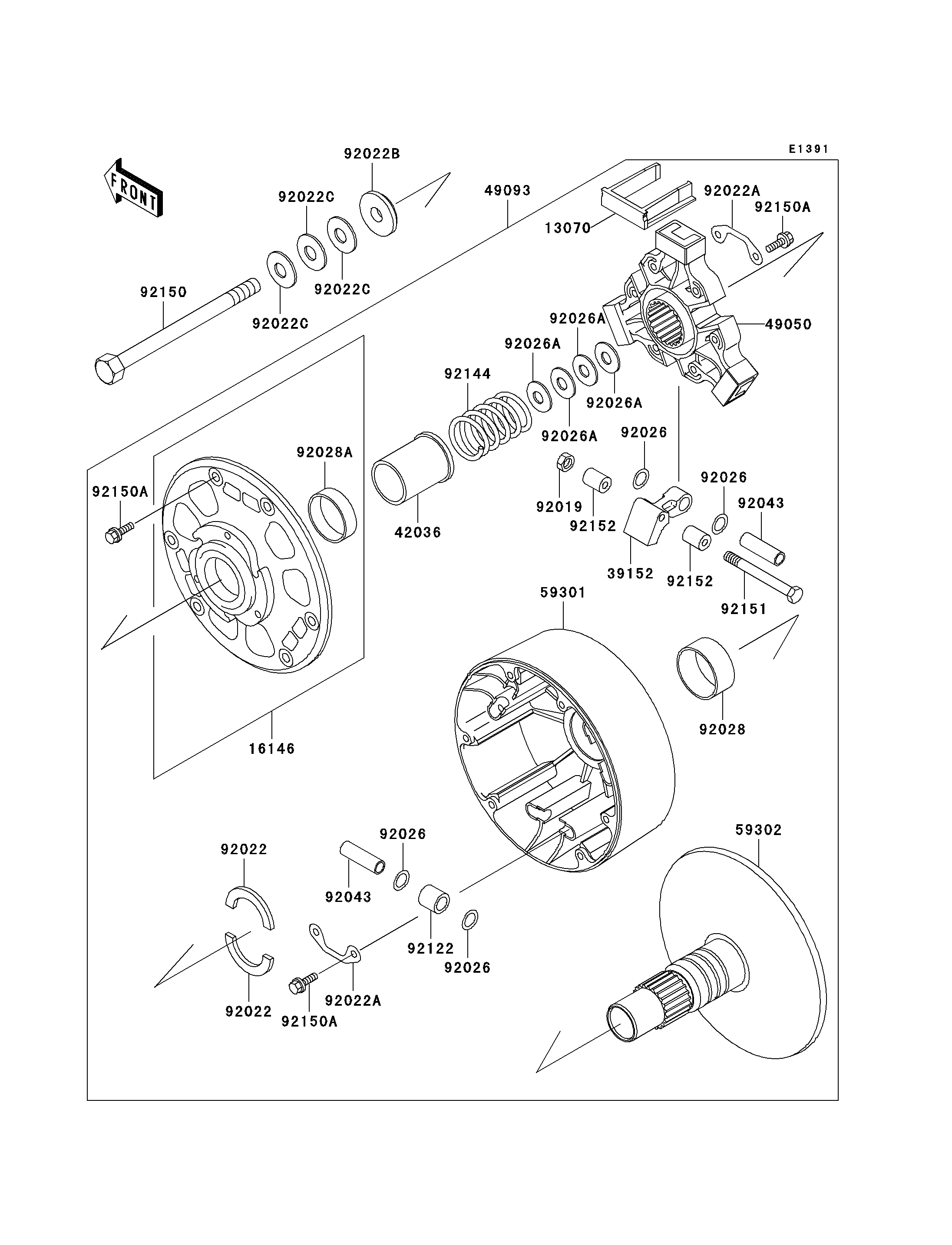

Mule 3010 Diesel 4X4 - Drive Converter

DOWNLOAD PDF
SELECT A NEW PART
13070
16146
39152
42036
49050
49093
59301
59302
92019
92022
92022
92022A
92022A
92022B
92022C
92022C
92022C
92026
92026
92026
92026
92026A
92026A
92026A
92026A
92028
92028A
92043
92043
92122
92144
92150
92150A
92150A
92150A
92151
92152
92152
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE 13070 13070-1344 3
COVER-ASSY 16146 16146-1088 1
WEIGHT-RAMP 39152 39152-1075 3
SLEEVE 42036 42036-1221 1
SPIDER 49050 49050-1053 1
CONVERTER-ASSY-DRIVE 49093 49093-1068 1
SHEAVE-MOVABLE 59301 59301-1058 1
SHEAVE-COMP 59302 59302-1055 1
NUT,LOCK,6MM 92019 92019-008 3
WASHER,SPLIT 92022 92022-1897 2
WASHER 92022A 92022-1899 6
WASHER,SLEEVE 92022B 92022-1900 1
WASHER,SPECIAL CONICAL 92022C 92022-1901 3
SPACER,10X16X0.8 92026 92026-1304 12
SPACER,48.7X57.5X1.0 92026A 92026-1498 4
BUSHING,43X47X20 92028 92028-1508 1
BUSHING,40X44X12 92028A 92028-1511 1
PIN,6.5X10X38 92043 92043-1370 6
ROLLER 92122 92122-1152 3
SPRING,DRIVE 92144 92144-1196 1
BOLT,12X163.5 92150 92150-1008 1
BOLT,6X20 92150A 92150-1014 18
BOLT,6X72 92151 92151-1815 3
COLLAR,6X14X19 92152 92152-1265 6
