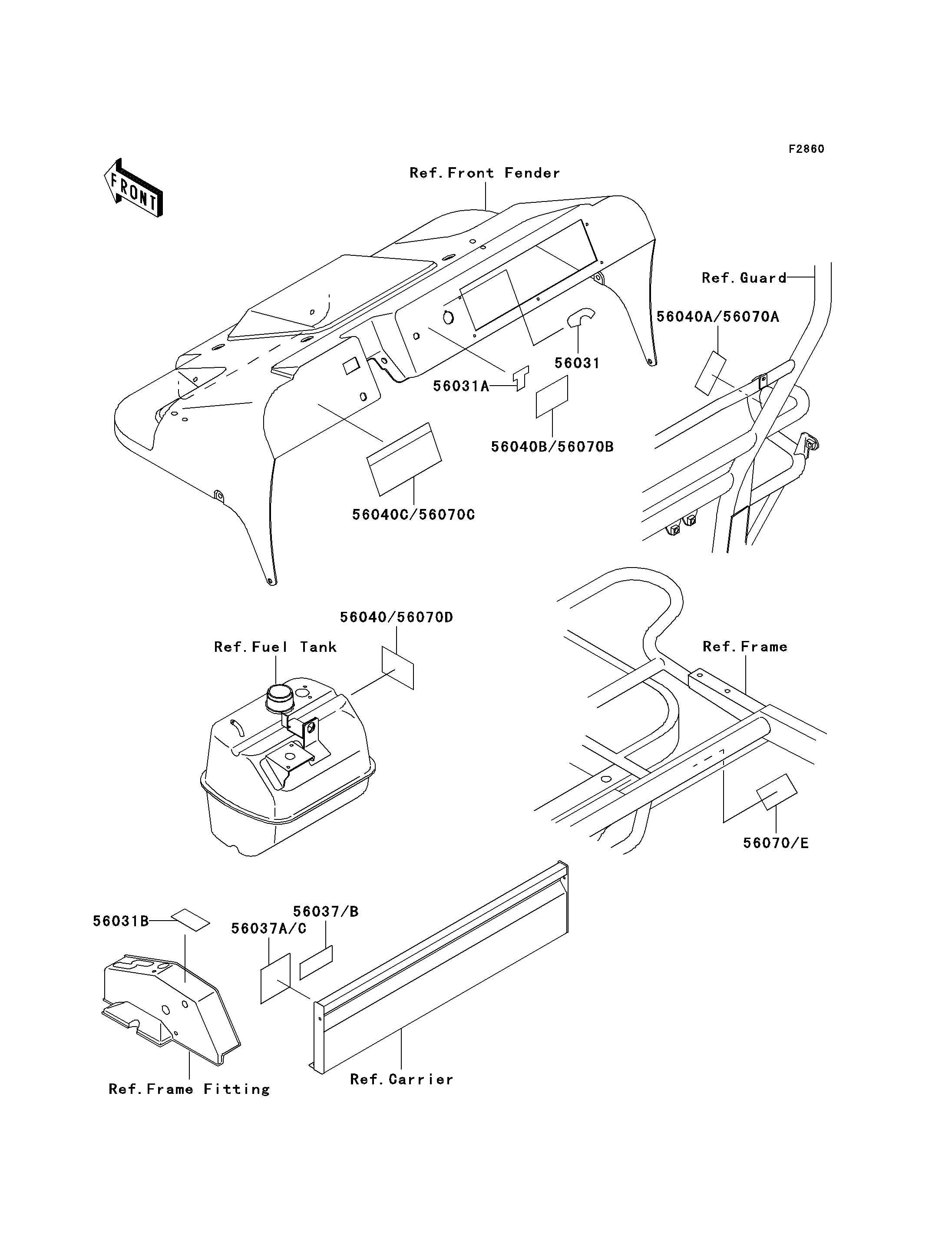

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL-MANUAL,IGNITION SWITCH | 56031 | 56031-1740 | 1 | ||
| LABEL-MANUAL,LIGHTING SWITCH | 56031A | 56031-1741 | 1 | ||
| LABEL-MANUAL,SHIFT CONTROL | 56031B | 56031-1742 | 1 | ||
| LABEL-SPECIFICATION,CARGO CAPA | 56037 | 56037-1526 | 1 | ||
| LABEL-SPECIFICATION,TIRE INFO | 56037A | 56037-1736 | 1 | ||
| LABEL-WARNING,FUEL TANK | 56040 | 56040-1241 | 1 | ||
| LABEL-WARNING,BED RAISED | 56040A | 56040-1242 | 1 | ||
| LABEL-WARNING,OFF-HIGHWAY | 56040B | 56040-1317 | 1 | ||
| LABEL-WARNING,GENERAL | 56040C | 56040-1339 | 1 | ||
| LABEL-WARNING,HOT SURFACES | 56070 | 56070-1125 | 1 | ||
| LABEL,CARGO CAPA(FRENCH) | 56037B | 56037-1919 | 1 | CN | |
| LABEL,TIRE INFO(FRENCH) | 56037C | 56037-1920 | 1 | CN | |
| LABEL,BED RAISED(FRENCH) | 56070A | 56070-1204 | 1 | CN | |
| LABEL,OFF-HIGHWAY(FRENCH) | 56070B | 56070-1205 | 1 | CN | |
| LABEL,GENERAL(FRENCH) | 56070C | 56070-1206 | 1 | CN | |
| LABEL,GASOLINE(FRENCH) | 56070D | 56070-1218 | 1 | CN | |
| LABEL,HOT SURFACES(FRENCH) | 56070E | 56070-1234 | 1 | CN |
| LABEL-MANUAL,IGNITION SWITCH | |
| REF # | 56031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
