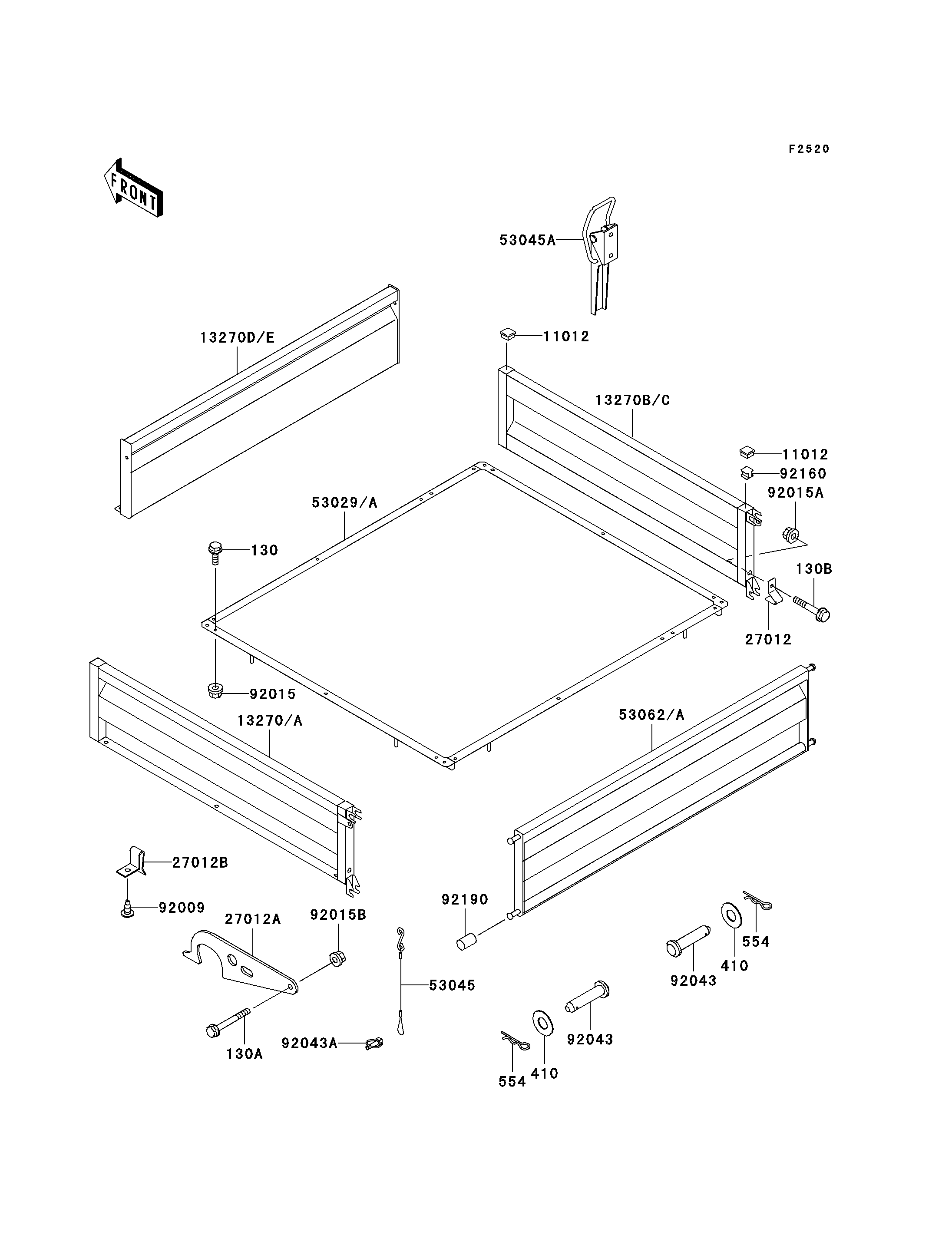

Mule 550 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
410
410
554
554
11012
11012
13270
13270A
13270B
13270C
13270D
13270E
27012
27012A
27012B
53029
53029A
53045
53045A
53062
53062A
92009
92015
92015A
92015B
92043
92043
92043A
92160
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16,BLACK 130 130J0616 11
BOLT-FLANGED,6X40,BLACK 130A 130J0640 1
BOLT-FLANGED,8X50 130B 130J0850 2
WASHER-PLAIN-SMALL,12MM 410 410B1200 2
PIN-SNAP,12MM 554 554A1200 2
CAP 11012 11012-1784 4
PLATE,CARRIER,SIDE,LH,H.GREEN 13270 13270-1090-B9 1
PLATE,CARRIER,SIDE,LH,A.RED 13270A 13270-1090-467 1
PLATE,CARRIER,SIDE,RH,H.GREEN 13270B 13270-1092-B9 1
PLATE,CARRIER,SIDE,RH,A.RED 13270C 13270-1092-467 1
PLATE,CARRIER,FR,H.GREEN 13270D 13270-1677-B9 1
PLATE,CARRIER,FR,A.RED 13270E 13270-1677-467 1
HOOK,TAIL GATE 27012 27012-1406 2
HOOK,CARRIER 27012A 27012-1444 1
HOOK,CARRIER 27012B 27012-1445 1
CARRIER,H.GREEN 53029 53029-1192-B9 1
CARRIER,A.RED 53029A 53029-1192-467 1
HOOK-ASSY,TALE GATE 53045 53045-1060 2
HOOK-ASSY 53045A 53045-1063 1
GATE-TAIL,H.GREEN 53062 53062-1005-B9 1
GATE-TAIL,A.RED 53062A 53062-1005-467 1
SCREW 92009 92009-1166 1
NUT,FLANGED,6MM 92015 92015-1386 11
NUT,FLANGED,8MM 92015A 92015-1408 2
NUT,LOCK,FLANGED,6MM 92015B 92015-1675 1
PIN,12X54 92043 92043-1451 2
PIN 92043A 92043-1490 2
DAMPER 92160 92160-1191 2
TUBE,8X10X15 92190 92190-1467 2
