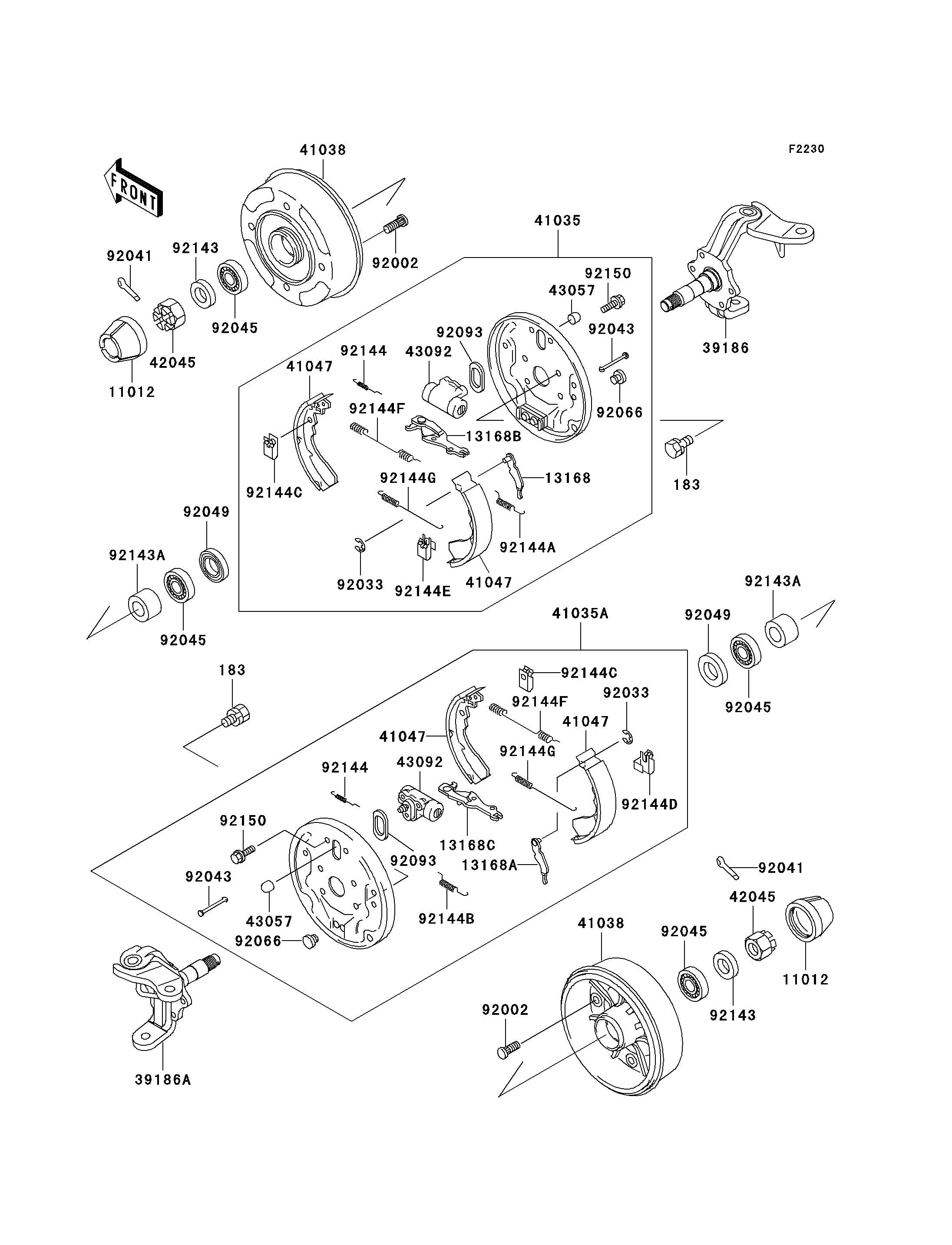

Mule 550 - Front Hubs/Brakes

DOWNLOAD PDF
SELECT A NEW PART
183
183
11012
11012
13168
13168A
13168B
13168C
39186
39186A
41035
41035A
41038
41038
41047
41047
41047
41047
42045
42045
43057
43057
43092
43092
92002
92002
92033
92033
92041
92041
92043
92043
92045
92045
92045
92045
92049
92049
92066
92066
92093
92093
92143
92143
92143A
92143A
92144
92144
92144A
92144B
92144C
92144C
92144D
92144E
92144F
92144F
92144G
92144G
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS-SMALL 183 183H0814 8
CAP,WHEEL 11012 11012-1969 2
LEVER,STOPPER,LH 13168 13168-1477 1
LEVER,STOPPER,RH 13168A 13168-1478 1
LEVER,LH 13168B 13168-1479 1
LEVER,RH 13168C 13168-1480 1
KNUCKLE,LH 39186 39186-1102 1
KNUCKLE,RH 39186A 39186-1103 1
PANEL-ASSY-BRAKE,FR,LH 41035 41035-1280 1
PANEL-ASSY-BRAKE,FR,RH 41035A 41035-1281 1
DRUM,FRONT BRAKE 41038 41038-1238 2
SHOE-ASSY-BRAKE,FR 41047 41047-1051 4
NUT,CASTLE,18MM 42045 42045-018 2
CAP-BREATHER 43057 43057-1053 2
CYLINDER 43092 43092-1057 2
BOLT,10X30 92002 92002-1388 8
RING-SNAP 92033 92033-1279 2
COTTER,4.0X35 92041 92041-1053 2
PIN,SHOE HOLD 92043 92043-1460 4
BEARING-BALL,60/222RS 92045 92045-1170 4
SEAL-OIL 92049 92049-1284 2
PLUG 92066 92066-1365 2
SEAL 92093 92093-1332 2
COLLAR,22.2X28.6X9 92143 92143-1454 2
COLLAR,22.2X28.6X25 92143A 92143-1455 2
SPRING 92144 92144-1604 2
SPRING,LH 92144A 92144-1607 1
SPRING,RH 92144B 92144-1608 1
SPRING,SHOE HOLD 92144C 92144-1609 2
SPRING,SHOE HOLD 92144D 92144-1610 1
SPRING,SHOE HOLD 92144E 92144-1611 1
SPRING,RETURN,UPP 92144F 92144-1612 2
SPRING,RETURN,LWR 92144G 92144-1613 2
BOLT,FLANGED,6X10 92150 92150-1664 4
