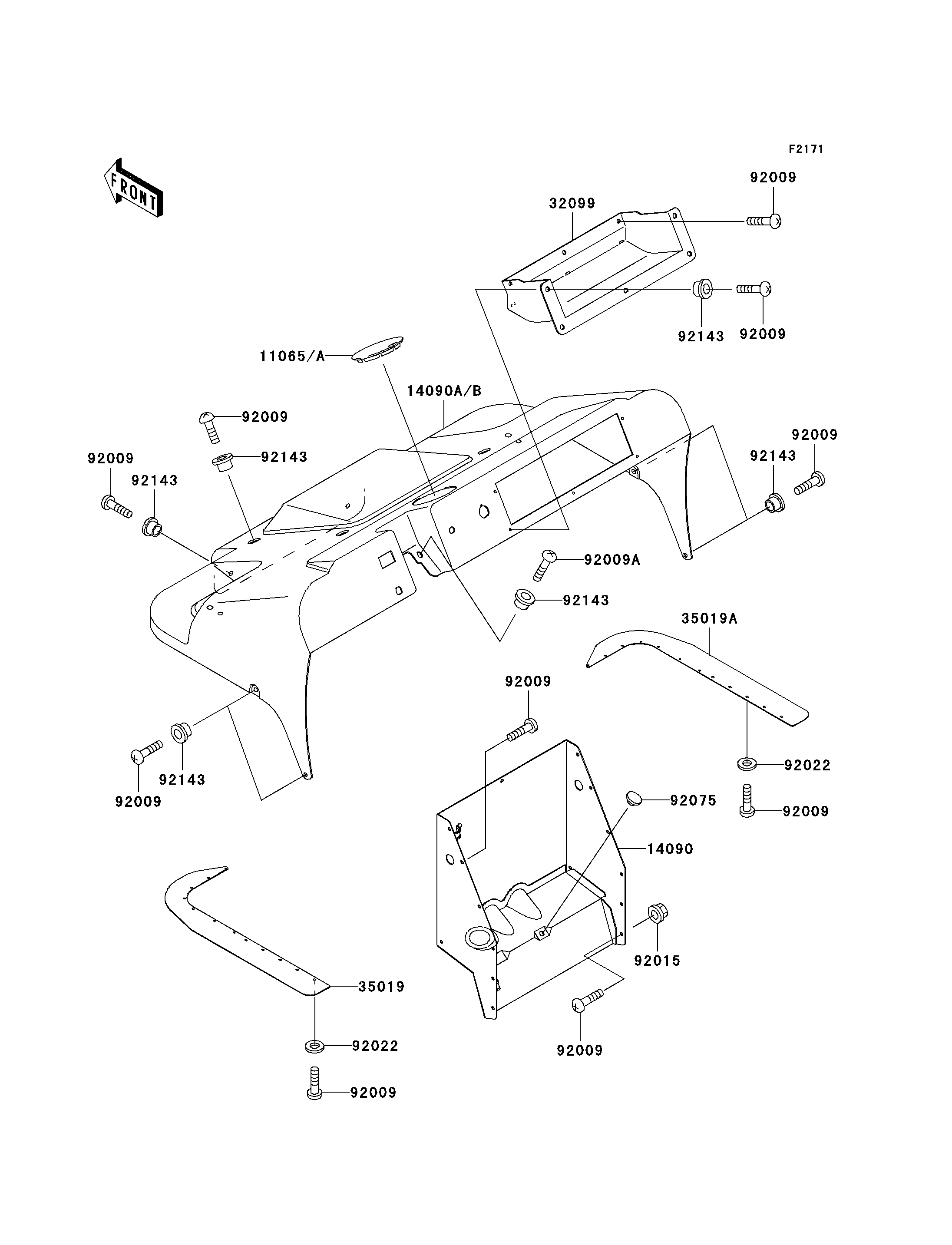

Parts Diagrams |
11065
11065A
14090
14090A
14090B
32099
35019
35019A
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92015
92022
92022
92075
92143
92143
92143
92143
92143
92143
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,A.RED | 11065 | 11065-1053-260 | 1 | ||
| CAP,LH,H.GREEN | 11065A | 11065-1053-6A | 1 | ||
| COVER,FR,CNT | 14090 | 14090-1742 | 1 | ||
| COVER,FR,UPP,A.RED | 14090A | 14090-1743-260 | 1 | ||
| COVER,FR,UPP,H.GREEN | 14090B | 14090-1743-6A | 1 | ||
| CASE,STORAGE | 32099 | 32099-1174 | 1 | ||
| FLAP,FR,SIDE,LH | 35019 | 35019-1343 | 1 | ||
| FLAP,FR,SIDE,RH | 35019A | 35019-1346 | 1 | ||
| SCREW | 92009 | 92009-1166 | 42 | ||
| SCREW,6X16 | 92009A | 92009-1621 | 14 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 12 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 24 | ||
| DAMPER | 92075 | 92075-281 | 1 | ||
| COLLAR | 92143 | 92143-1087 | 17 |
