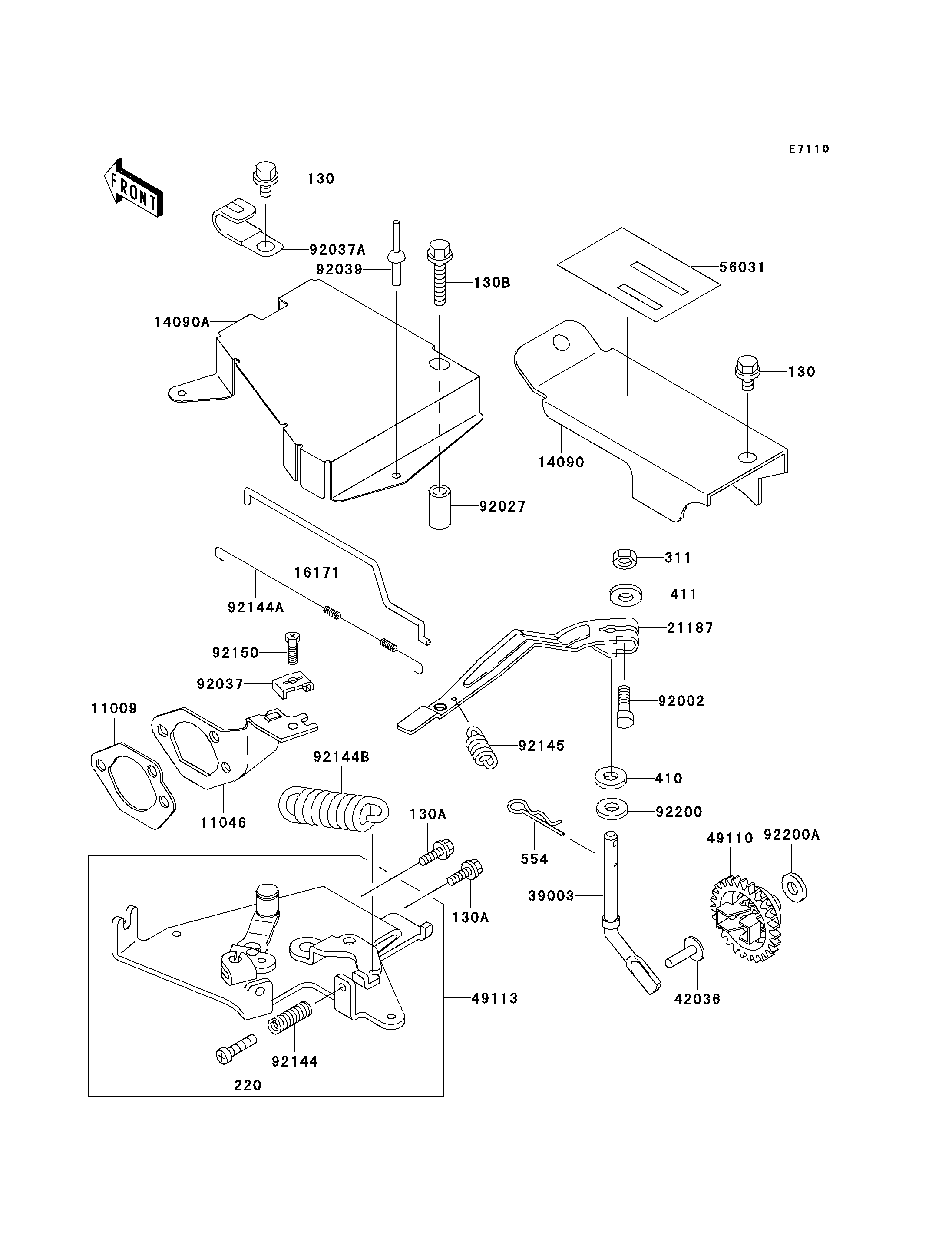

Mule 550 - Control

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
130B
220
311
410
411
554
11009
11046
14090
14090A
16171
21187
39003
42036
49110
49113
56031
92002
92027
92037
92037A
92039
92144
92144A
92144B
92145
92150
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X12 130 130B0812 3
BOLT-FLANGED,6X12 130A 130G0612 2
BOLT-FLANGED,8X30 130B 130J0830 1
SCREW-PAN-CROS 220 220B0522 2
NUT-HEX,6MM 311 311B0600 1
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
WASHER-PLAIN,6MM 411 411B0600 1
PIN-SNAP 554 554A0600 1
GASKET 11009 11009-2925 1
BRACKET 11046 11046-2102 1
COVER 14090 14090-1141 1
COVER 14090A 14090-1361 1
LINK,THROTTLE 16171 16171-2061 1
ARM-ASSY 21187 21187-2066 1
ARM-PIVOT 39003 39003-2076 1
SLEEVE 42036 42036-2060 1
GOVERNOR-ASSY 49110 49110-2069 1
PANEL-COMP-CONTROL 49113 49113-2127 1
LABEL-MANUAL,OIL CAPACITY 56031 56031-1790 1
BOLT,6X28 92002 92002-2269 1
COLLAR,9X13X17.2 92027 92027-1064 1
CLAMP 92037 92037-2020 1
CLAMP 92037A 92037-2098 1
RIVET,BLIND,4.0X9.2 92039 92039-1163 2
SPRING 92144 92144-2266 2
SPRING 92144A 92144-2340 1
SPRING 92144B 92144-2345 1
SPRING 92145 92145-2054 1
BOLT,5X18 92150 92150-2182 1
WASHER,6.5X11.5X2.0 92200 92200-2029 1
WASHER,6.2X20X0.5 92200A 92200-2036 1
