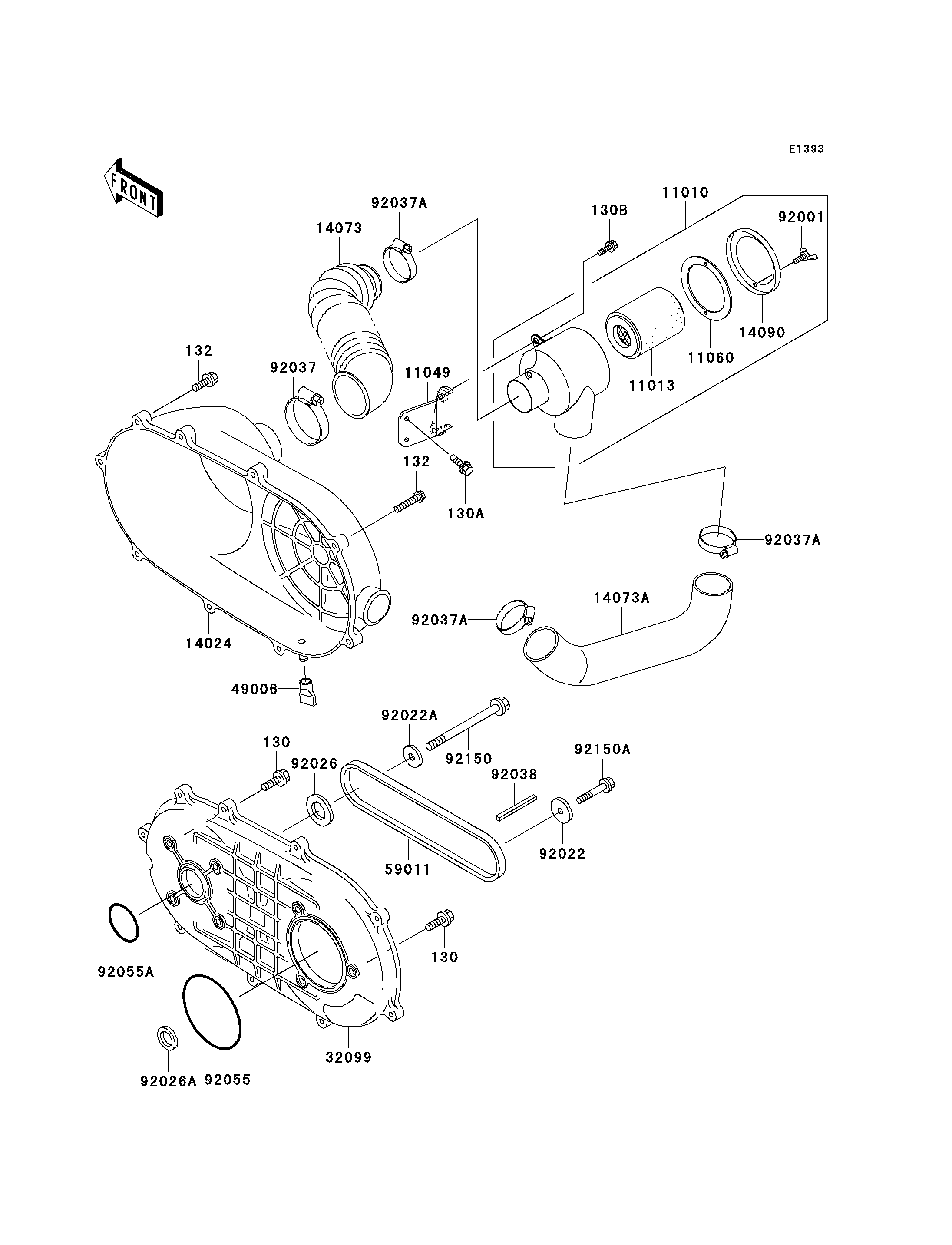

Mule 550 - Converter Cover/Drive Belt

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
132
132
11010
11013
11049
11060
14024
14073
14073A
14090
32099
49006
59011
92001
92022
92022A
92026
92026A
92037
92037A
92037A
92037A
92038
92055
92055A
92150
92150A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0820 7
BOLT-FLANGED,6X16,BLACK 130A 130J0616 2
BOLT-FLANGED,8X16,BLACK 130B 130J0816 2
BOLT-FLANGED-SMALL 132 132J0630 9
FILTER-ASSY-AIR 11010 11010-1735 1
ELEMENT-AIR FILTER 11013 11013-1263 1
BRACKET,AIR FILTER 11049 11049-1939 1
GASKET,AIR FILTER CASE 11060 11060-1975 1
COVER,BELT CONVERTER 14024 14024-1981 1
DUCT,BELT CONVERTER 14073 14073-1492 1
DUCT,AIR FILTER 14073A 14073-1681 1
COVER,AIR FILTER 14090 14090-1766 1
CASE,BELT CONVERTER 32099 32099-1125 1
BOOT 49006 49006-1199 1
BELT 59011 59011-1071 1
BOLT,WING,6X15 92001 92001-1703 2
WASHER,8.5X36X4 92022 92022-1633 1
WASHER,10X32X4.5 92022A 92022-1641 1
SPACER 92026 92026-1395 1
SPACER 92026A 92026-1396 1
CLAMP 92037 92037-3738 1
CLAMP 92037A 92037-506 3
KEY 92038 92038-1053 1
RING-O 92055 92055-1486 1
RING-O,50X4 92055A 92055-1501 1
BOLT,10X102 92150 92150-1441 1
BOLT,8X40 92150A 92150-1687 1
