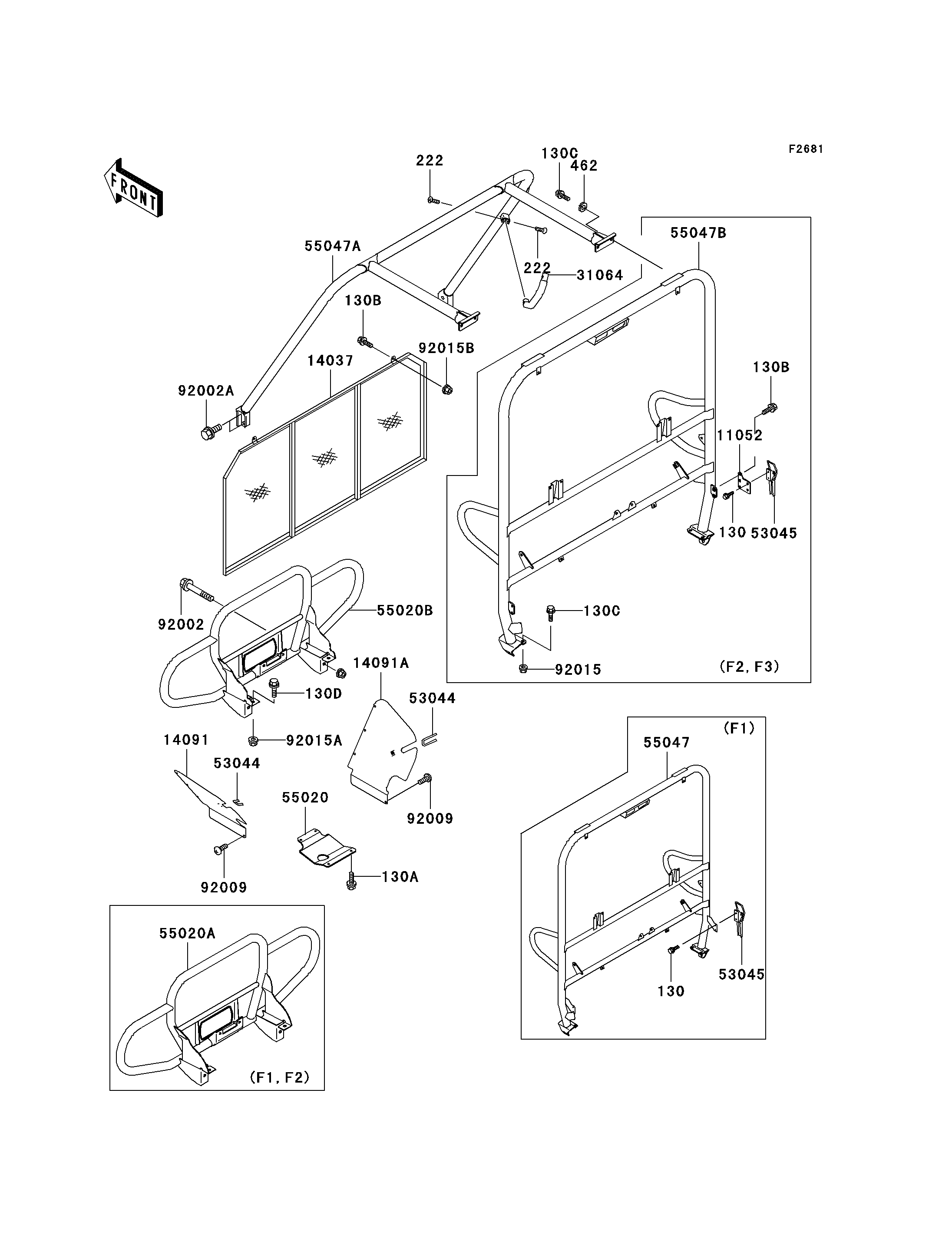

Mule 3020 Turf - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130B
130B
130C
130C
130D
222
222
462
14037
14091
14091A
31064
53044
53044
53045
53045
55020
55020A
55047
55047A
92002
92002A
92009
92009
92015
92015A
92015B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 4
BOLT-FLANGED,6X16,BLACK 130A 130J0616 4
BOLT-FLANGED,8X20 130B 130J0820 6
BOLT-FLANGED,10X20 130C 130J1020 10
BOLT-FLANGED 130D 130P1225 2
SCREW-CSK-RD-CROS 222 222C0612 4
WASHER-SPRING,10MM 462 462K1000 4
SCREEN,REAR GUARD 14037 14037-1287 1
COVER,FR,LH 14091 14091-1142 1
COVER,FR,RH 14091A 14091-1143 1
PIPE-COMP 31064 31064-1238 1
TRIM 53044 53044-1137 2
HOOK-ASSY 53045 53045-1063 2
GUARD,GEAR CASE 55020 55020-1449 1
GUARD,FR 55020A 55020-1752 1
BAR-COMP,RR 55047 55047-1013 1
BAR-COMP,FR 55047A 55047-1016 1
BOLT,SUSPENSION ROD 92002 92002-1661 2
BOLT,14X36 92002A 92002-1862 4
SCREW 92009 92009-1166 8
NUT,FLANGED,10MM 92015 92015-1366 4
NUT,FLANGED,12MM 92015A 92015-1433 4
NUT,FLANGED,LOCK,8MM 92015B 92015-1696 6
