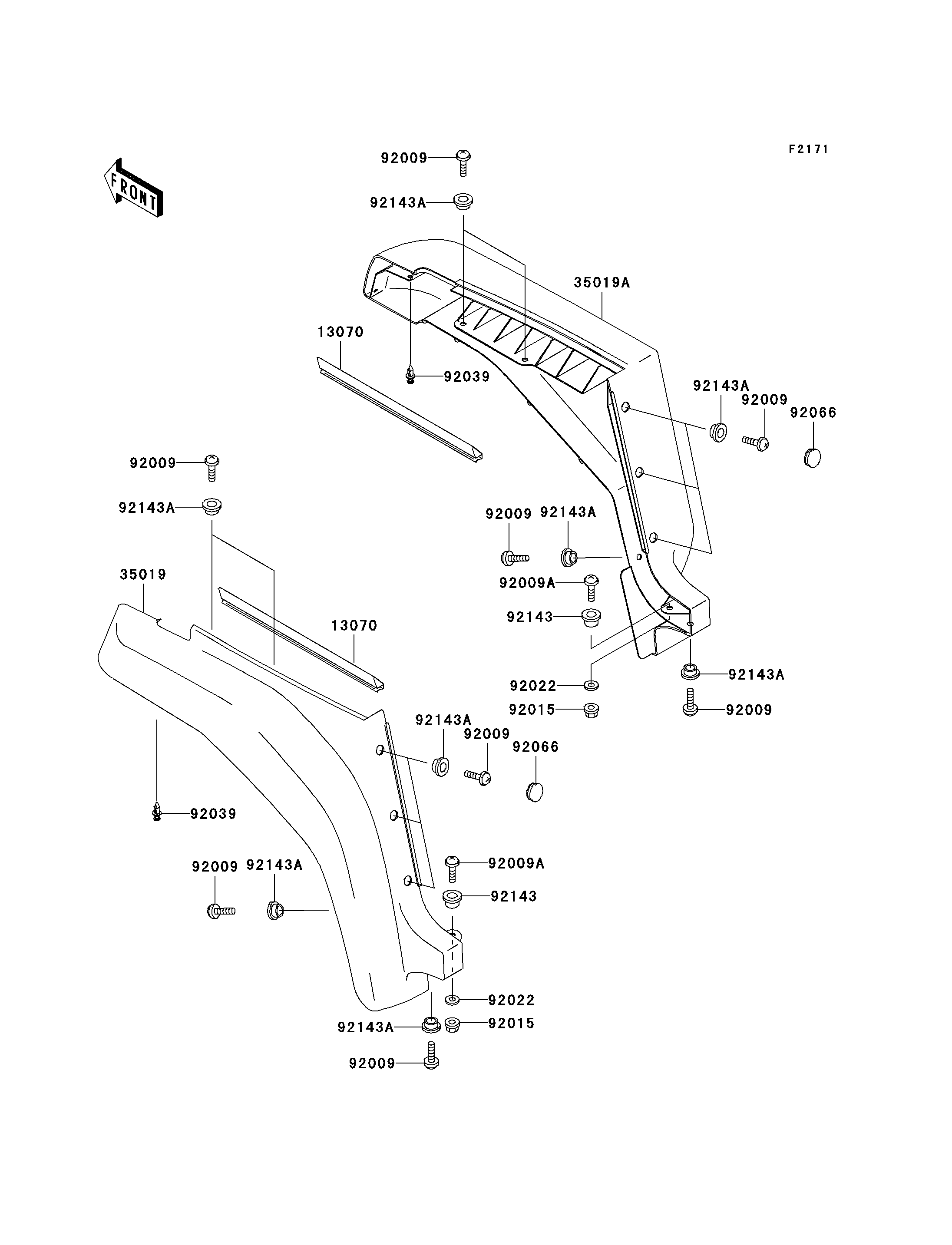

Mule 3020 Turf - Front Fender(s)(KAF620-F1)

DOWNLOAD PDF
SELECT A NEW PART
13070
13070
35019
35019A
92009
92009
92009
92009
92009
92009
92009
92009
92009A
92009A
92015
92015
92022
92022
92039
92039
92066
92066
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
92143A
92143A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,FRONT FLAP 13070 13070-1371 2
FLAP,FR,LH,F.BLACK 35019 35019-1376-6Z 1
FLAP,FR,RH,F.BLACK 35019A 35019-1377-6Z 1
SCREW 92009 92009-1166 16
SCREW,6X22,BLACK 92009A 92009-1256 2
NUT,LOCK,FLANGED,6MM 92015 92015-1675 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 2
RIVET 92039 92039-1229 8
PLUG 92066 92066-1231 6
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 16
