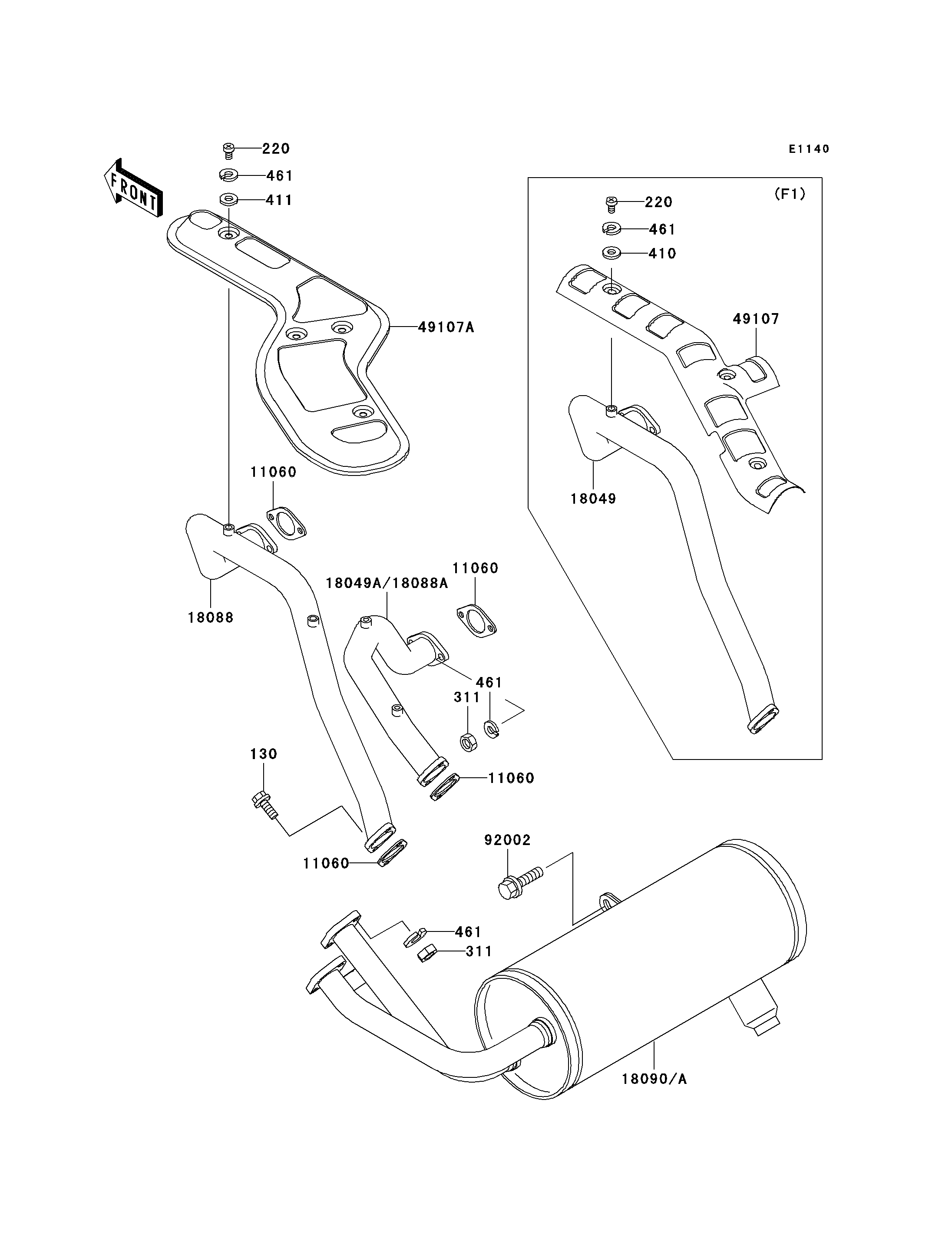

Parts Diagrams |
130
220
220
311
311
410
461
461
461
461
11060
11060
11060
11060
18049
18049A
18090
18090A
49107
92002
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X25 | 130 | 130G0625 | 4 | ||
| SCREW-PAN-CROS,6X10,BLACK | 220 | 220C0610 | 3 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 8 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 3 | ||
| WASHER-SPRING,6MM | 461 | 461F0600 | 11 | ||
| GASKET,EXHAUST PIPE | 11060 | 11060-2079 | 4 | ||
| PIPE-EXHAUST,FR | 18049 | 18049-1735 | 1 | ||
| PIPE-EXHAUST,RR | 18049A | 18049-1736 | 1 | ||
| BODY-COMP-MUFFLER | 18090 | 18090-1451 | 1 | ||
| BODY-COMP-MUFFLER | 18090A | 18090-1912 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1089 | 1 | ||
| BOLT,8X20 | 92002 | 92002-1250 | 3 |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X10,BLACK | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,FR | |
| REF # | 18049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST,RR | |
| REF # | 18049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X20 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
