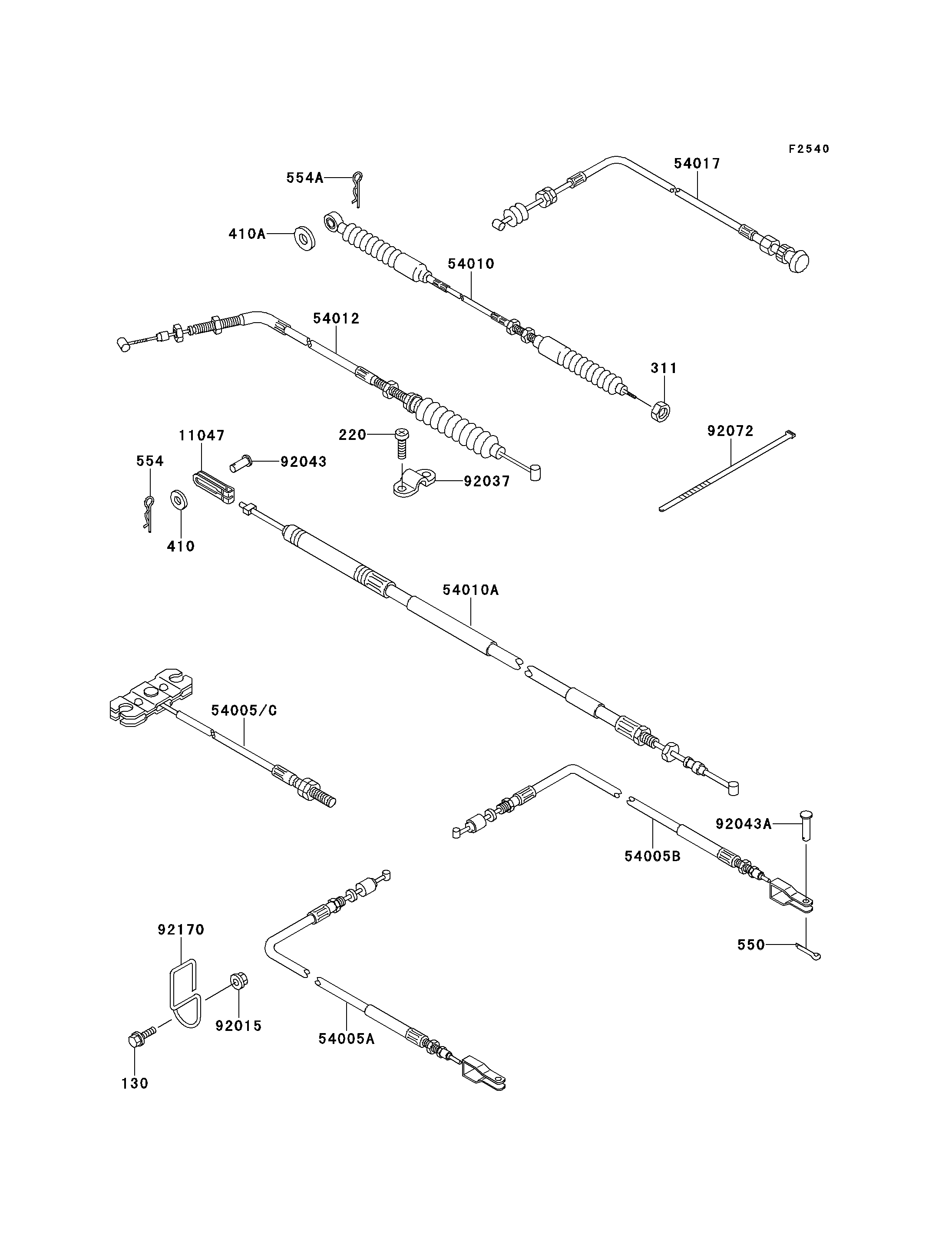

Mule 2500 - Cables

DOWNLOAD PDF
SELECT A NEW PART
130
220
311
410
410A
550
554
554A
11047
54005
54005A
54005B
54010
54010A
54012
54017
92015
92037
92043
92043A
92072
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130D0620 1
SCREW-PAN-CROS,5X14 220 220D0514 2
NUT-HEX,6MM 311 311B0600 1
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
W-PLAIN-S,8MM 410A 410E0800 1
PIN-COTTER,2.0X22 550 550D2022 2
PIN-SNAP 554 554A0600 1
PIN-SNAP,8MM 554A 554A0800 1
BRACKET,DIFF LOCK 11047 11047-1043 1
CABLE-BRAKE,PARKING,FR 54005 54005-1160 1
CABLE-BRAKE,PARKING,RR,LH 54005A 54005-1172 1
CABLE-BRAKE,PARKING,RR,RH 54005B 54005-1173 1
CABLE,SHIFT CONTROL 54010 54010-1089 1
CABLE,DIFF LOCK 54010A 54010-1091 1
CABLE-THROTTLE 54012 54012-1456 1
CABLE-STARTER 54017 54017-1168 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
CLAMP,CABLE 92037 92037-1933 1
PIN,6X11 92043 92043-092 1
PIN 92043A 92043-1039 2
BAND,L=188 92072 92072-1239 7
CLAMP,CABLE 92170 92170-1372 1
