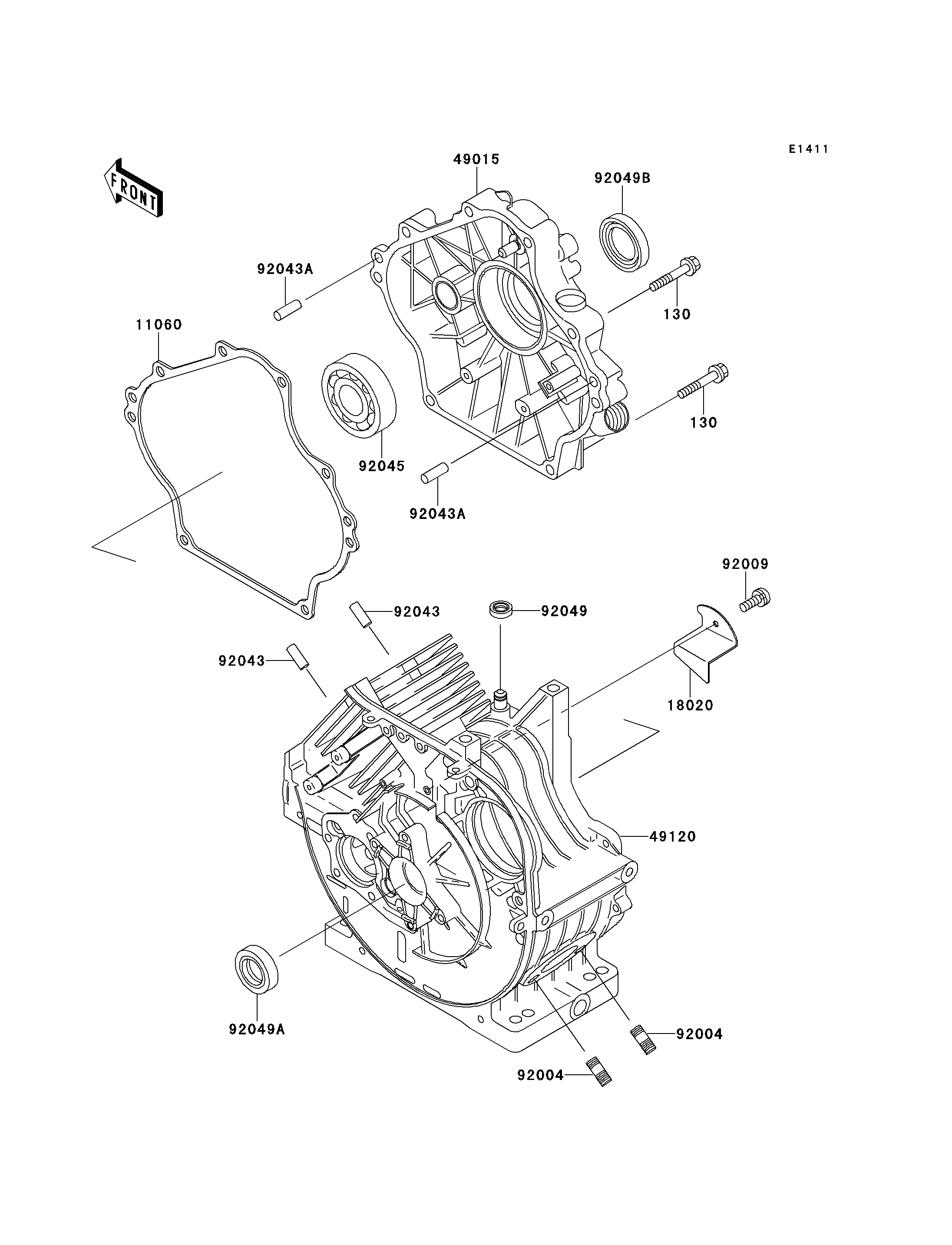

Parts Diagrams |
130
130
11060
18020
49015
49120
92004
92004
92009
92043
92043
92043A
92043A
92045
92049
92049A
92049B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130T0845 | 8 | ||
| GASKET,CRANKCASE COVER | 11060 | 11060-2122 | 1 | ||
| BAFFLE | 18020 | 18020-2060 | 1 | ||
| COVER-CRANKCASE | 49015 | 49015-6099 | 1 | ||
| CRANKCASE-COMP | 49120 | 49120-6062 | 1 | ||
| STUD,6X14 | 92004 | 92004-2083 | 4 | ||
| SCREW | 92009 | 92009-2308 | 1 | ||
| PIN,DOWEL,10X14 | 92043 | 92043-1037 | 2 | ||
| PIN,6.2X8X14 | 92043A | 92043-1263 | 2 | ||
| BEARING-BALL,6306JRCM | 92045 | 92045-2168 | 1 | ||
| SEAL-OIL,VC-6X10X2.5 | 92049 | 92049-2097 | 1 | ||
| SEAL-OIL | 92049A | 92049-2199 | 1 | ||
| SEAL-OIL | 92049B | 92049-2220 | 1 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| GASKET,CRANKCASE COVER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAFFLE | |
| REF # | 18020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-CRANKCASE | |
| REF # | 49015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKCASE-COMP | |
| REF # | 49120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,6X14 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6306JRCM | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,VC-6X10X2.5 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
