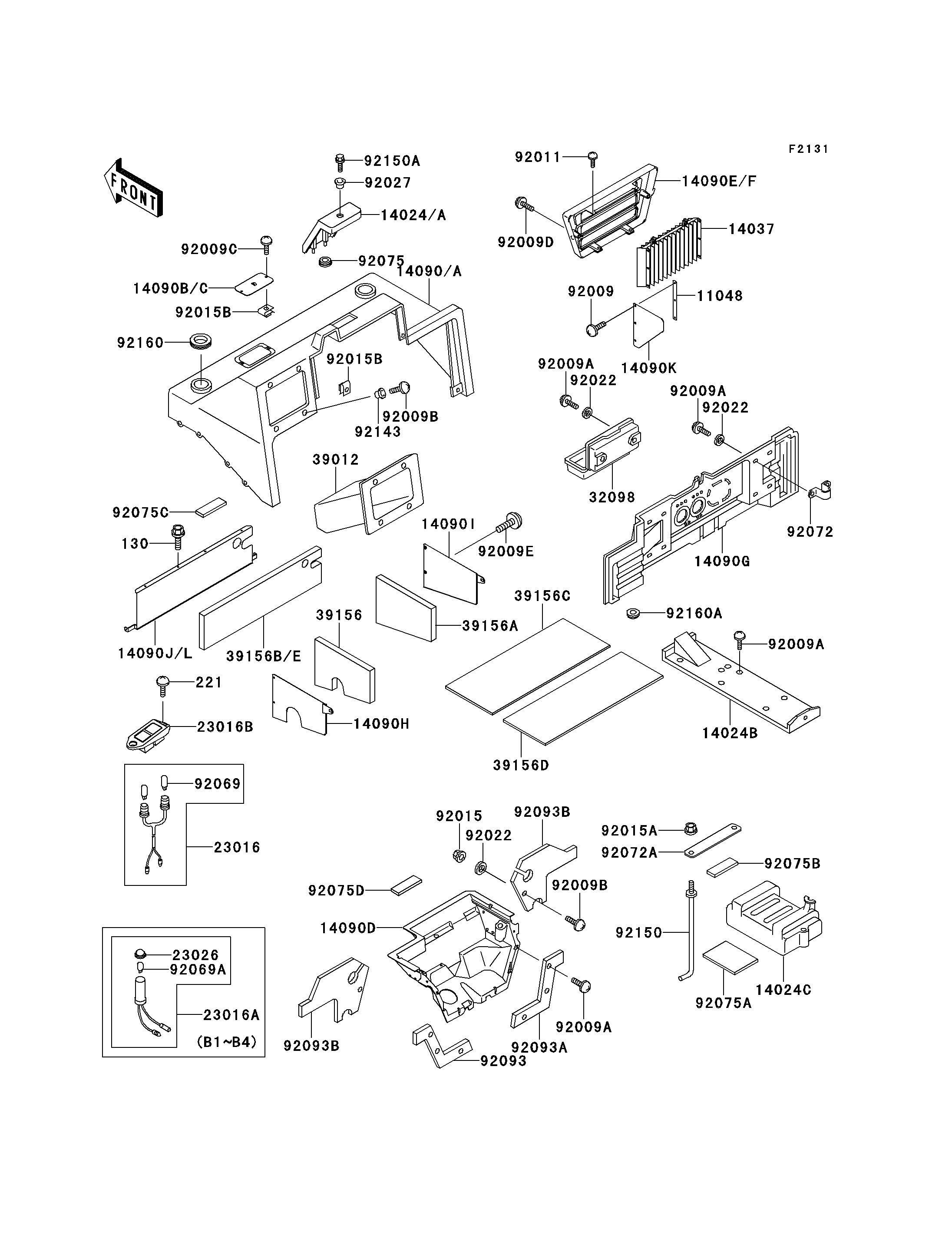

Mule 2520 Turf - Frame Fittings(Cover)

DOWNLOAD PDF
SELECT A NEW PART
11048
11048
14024
14024
14024B
14024B
14024C
14024C
14037
14037
14090
14090
14090C
14090C
14090D
14090D
14090E
14090E
14090G
14090G
14090H
14090H
14090I
14090I
14090K
14090K
14090L
14090L
23016
23016
23016B
23016B
32098
32098
39012
39012
39156
39156
39156A
39156A
39156C
39156C
39156D
39156D
39156E
39156E
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009A
92009A
130
130
221
221
92009B
92009B
92009B
92009B
92009C
92009C
92009D
92009D
92009E
92009E
92011
92011
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92022
92022
92022
92022
92022
92022
92027
92027
92069
92069
92072
92072
92072A
92072A
92075
92075
92075A
92075A
92075B
92075B
92075C
92075C
92075D
92075D
92093
92093
92093A
92093A
92093B
92093B
92093B
92093B
92143
92143
92150
92150
92150A
92150A
92160
92160
92160A
92160A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SCREEN 11048 11048-1085 2
COVER,MAINTENANCE,H.GREEN 14024 14024-1788-6A 1
COVER,FLOOR,CNT 14024B 14024-1791 1
COVER,BATTERY 14024C 14024-1792 1
SCREEN 14037 14037-1177 1
COVER,UPP,H.GREEN 14090 14090-1240-6A 1
COVER,RADIATOR CAP,H.GREEN 14090C 14090-1241-B9 1
COVER,LWR 14090D 14090-1242 1
COVER,FRONT GRILL,H.GREEN 14090E 14090-1243-6A 1
COVER,SEAT UNDER 14090G 14090-1247 1
COVER,ENCLOSURE,LH 14090H 14090-1260 1
COVER,ENCLOSURE,RH 14090I 14090-1261 1
COVER,SCREEN 14090K 14090-1326 2
COVER,ENCLOSURE,FR 14090L 14090-1874 1
LAMP-ASSY,NEUTRAL&REVERSE 23016 23016-1083 1
LAMP-ASSY 23016B 23016-1177 1
CASE-TOOL 32098 32098-1052 1
CASE-STORAGE 39012 39012-1053 1
PAD,ENCLOSURE COVER,LH 39156 39156-1301 1
PAD,ENCLOSURE COVER,RH 39156A 39156-1302 1
PAD,CARRIER,FR 39156C 39156-1304 1
PAD,CARRIER,CNT 39156D 39156-1305 1
PAD,ENCLOSURE COVER,FR 39156E 39156-1583 1
SCREW,6X18,WHITE 92009 92009-1111 6
SCREW 92009A 92009-1166 23
BOLT-FLANGED 130 130J0612 5
SCREW-CSK-CROS 221 221C0616 2
SCREW,6X18,BLACK 92009B 92009-1181 8
SCREW,6X14 92009C 92009-1288 2
SCREW,6X55 92009D 92009-1353 2
SCREW,6X16 92009E 92009-1621 4
SCREW 92011 92011-562 2
NUT,FLANGED,6MM 92015 92015-1386 2
NUT,FLANGED,8MM 92015A 92015-1406 2
NUT,CLAMP,6MM 92015B 92015-1678 7
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 13
COLLAR,L=14.1 92027 92027-1920 1
BULB,12V3W T-7 92069 92069-1020 2
BAND 92072 92072-1252 4
BAND,BATTERY 92072A 92072-1255 1
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1076 1
DAMPER 92075B 92075-1214 1
DAMPER 92075C 92075-1658 8
DAMPER,BATTERY BAND 92075D 92075-1903 4
SEAL,FRONT FENDER,LH 92093 92093-1293 1
SEAL,FRONT FENDER,RH 92093A 92093-1294 1
SEAL,LOWER COVER 92093B 92093-1295 2
COLLAR,L=5 92143 92143-1087 2
BOLT,BATTERY 92150 92150-1293 2
BOLT,6X25 92150A 92150-1360 1
DAMPER 92160 92160-1142 2
DAMPER 92160A 92160-1148 2
