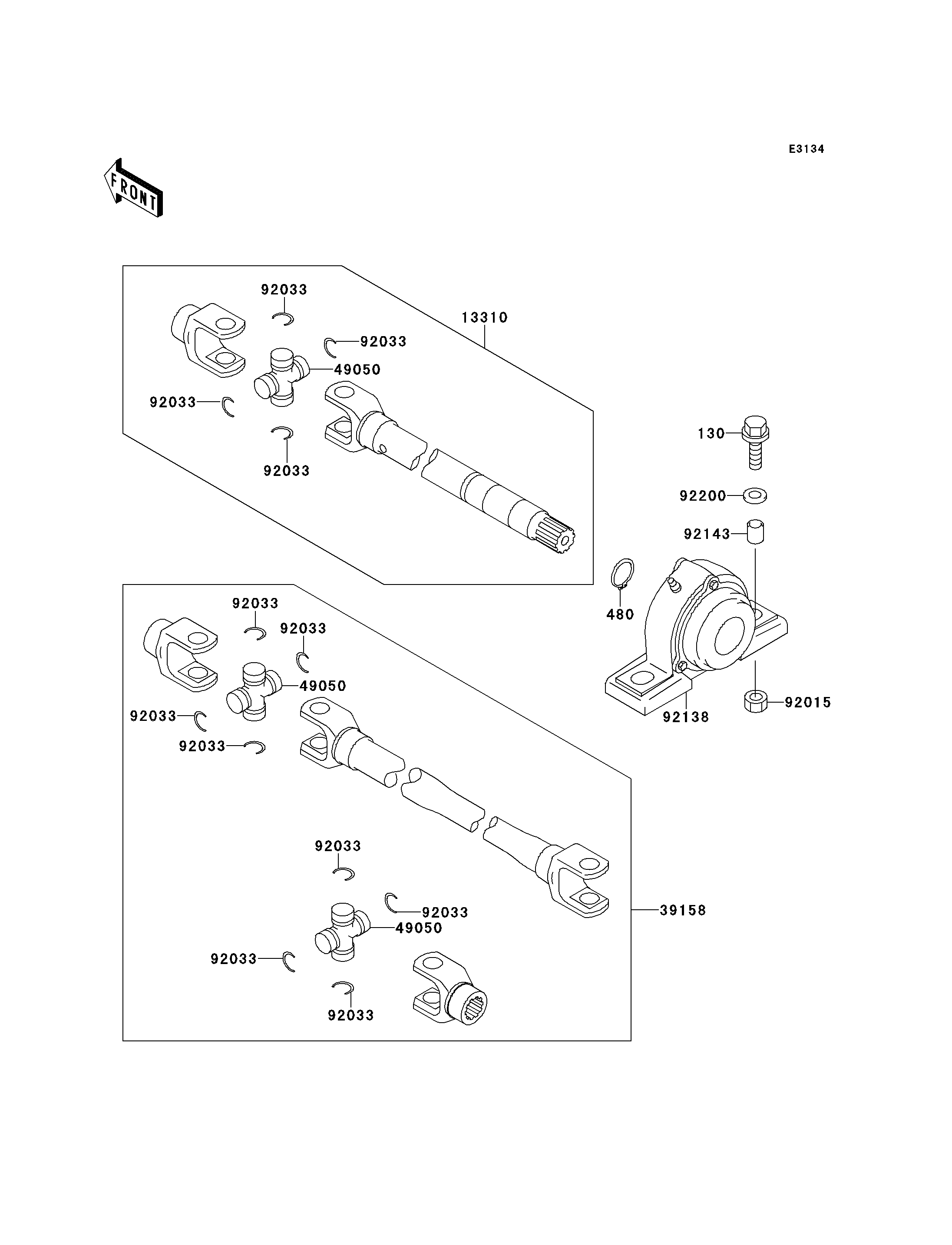

Mule 2510 4X4 - Drive Shaft(Propeller)
130
480
13310
39158
49050
49050
49050
92015
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92033
92138
92143
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,10X30 | 130 | 130J1030 | 2 | ||
| CIRCLIP-TYPE-C,25MM | 480 | 480J2500 | 1 | ||
| SHAFT-ASSY | 13310 | 13310-1011 | 1 | ||
| SHAFT-ASSY-DRIVE | 39158 | 39158-1083 | 1 | ||
| SPIDER | 49050 | 49050-1055 | 3 | ||
| NUT,LOCK,10MM | 92015 | 92015-1808 | 2 | ||
| RING-SNAP | 92033 | 92033-1158 | 12 | ||
| BEARING-COMP | 92138 | 92138-1052 | 1 | ||
| COLLAR,10.3X12.7X15 | 92143 | 92143-1634 | 2 | ||
| WASHER,10.5X19X2.3 | 92200 | 92200-1042 | 2 |
