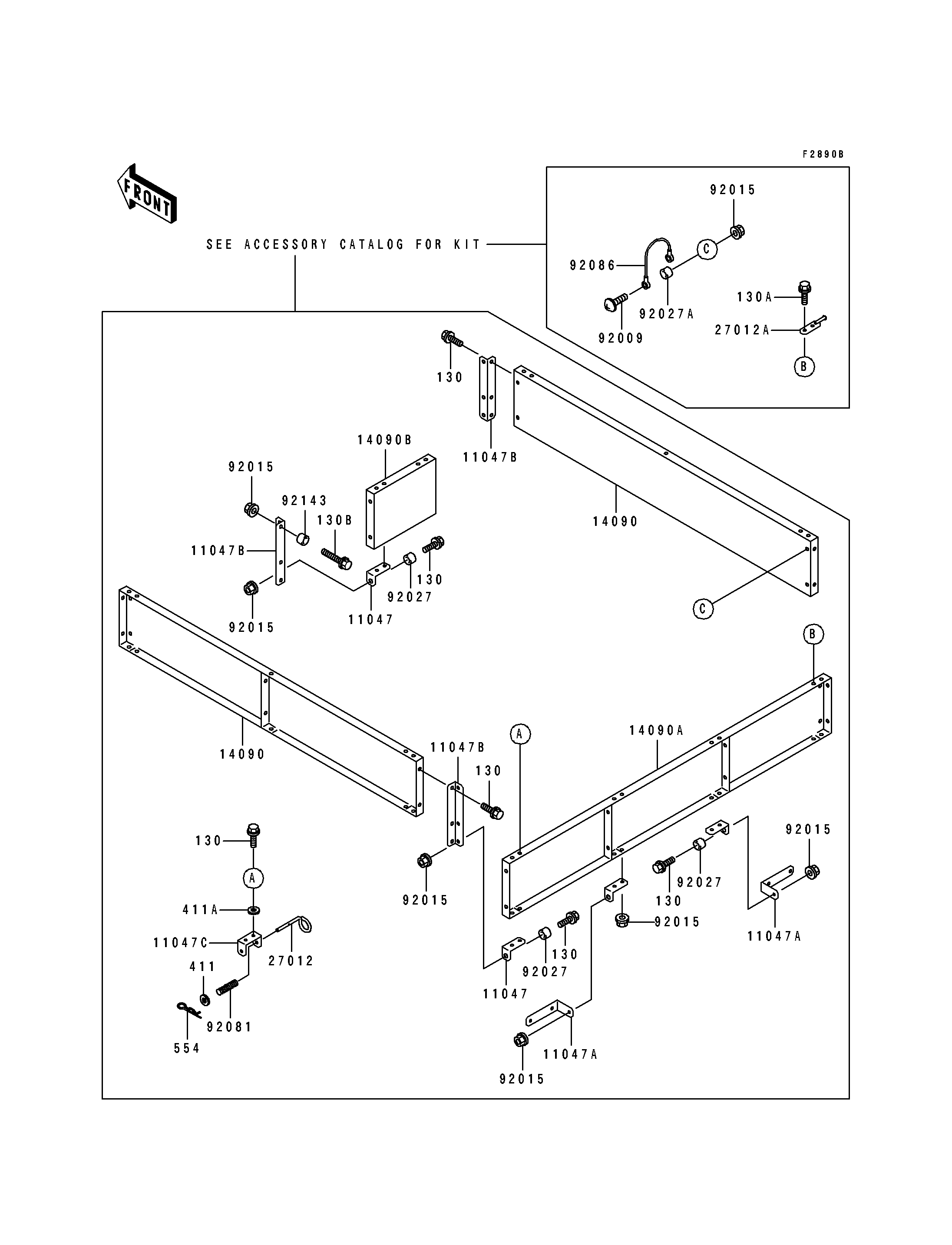

Mule 500 - Optional Parts(Bed Gate)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,GATE CARRIER,F.RED 11047 11047-1426-B1 6
BRACKET,GATE CARRIER,F.RED 11047A 11047-1427-B1 2
BRACKET,GATE CARRIER,F.RED 11047B 11047-1428-B1 4
BRACKET,GATE CARRIER,F.RED 11047C 11047-1429-B1 4
COVER,CARRIER,SIDE,F.RED 14090 14090-1109-B1 2
COVER,CARRIER,REAR,F.RED 14090A 14090-1110-B1 1
COVER,CARRIER,FRONT,F.RED 14090B 14090-1111-B1 1
HOOK,GATE CARRIER 27012 27012-1449 4
HOOK,WIRE,F.RED 27012A 27012-1454-B1 2
SCREW,6X16 92009 92009-1621 2
NUT,FLANGED,6MM 92015 92015-1386 44
COLLAR,6.8X10X6 92027 92027-103 6
COLLAR,6.8X10X8.5 92027A 92027-129 2
SPRING,CLUTCH RELEASE 92081 92081-096 4
WIRE,L=260 92086 92086-1056 2
COLLAR 92143 92143-1046 2
BOLT-FLANGED,6X16,BLACK 130 130J0616 40
BOLT-FLANGED 130A 130J0620 4
BOLT-FLANGED,6X35 130B 130J0635 2
WASHER-PLAIN,6MM,BLACK 411 411F0600 4
WASHER-PLAIN,8MM,BLACK 411A 411F0800 8
PIN-SNAP 554 554A0600 4
