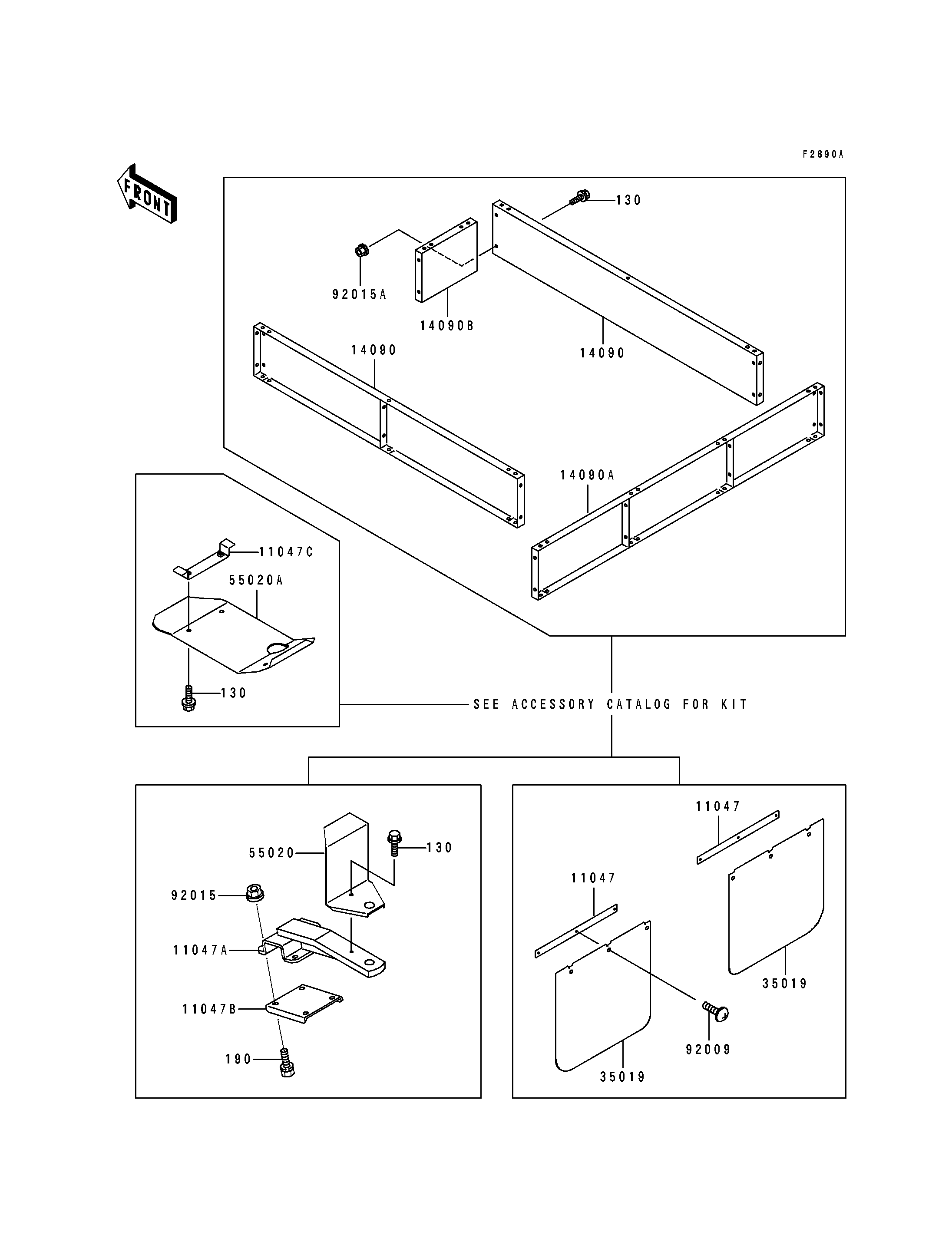

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REAR FLAP | 11047 | 11047-1172 | 2 | ||
| BRACKET,TRAILER HITCH,UPP | 11047A | 11047-1430 | 1 | ||
| BRACKET,TRAILER HITCH,LWR | 11047B | 11047-1431 | 1 | ||
| BRACKET,GEAR CASE GUARD | 11047C | 11047-1432 | 2 | ||
| COVER,CARRIER,SIDE,F.RED | 14090 | 14090-1109-B1 | 2 | ||
| COVER,CARRIER,REAR,F.RED | 14090A | 14090-1110-B1 | 1 | ||
| COVER,CARRIER,FRONT,F.RED | 14090B | 14090-1111-B1 | 1 | ||
| FLAP,REAR FENDER | 35019 | 35019-1244 | 2 | ||
| GUARD,MUFFLER | 55020 | 55020-1399 | 1 | ||
| GUARD,GEAR CASE | 55020A | 55020-1400 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 6 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1366 | 4 | ||
| NUT,FLANGED,6MM | 92015A | 92015-1386 | 22 | ||
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 27 | ||
| BOLT-UPSET-WS | 190 | 190H1025 | 4 |
| BRACKET,REAR FLAP | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,TRAILER HITCH,UPP | |
| REF # | 11047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,TRAILER HITCH,LWR | |
| REF # | 11047B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,GEAR CASE GUARD | |
| REF # | 11047C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,CARRIER,SIDE,F.RED | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,CARRIER,REAR,F.RED | |
| REF # | 14090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CARRIER,FRONT,F.RED | |
| REF # | 14090B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,REAR FENDER | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD,MUFFLER | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,GEAR CASE | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 22 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16,BLACK | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 27 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WS | |
| REF # | 190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
