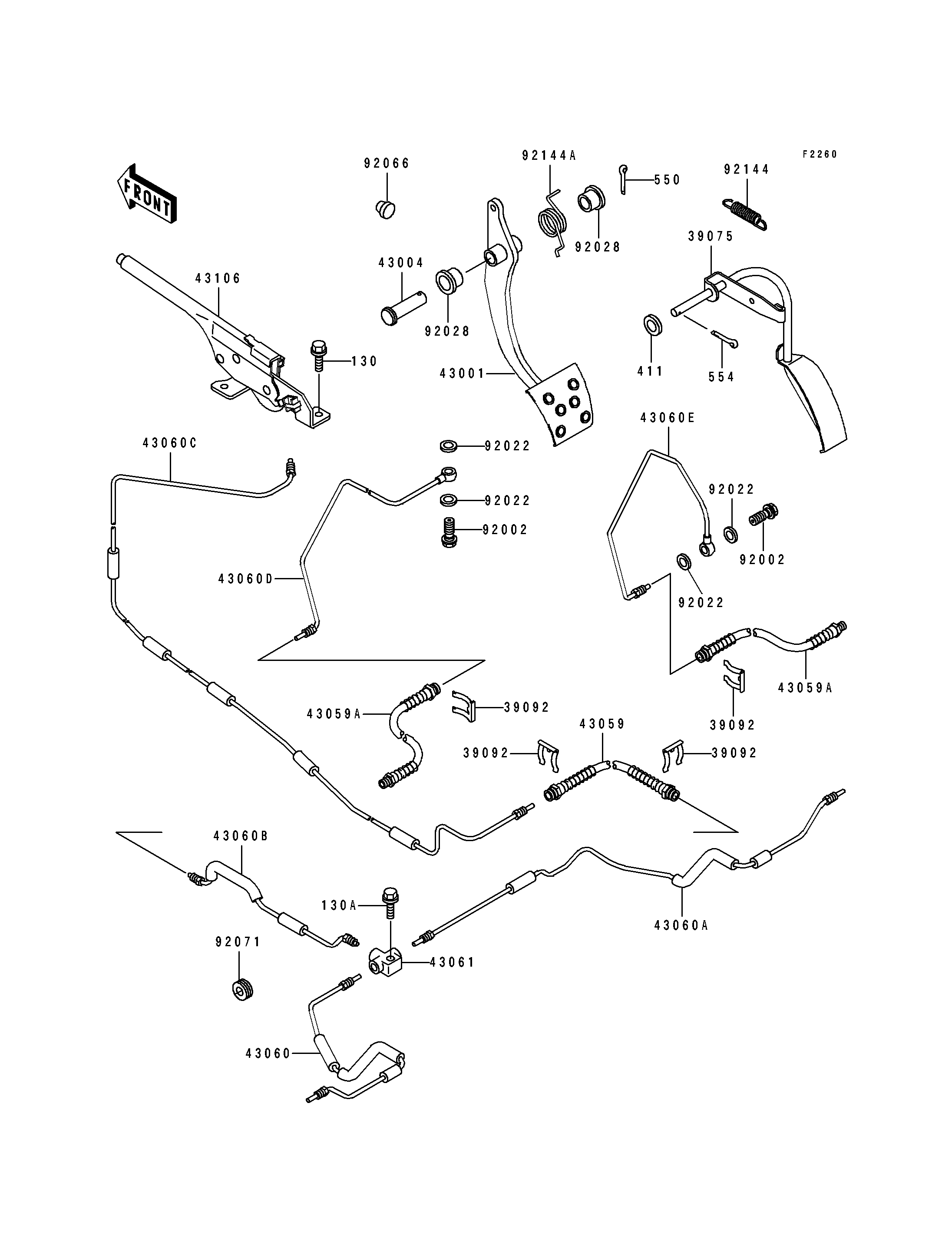

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-THROTTLE | 39075 | 39075-1058 | 1 | ||
| PIN-HAIR | 39092 | 39092-1052 | 4 | ||
| LEVER-BRAKE,PEDAL | 43001 | 43001-1293 | 1 | ||
| SHAFT-BRAKE | 43004 | 43004-1128 | 1 | ||
| HOSE-BRAKE,CNT | 43059 | 43059-1665 | 1 | ||
| HOSE-BRAKE,FR | 43059A | 43059-1666 | 2 | ||
| PIPE-BRAKE,RR,LH | 43060 | 43060-1073 | 1 | ||
| PIPE-BRAKE,RR,RH | 43060A | 43060-1074 | 1 | ||
| PIPE-BRAKE,RR,CNT | 43060B | 43060-1075 | 1 | ||
| PIPE-BRAKE,FR,CNT | 43060C | 43060-1076 | 1 | ||
| PIPE-BRAKE,FR,LH | 43060D | 43060-1077 | 1 | ||
| PIPE-BRAKE,FR,RH | 43060E | 43060-1078 | 1 | ||
| JOINT-BRAKE | 43061 | 43061-1063 | 1 | ||
| LEVER-ASSY-PARKING BRAKE | 43106 | 43106-1001 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 2 | ||
| WASHER,10.5X15X1.5 | 92022 | 43067-001 | 4 | ||
| BUSHING | 92028 | 92028-1571 | 2 | ||
| PLUG,7X2 | 92066 | 92074-028 | 2 | ||
| GROMMET | 92071 | 92071-1152 | 1 | ||
| SPRING | 92144 | 92081-1980 | 1 | ||
| SPRING | 92144A | 92144-1536 | 1 | ||
| BOLT-FLANGED | 130 | 130D0816 | 2 | ||
| BOLT-FLANGED,8X30 | 130A | 130D0830 | 1 | ||
| WASHER-PLAIN,10MM | 411 | 411E1000 | 1 | ||
| PIN-COTTER,2.5X25 | 550 | 550D2525 | 1 | ||
| PIN-SNAP,10MM | 554 | 554A1000 | 1 |
