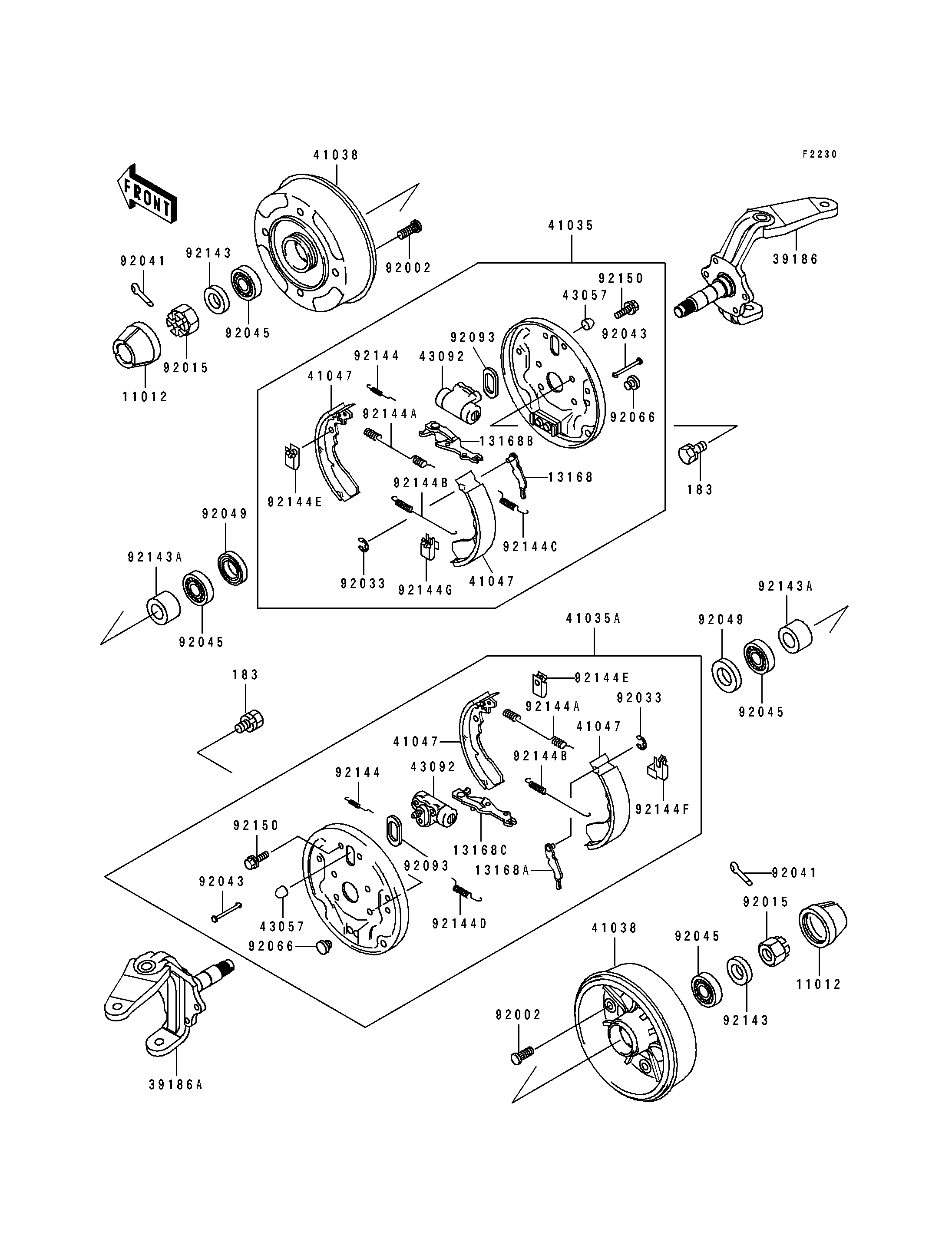

Mule 500 - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11012 11012-1519 2
LEVER,STOPPER,LH 13168 13168-1477 1
LEVER,STOPPER,RH 13168A 13168-1478 1
LEVER,LH 13168B 13168-1479 1
LEVER,RH 13168C 13168-1480 1
KNUCKLE,LH 39186 39186-1094 1
KNUCKLE,RH 39186A 39186-1095 1
PANEL-ASSY-BRAKE,FR,LH 41035 41035-1280 1
PANEL-ASSY-BRAKE,FR,RH 41035A 41035-1281 1
DRUM,FRONT BRAKE 41038 41038-1238 2
SHOE-ASSY-BRAKE,FR 41047 41047-1051 4
CAP-BREATHER 43057 43057-1053 2
CYLINDER 43092 43092-1057 2
BOLT,10X30 92002 92002-1388 8
NUT,CASTLE,18MM 92015 42045-018 2
RING-SNAP 92033 92033-1279 2
COTTER,4.0X35 92041 92041-1053 2
PIN,SHOE HOLD 92043 92043-1460 4
BEARING-BALL,60/222RS 92045 92045-1170 4
SEAL-OIL 92049 92049-1284 2
PLUG 92066 92066-1365 2
SEAL 92093 92093-1332 2
COLLAR,22.2X28.6X9 92143 92143-1454 2
COLLAR,22.2X28.6X25 92143A 92143-1455 2
SPRING 92144 92144-1604 2
SPRING,RETURN,UPP 92144A 92144-1605 2
SPRING,RETURN,LWR 92144B 92144-1606 2
SPRING,LH 92144C 92144-1607 1
SPRING,RH 92144D 92144-1608 1
SPRING,SHOE HOLD 92144E 92144-1609 2
SPRING,SHOE HOLD 92144F 92144-1610 1
SPRING,SHOE HOLD 92144G 92144-1611 1
BOLT 92150 92150-1540 4
BOLT-UPSET-WS-SMALL 183 183H0814 8
