Parts Diagrams |

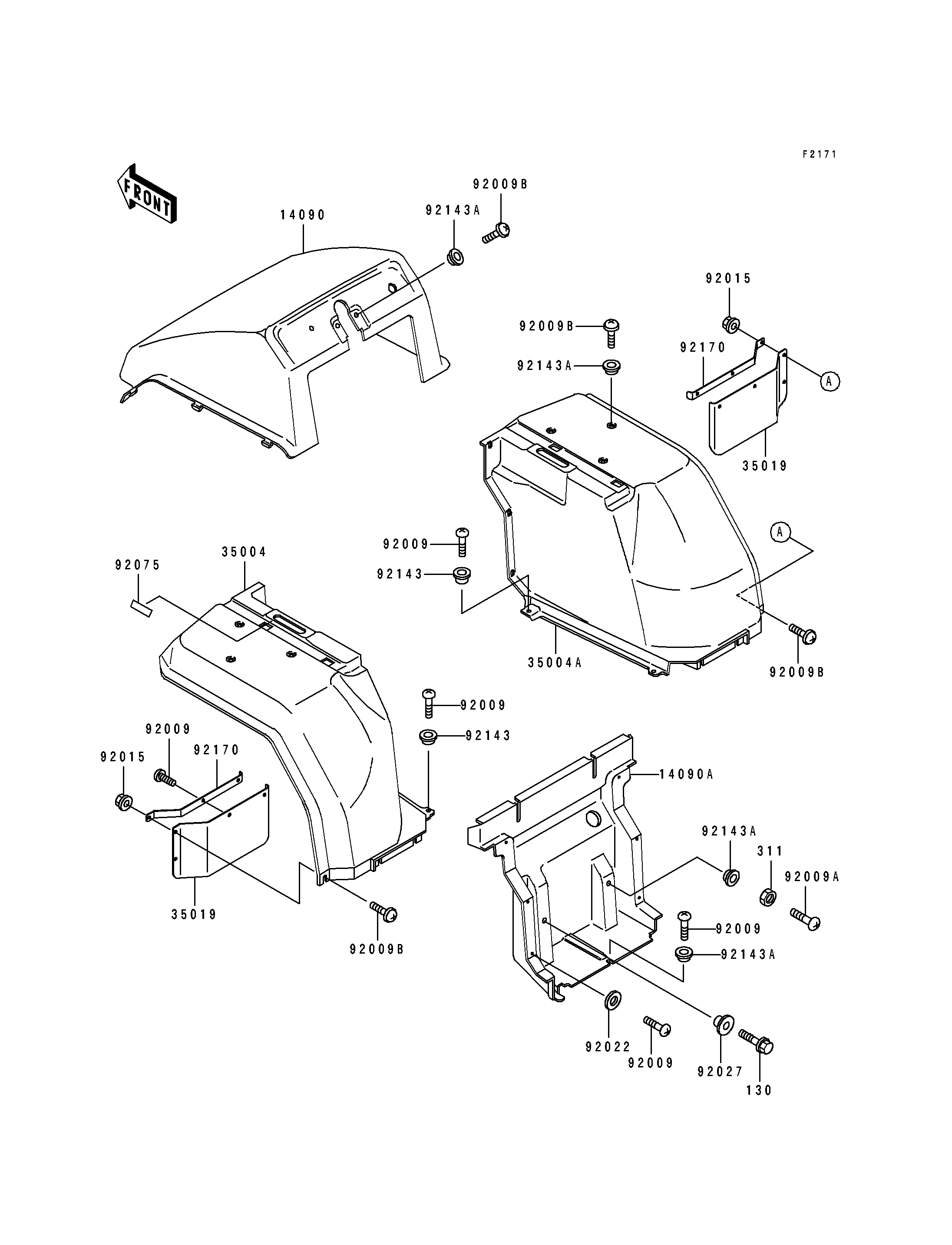

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,UPP,F.RED | 14090 | 14024-1983-6L | 1 | ||
| COVER,FR | 14090A | 14024-1984 | 1 | ||
| FENDER-FRONT,LH,F.RED | 35004 | 35004-1276-6L | 1 | ||
| FENDER-FRONT,RH,F.RED | 35004A | 35004-1277-6L | 1 | ||
| FLAP,FRONT FENDER | 35019 | 35019-1271 | 2 | ||
| SCREW | 92009 | 92009-1166 | 15 | ||
| SCREW,6X35 | 92009A | 92009-1589 | 1 | ||
| SCREW,6X16 | 92009B | 92009-1621 | 10 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 6 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 1 | ||
| DAMPER | 92075 | 92075-1867 | 2 | ||
| COLLAR | 92143 | 92143-1057 | 2 | ||
| COLLAR,L=5 | 92143A | 92143-1087 | 12 | ||
| CLAMP,FLAP | 92170 | 92170-1212 | 2 | ||
| BOLT-FLANGED,6X25 | 130 | 130J0625 | 1 | ||
| NUT-HEX,6MM | 311 | 311B0600 | 1 |
| COVER,UPP,F.RED | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,FR | |
| REF # | 14090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,LH,F.RED | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,RH,F.RED | |
| REF # | 35004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FRONT FENDER | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 15 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X35 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1,BLACK | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=5 | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FLAP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
