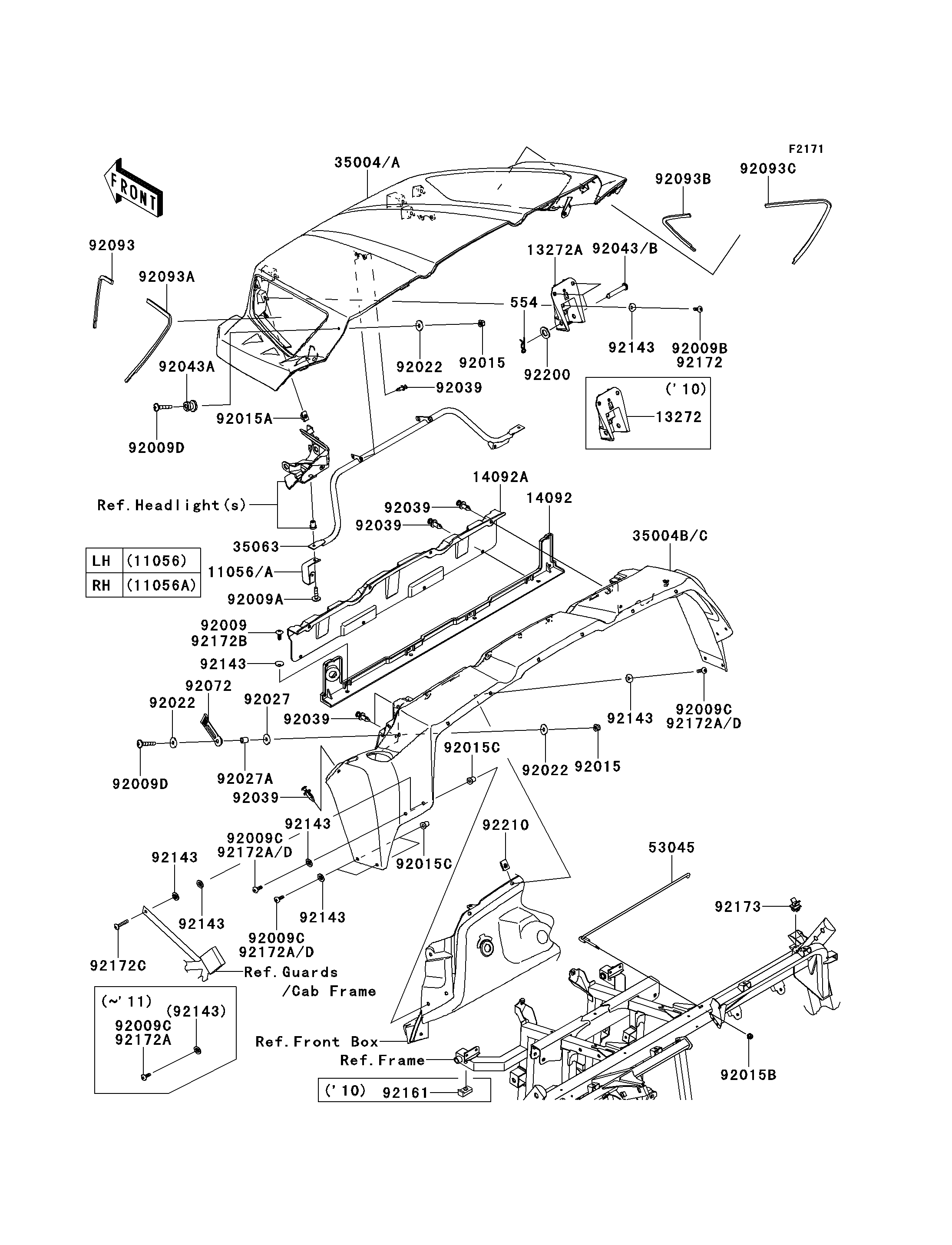

2012 TERYX® 750 FI 4x4 - Front Fender(s)
11056
11056
11056A
11056A
13272A
13272A
14092
14092
14092A
14092A
35004
35004
35004B
35004B
35063
35063
53045
53045
92009A
92009A
92009D
92009D
92009D
92009D
92015
92015
92015
92015
92015A
92015A
92015B
92015B
92015C
92015C
92015C
92015C
92022
92022
92022
92022
92022
92022
92027
92027
92027A
92027A
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92043A
92043A
92043B
92043B
92072
92072
92093
92093
92093A
92093A
92093B
92093B
92093C
92093C
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92172
92172
92172B
92172B
92172C
92172C
92172D
92172D
92172D
92172D
92172D
92172D
554
554
92173
92173
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11056 | 11056-0129 | 1 | ||
| BRACKET,RH | 11056A | 11056-0130 | 1 | ||
| PLATE | 13272A | 13272-0871 | 2 | ||
| COVER,BASE PLATE | 14092 | 14092-0059 | 1 | ||
| COVER,CHECK PLATE | 14092A | 14092-0060 | 1 | ||
| FENDER-FRONT,FR,S.RED | 35004 | 35004-0132-6B | 1 | ||
| FENDER-FRONT,RR,S.RED | 35004B | 35004-0142-6B | 1 | ||
| STAY,HEAD LAMP | 35063 | 35063-0677 | 1 | ||
| HOOK-ASSY | 53045 | 53045-0018 | 1 | ||
| SCREW,6X25 | 92009A | 92009-1465 | 2 | ||
| SCREW,6X35 | 92009D | 92009-1672 | 4 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1339 | 4 | ||
| NUT,5MM | 92015A | 92015-1627 | 6 | ||
| NUT,LOCK,FLANGED,5MM | 92015B | 92015-1752 | 1 | ||
| NUT,WELL,5MM | 92015C | 92015-1757 | 8 | ||
| WASHER,6.5X20X1.6,WHITE | 92022 | 92022-193 | 6 | ||
| COLLAR,L=5.1 | 92027 | 92027-1260 | 2 | ||
| COLLAR,6.8X10X12 | 92027A | 92027-162 | 2 | ||
| RIVET | 92039 | 92039-1229 | 18 | ||
| PIN | 92043A | 92043-0197 | 2 | ||
| PIN,12.4X62.4 | 92043B | 92043-0716 | 2 | ||
| BAND | 92072 | 92072-0144 | 2 | ||
| SEAL,FR,LH | 92093 | 92093-0168 | 1 | ||
| SEAL,RR,LH | 92093A | 92093-0169 | 1 | ||
| SEAL,FR,RH | 92093B | 92093-0170 | 1 | ||
| SEAL,RR,RH | 92093C | 92093-0171 | 1 | ||
| COLLAR | 92143 | 92143-1087 | 26 | ||
| SCREW,5X16 | 92172 | 92172-0322 | 6 | ||
| SCREW,TAPPING,6X16 | 92172B | 92172-0739 | 4 | ||
| SCREW,5X30 | 92172C | 92172-0783 | 2 | ||
| SCREW,5X20 | 92172D | 92172-2081 | 12 | ||
| PIN-SNAP,12MM | 554 | 554DA1200 | 2 | ||
| CLAMP | 92173 | 92173-0106 | 1 | ||
| WASHER,13X24X2 | 92200 | 92200-0451 | 2 | ||
| NUT,5MM | 92210 | 92210-0499 | 6 |
