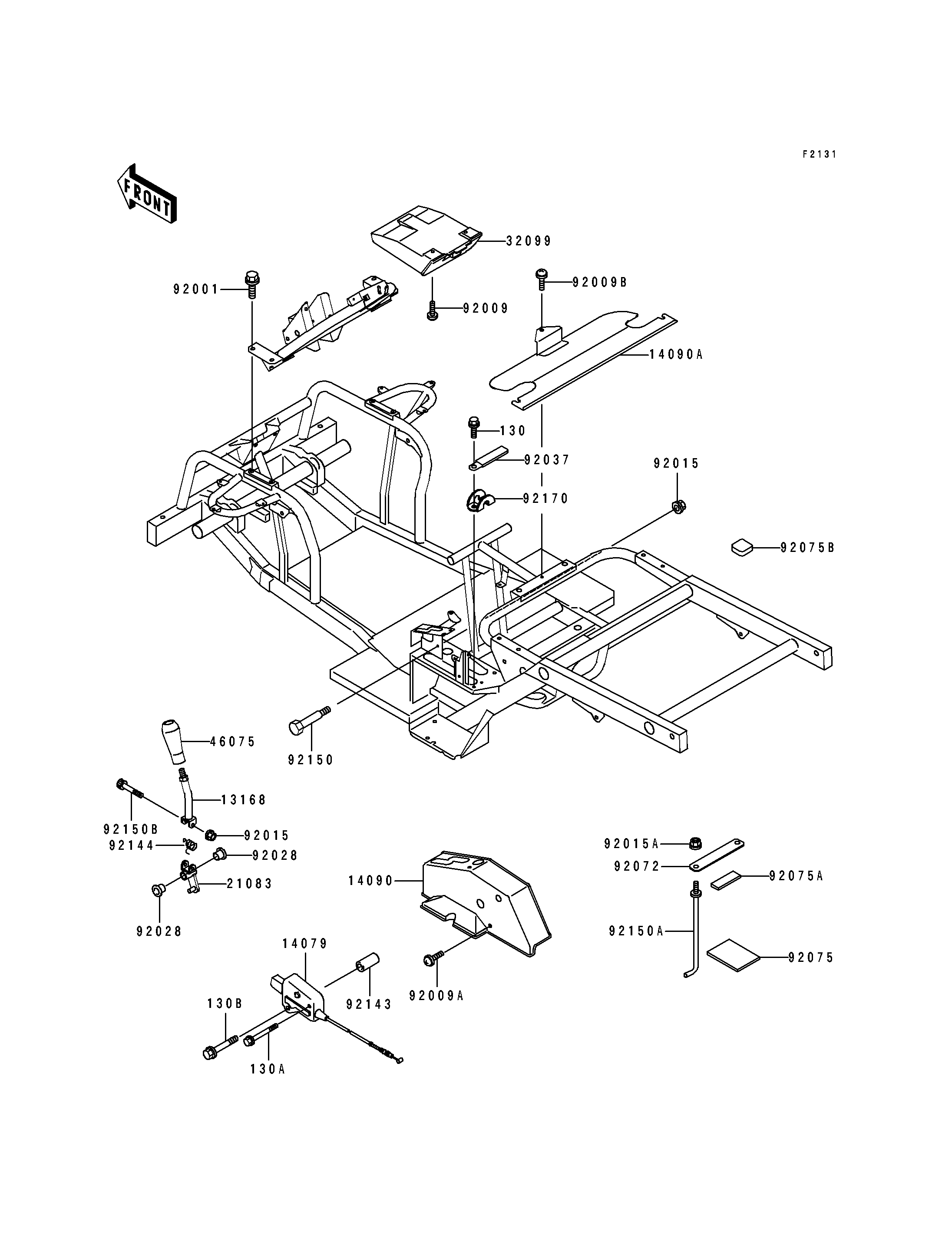

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,SHIFT | 13168 | 13168-1459 | 1 | ||
| HOLDER-ASSY,DIFF LOCK | 14079 | 14079-1079 | 1 | ||
| COVER,SHIFT&BATTERY | 14090 | 14024-1985 | 1 | ||
| COVER,SEAT | 14090A | 14090-1120 | 1 | ||
| ARM,SHIFT LEVER | 21083 | 21083-1091 | 1 | ||
| CASE,TOOL | 32099 | 32099-1039 | 1 | ||
| GRIP,SHIFT LEVER | 46075 | 46075-1075 | 1 | ||
| BOLT,FLANGED,8X18 | 92001 | 92001-4030 | 4 | ||
| SCREW | 92009 | 92009-1166 | 2 | ||
| SCREW,6X14 | 92009A | 92009-1288 | 3 | ||
| SCREW,6X10 | 92009B | 92009-1402 | 1 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 2 | ||
| NUT,FLANGED,LOCK,8MM | 92015A | 92015-1696 | 2 | ||
| BUSHING | 92028 | 92028-1507 | 2 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 2 | ||
| BAND,BATTERY | 92072 | 92072-1233 | 1 | ||
| DAMPER | 92075 | 92075-1076 | 1 | ||
| DAMPER | 92075A | 92075-1214 | 1 | ||
| DAMPER | 92075B | 92075-1882 | 6 | ||
| COLLAR,11.3X15.9X36 | 92143 | 92143-1162 | 1 | ||
| SPRING | 92144 | 92144-1175 | 1 | ||
| BOLT | 92150 | 92002-1984 | 1 | ||
| BOLT,BATTERY | 92150A | 92150-1293 | 2 | ||
| BOLT,SOCKET,6X35 | 92150B | 92150-1393 | 1 | ||
| CLAMP,SHIFT CABLE | 92170 | 92170-1210 | 1 | ||
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 | ||
| BOLT-FLANGED,6X50,BLACK | 130A | 130J0650 | 1 | ||
| BOLT-FLANGED,8X50 | 130B | 130J0850 | 1 |
