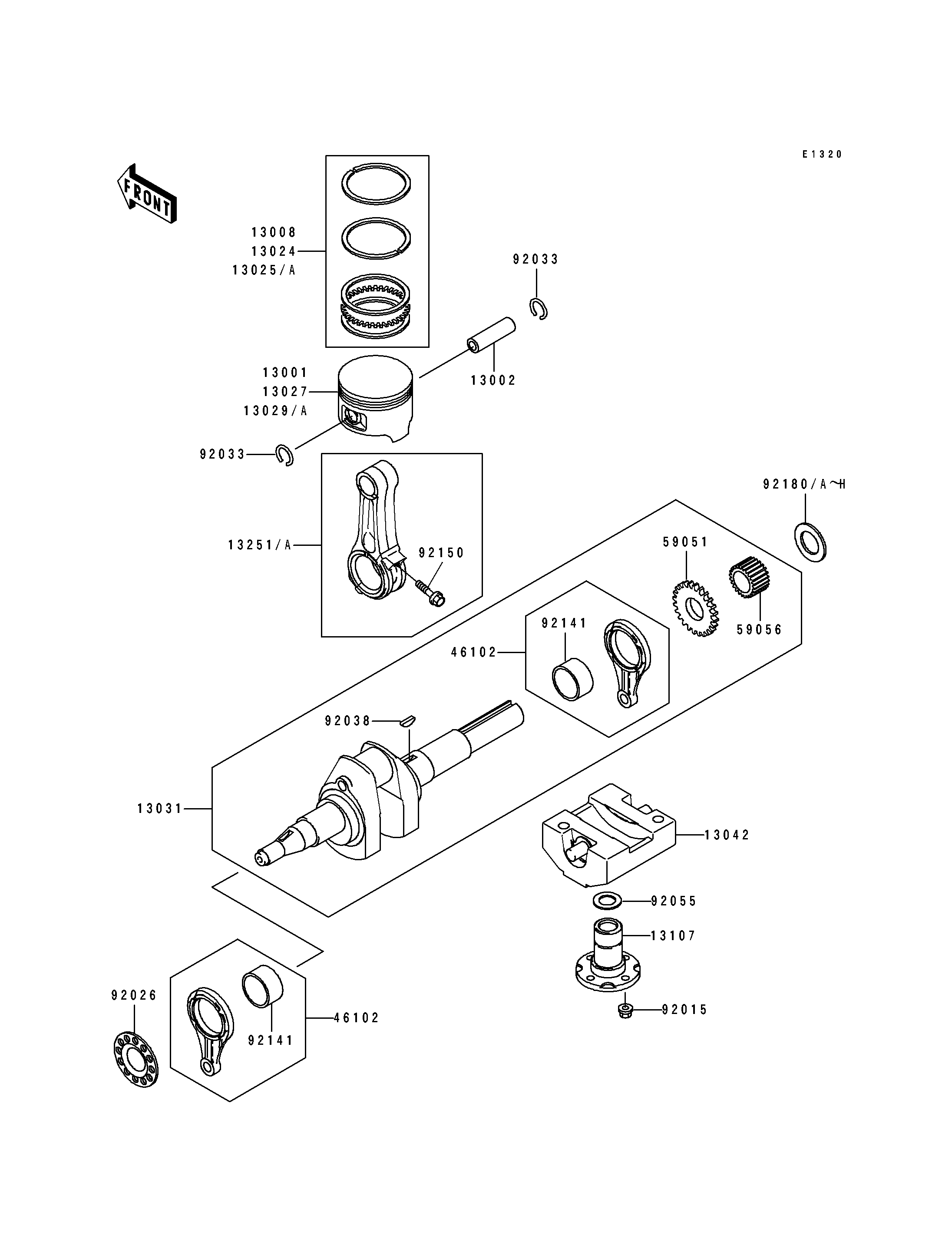

Mule 500 - Crankshaft/Piston

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,STD 13001 13001-2125 1
PIN-PISTON 13002 13002-2069 1
RING-SET-PISTON,STD 13008 13008-6007 1
RING-SET-PISTON LL,0.75 13024 13024-2051 AR
RING-SET-PISTON L,0.25 13025 13025-2073 AR
RING-SET-PISTON L,0.50 13025A 13025-2074 AR
PISTON-ENGINE LL,0.75 13027 13027-2060 AR
PISTON-ENGINE L,0.25 13029 13029-2100 AR
PISTON-ENGINE L,0.50 13029A 13029-2101 AR
CRANKSHAFT-COMP 13031 13031-2060 1
WEIGHT 13042 13042-6009 1
SHAFT 13107 13107-2088 1
ROD-ASSY-CONNECTING 13251 13251-6033 1
ROD-ASSY-CONNECTING,U/S=0.50 13251A 13251-6034 AR
ROD 46102 46102-6004 2
GEAR-SPUR 59051 59051-2097 1
GEAR-HELICAL 59056 59056-2840 1
NUT,FLANGED,6MM 92015 92015-1193 4
SPACER 92026 92026-2052 1
RING-SNAP,PISTON PIN 92033 92036-008 2
KEY,WOODRUFF 92038 92038-2094 1
RING-O 92055 92055-2072 1
BEARING-PLANE 92141 92141-2090 2
BOLT 92150 92002-2053 2
SHIM,T=1.13 92180 92025-2168 AR
SHIM,T=1.18 92180A 92025-2169 AR
SHIM,T=1.23 92180B 92025-2170 AR
SHIM,T=1.28 92180C 92025-2171 AR
SHIM,T=1.33 92180D 92025-2172 AR
SHIM,T=1.38 92180E 92025-2173 AR
SHIM,T=1.43 92180F 92025-2174 AR
SHIM,T=1.48 92180G 92025-2175 AR
SHIM,T=1.53 92180H 92025-2207 AR
