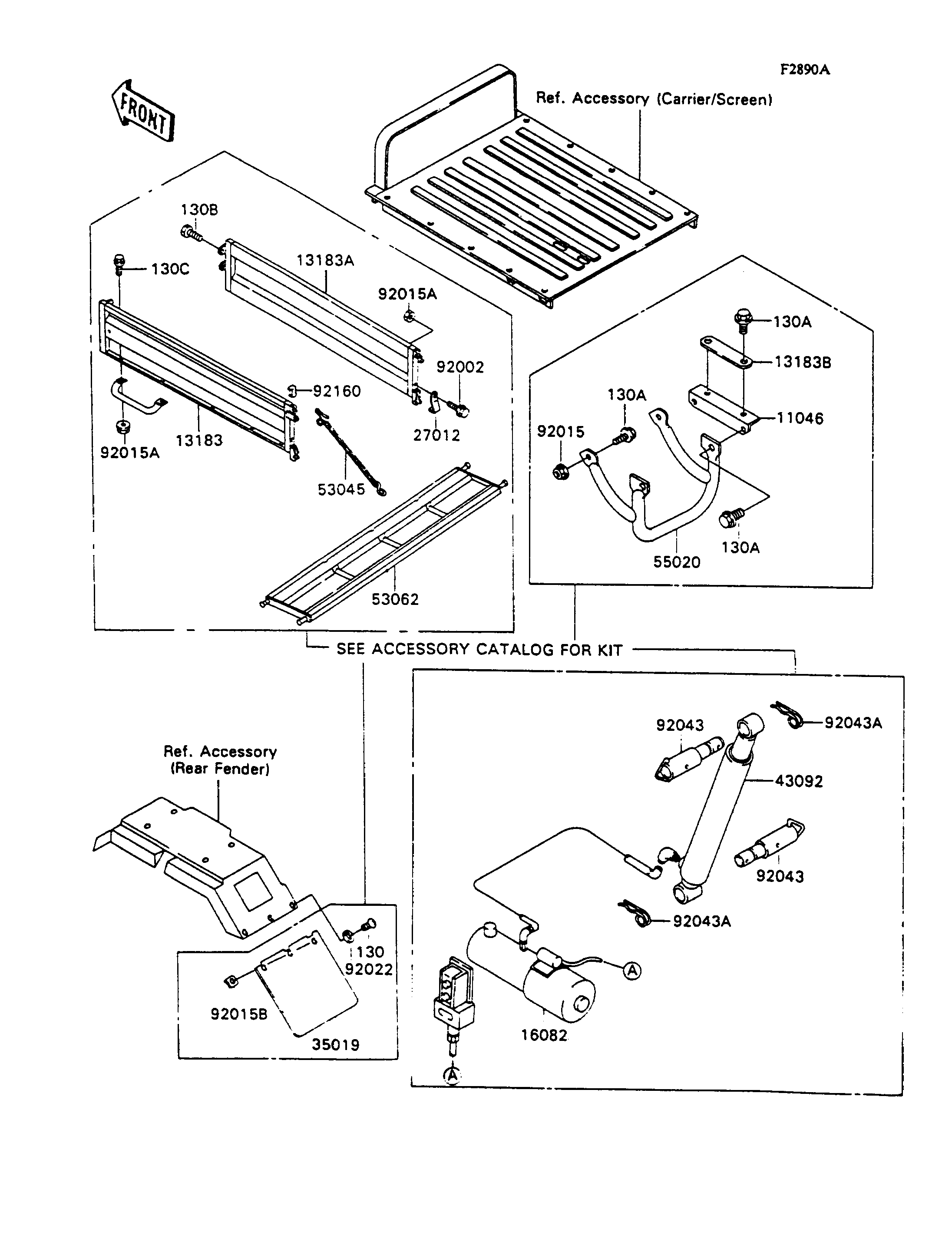

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,TAIL LAMP GUARD | 11046 | 11046-1826 | 2 | ||
| PLATE,CARRIER SIDE,LH,F.RED | 13183 | 13183-1405-B1 | 1 | ||
| PLATE,CARRIER SIDE,RH,F.RED | 13183A | 13183-1409-B1 | 1 | ||
| PLATE,TAIL LAMP GUARD | 13183B | 13183-1497 | 2 | ||
| PUMP-ASSY-OIL | 16082 | 16082-1105 | 1 | ||
| HOOK,TAIL GATE | 27012 | 27012-1406 | 2 | ||
| FLAP,RR | 35019 | 35019-1244 | 2 | ||
| CYLINDER | 43092 | 43092-1056 | 1 | ||
| HOOK-ASSY,TAIL GATE | 53045 | 53045-1056 | 2 | ||
| GATE-TAIL,F.RED | 53062 | 53062-1002-B1 | 1 | ||
| GUARD,TAIL LAMP | 55020 | 55020-1354 | 2 | ||
| BOLT,8X50 | 92002 | 92002-1182 | 2 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1366 | 4 | ||
| NUT,FLANGED,8MM | 92015A | 92015-1408 | 12 | ||
| NUT,6MM | 92015B | 92015-1602 | 6 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 6 | ||
| PIN,DUMP | 92043 | 92043-1437 | 2 | ||
| PIN,SNAP | 92043A | 92043-1438 | 2 | ||
| DAMPER | 92160 | 92160-1191 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130C0614 | 6 | ||
| BOLT-FLANGED,10X16 | 130A | 130D1016 | 12 | ||
| BOLT-FLANGED,8X20 | 130B | 130J0820 | 6 | ||
| BOLT-FLANGED,8X25,BLACK | 130C | 130J0825 | 4 |
| BRACKET,TAIL LAMP GUARD | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARRIER SIDE,LH,F.RED | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARRIER SIDE,RH,F.RED | |
| REF # | 13183A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,TAIL LAMP GUARD | |
| REF # | 13183B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PUMP-ASSY-OIL | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,TAIL GATE | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FLAP,RR | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CYLINDER | |
| REF # | 43092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK-ASSY,TAIL GATE | |
| REF # | 53045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GATE-TAIL,F.RED | |
| REF # | 53062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,TAIL LAMP | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X50 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PIN,DUMP | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,SNAP | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,10X16 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X20 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25,BLACK | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
