Parts Diagrams |

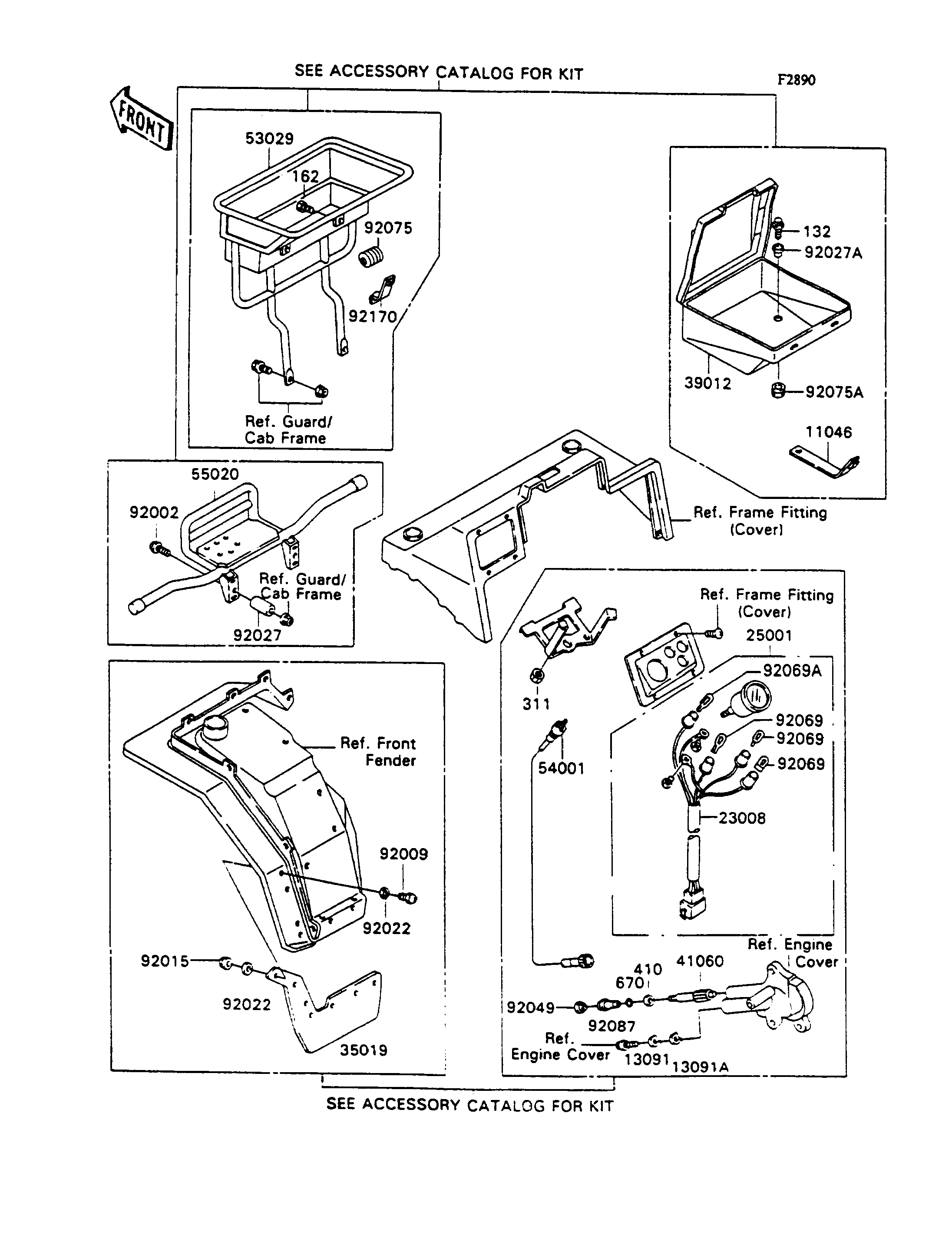

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LUNCH BOX | 11046 | 11046-1816 | 2 | ||
| HOLDER,TACHOMETER,T=2.3 | 13091 | 13091-1008 | 1 | ||
| HOLDER,TACHOMETER,T=3.2 | 13091A | 13091-1009 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1355 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1706 | 1 | ||
| FLAP,FR | 35019 | 35019-1258 | 2 | ||
| CASE-STORAGE | 39012 | 39012-1054 | 1 | ||
| GEAR-METER SCREW | 41060 | 41060-1120 | 1 | ||
| CARRIER,FRONT RACK | 53029 | 53029-1126 | 1 | ||
| CABLE-SPEEDOMETER | 54001 | 54001-1135 | 1 | ||
| GUARD,ELECTRIC WINCH | 55020 | 55020-1352 | 1 | ||
| BOLT,SUSPENSION ROD | 92002 | 92002-1661 | 2 | ||
| SCREW,6X18,BLACK | 92009 | 92009-1181 | 16 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1386 | 16 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 32 | ||
| COLLAR,12.2X22X48.2 | 92027 | 92027-1574 | 2 | ||
| COLLAR,L=19.3 | 92027A | 92027-1780 | 4 | ||
| SEAL-OIL | 92049 | 92050-075 | 1 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 3 | ||
| BULB,12V 1.7W | 92069A | 92069-1059 | 1 | ||
| DAMPER,FUEL TANK | 92075 | 92075-084 | 2 | ||
| DAMPER | 92075A | 92075-1736 | 4 | ||
| BUSHING-METER GEAR,TACHOMETER | 92087 | 92087-010 | 1 | ||
| CLAMP,FRONT RACK | 92170 | 92170-1115 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0830 | 4 | ||
| BOLT-FINE-WSP,10X22 | 162 | 162C1022 | 4 | ||
| NUT-HEX | 311 | 311B0500 | 4 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410B0600 | 1 | ||
| O RING,10MM | 670 | 670D1510 | 1 |
| BRACKET,LUNCH BOX | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER,TACHOMETER,T=2.3 | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,TACHOMETER,T=3.2 | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,METER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,MPH | |
| REF # | 25001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLAP,FR | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-STORAGE | |
| REF # | 39012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-METER SCREW | |
| REF # | 41060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARRIER,FRONT RACK | |
| REF # | 53029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CABLE-SPEEDOMETER | |
| REF # | 54001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ELECTRIC WINCH | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SUSPENSION ROD | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 32 |
| DESTINATION | |
| REMARKS | |
| COLLAR,12.2X22X48.2 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=19.3 | |
| REF # | 92027A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 3.4W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 1.7W | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING-METER GEAR,TACHOMETER | |
| REF # | 92087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FRONT RACK | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FINE-WSP,10X22 | |
| REF # | 162 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,10MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
