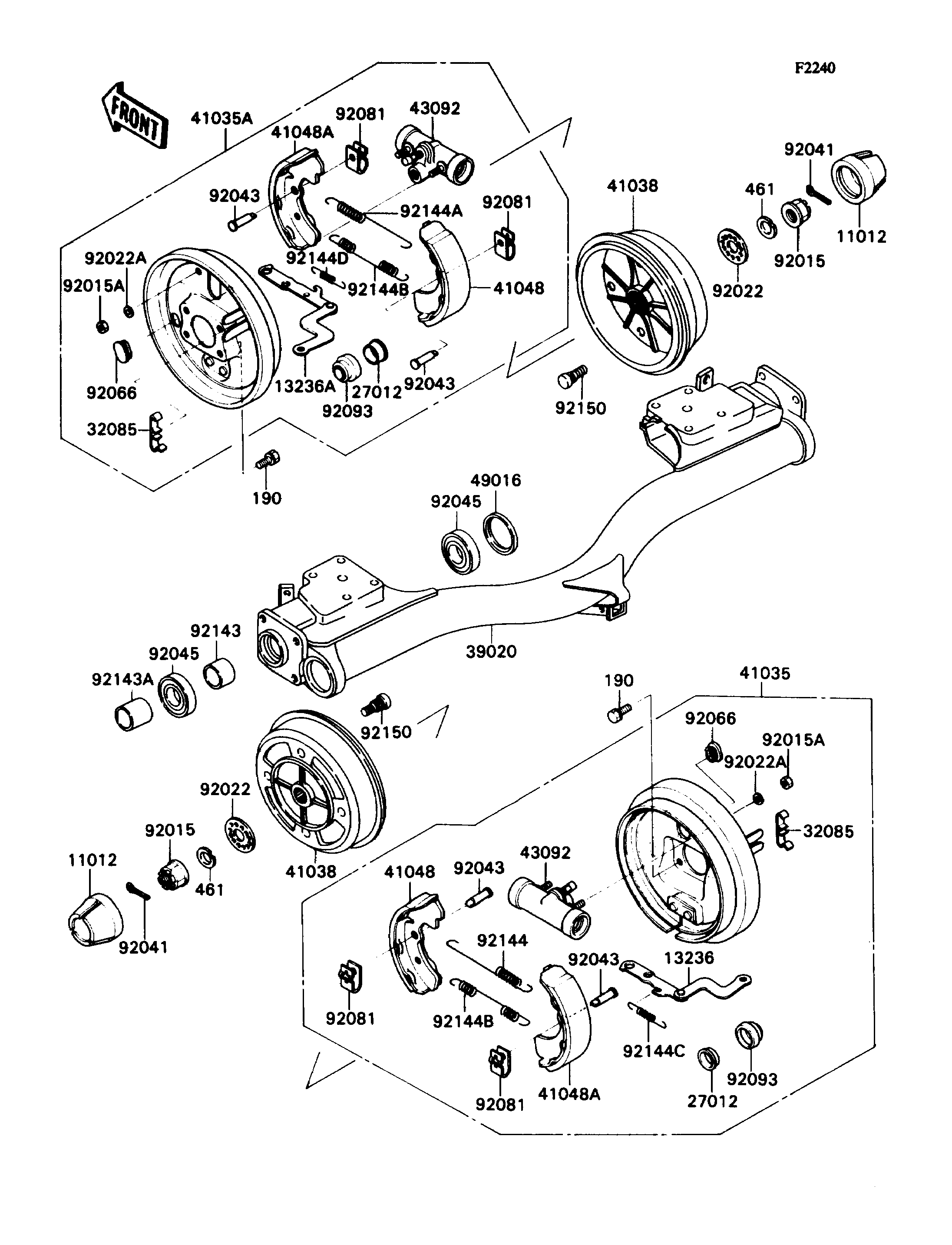

Mule 2030 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11012 11012-1519 2
LEVER-COMP,REAR BRAKE PANEL,LH 13236 13236-1180 1
LEVER-COMP,REAR BRAKE PANEL,RH 13236A 13236-1181 1
HOOK,REAR BRAKE LEVER 27012 27012-1396 2
STOPPER,REAR BRAKE LEVER 32085 32085-1298 2
BRACKET-COMP-REAR SUSP 39020 39020-1053 1
PANEL-ASSY-BRAKE,RR,LH 41035 41035-1268 1
PANEL-ASSY-BRAKE,RR,RH 41035A 41035-1269 1
DRUM,REAR BRAKE 41038 41038-1226 2
SHOE-BRAKE 41048 41048-1078 2
SHOE-BRAKE 41048A 41048-1079 2
CYLINDER,REAR WHEEL 43092 43092-1053 2
COVER-SEAL 49016 49016-1151 2
NUT,CASTLE,18MM 92015 92015-1441 2
NUT,6MM 92015A 92015-1729 4
WASHER,T=4.5 92022 92022-1794 2
WASHER,SPRING,6MM 92022A 92022-1951 4
COTTER,4.0X35 92041 92041-1053 2
PIN,TENSION 92043 92043-1398 4
BEARING-BALL,6205DDU 92045 92045-1229 4
PLUG 92066 92066-1309 2
SPRING,SHOE CLAMP 92081 92081-1904 4
SEAL,REAR BRAKE LEVER 92093 92093-1259 2
COLLAR,25.1X32X23.3 92143 92143-1108 2
COLLAR,25.1X32X29.5 92143A 92143-1386 2
SPRING,BRAKE 92144 92144-1299 1
SPRING,BRAKE 92144A 92144-1300 1
SPRING,BRAKE 92144B 92144-1301 2
SPRING,ROD,LH 92144C 92144-1302 1
SPRING,ROD,RH 92144D 92144-1303 1
BOLT 92150 92150-1366 8
BOLT-UPSET-WS,10X16 190 190H1016 8
WASHER-SPRING,18MM 461 461F1800 2
