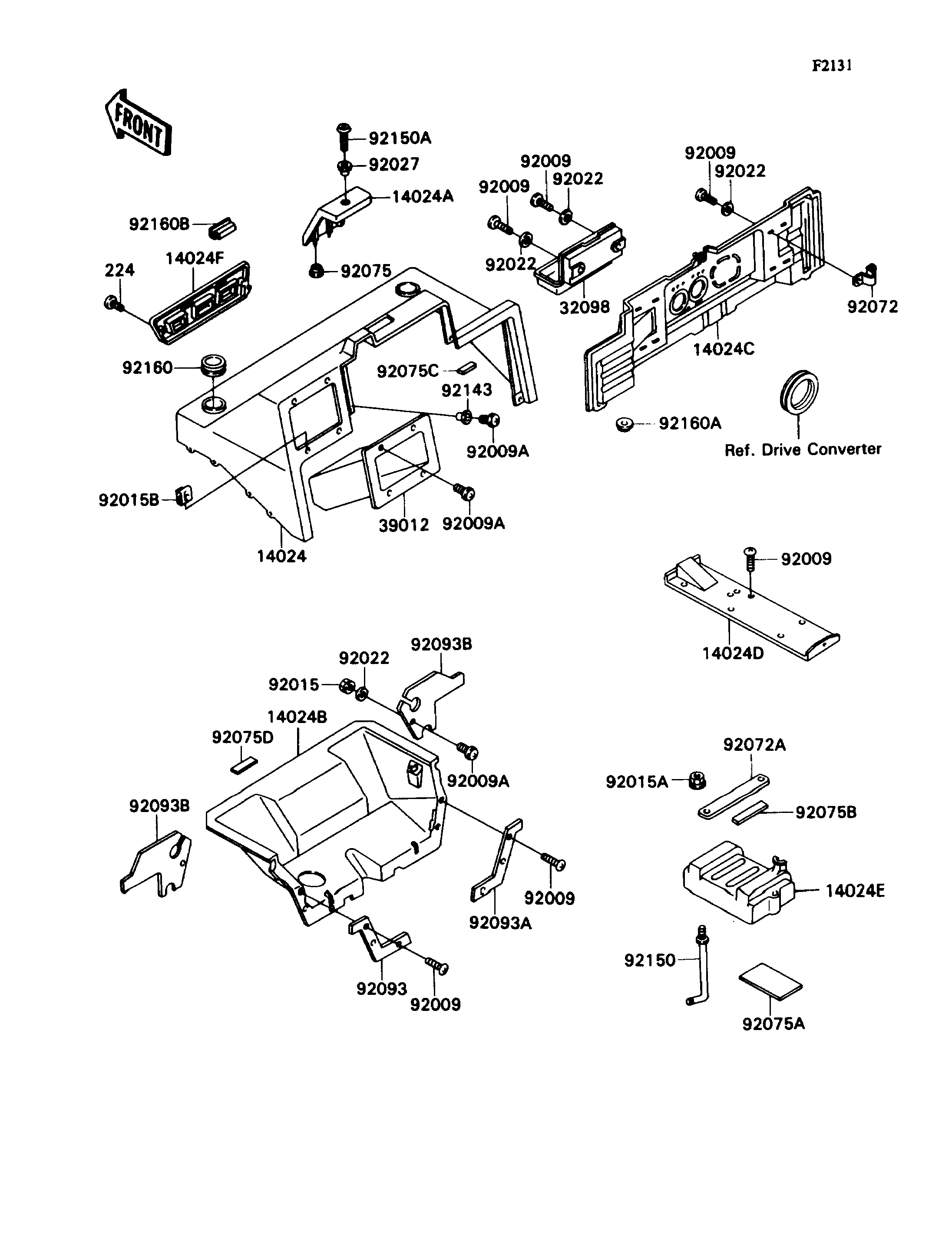

Mule 2030 - Frame Fitting(Cover)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,UPP,F.RED 14024 14024-1787-B1 1
COVER,MAINTENANCE,F.RED 14024A 14024-1788-B1 1
COVER,LWR 14024B 14024-1789 1
COVER,SEAT UNDER 14024C 14024-1790 1
COVER,FLOOR,CNT 14024D 14024-1791 1
COVER,BATTERY 14024E 14024-1792 1
COVER,FRONT GRILL,F.RED 14024F 14024-1816-B1 1
CASE-TOOL 32098 32098-1052 1
CASE-STORAGE 39012 39012-1053 1
SCREW 92009 92009-1166 23
SCREW,6X18,BLACK 92009A 92009-1181 8
NUT,FLANGED,6MM 92015 92015-1386 2
NUT,8MM 92015A 92015-1406 2
NUT,CLAMP,6MM 92015B 92015-1678 7
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 13
COLLAR,L=14.1 92027 92027-1920 1
BAND 92072 92072-1252 4
BAND,BATTERY 92072A 92072-1255 1
DAMPER 92075 92075-1067 2
DAMPER 92075A 92075-1076 1
DAMPER 92075B 92075-1214 1
DAMPER,INTAKE SILENCER COVER 92075C 92075-1658 8
DAMPER,BATTERY BAND 92075D 92075-1903 4
SEAL,FRONT FENDER,LH 92093 92093-1293 1
SEAL,FRONT FENDER,RH 92093A 92093-1294 1
SEAL,LOWER COVER 92093B 92093-1295 2
COLLAR,L=5 92143 92143-1087 2
BOLT,BATTERY 92150 92150-1293 2
BOLT,6X25 92150A 92150-1360 1
DAMPER 92160 92160-1142 2
DAMPER 92160A 92160-1148 2
DAMPER 92160B 92160-1160 2
SCREW-PAN-WP-CROS 224 224C0630 2
